<< D >> Engine Assembly Supporting

Set the special tool to the vehicle to support the engine assembly as shown in illustration.

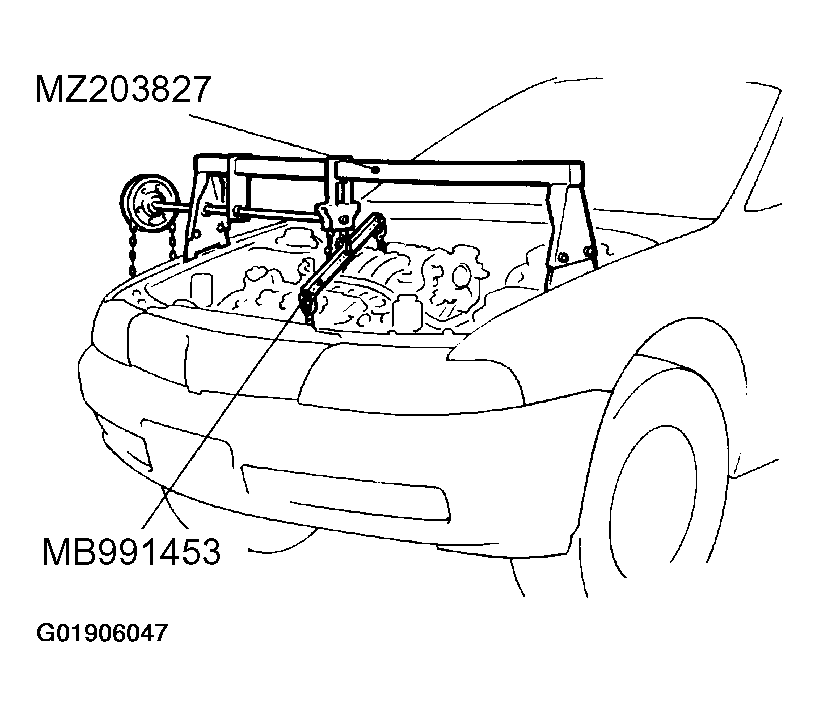

Fig 1: Setting Special Tool To Vehicle For Supporting Engine Assembly
G01906047Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
