Removal And Installation

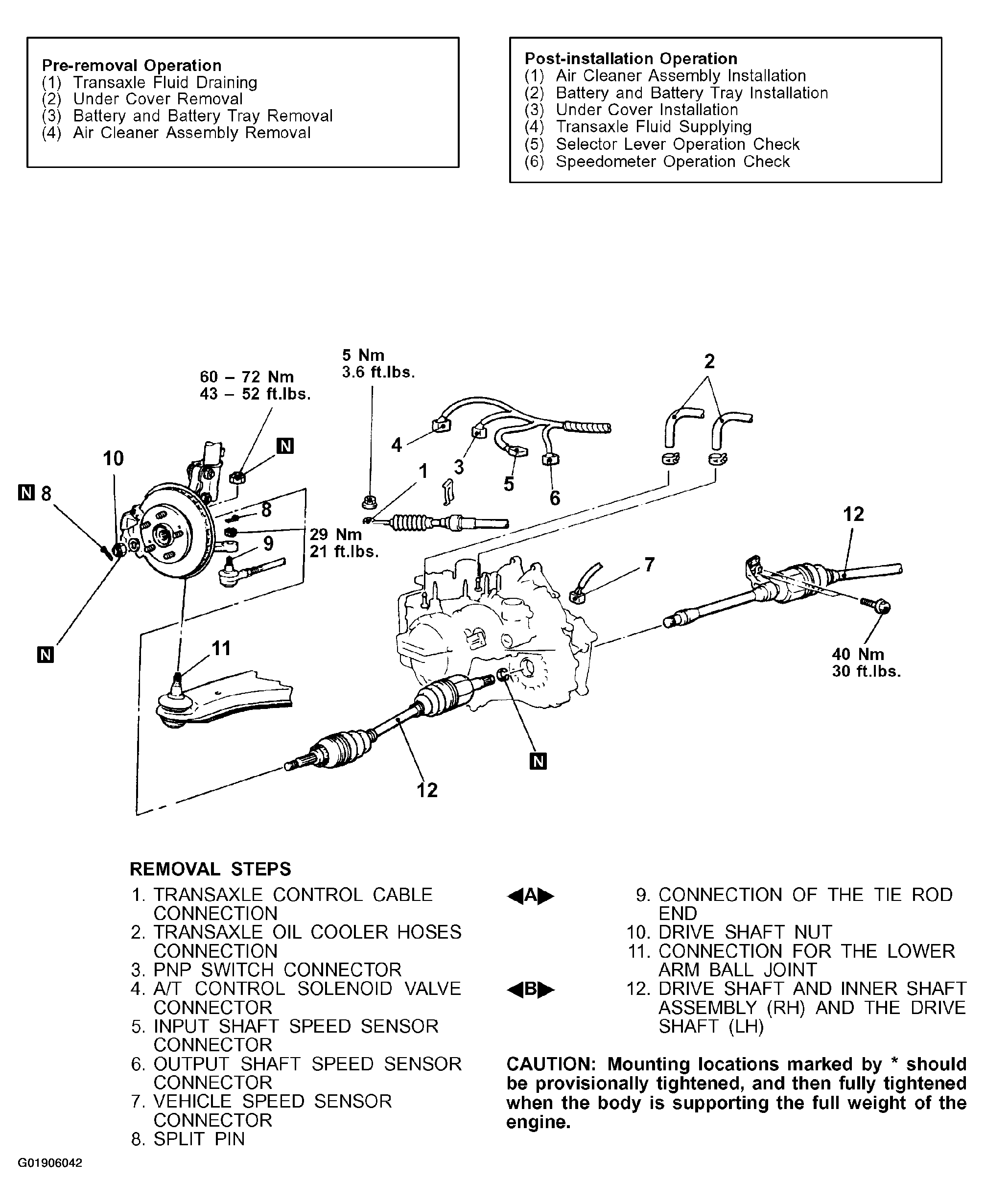

Fig 1: Removal And Installation Procedures And Torque Specifications Of Transaxle Assembly (1 Of 2)
G01906042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

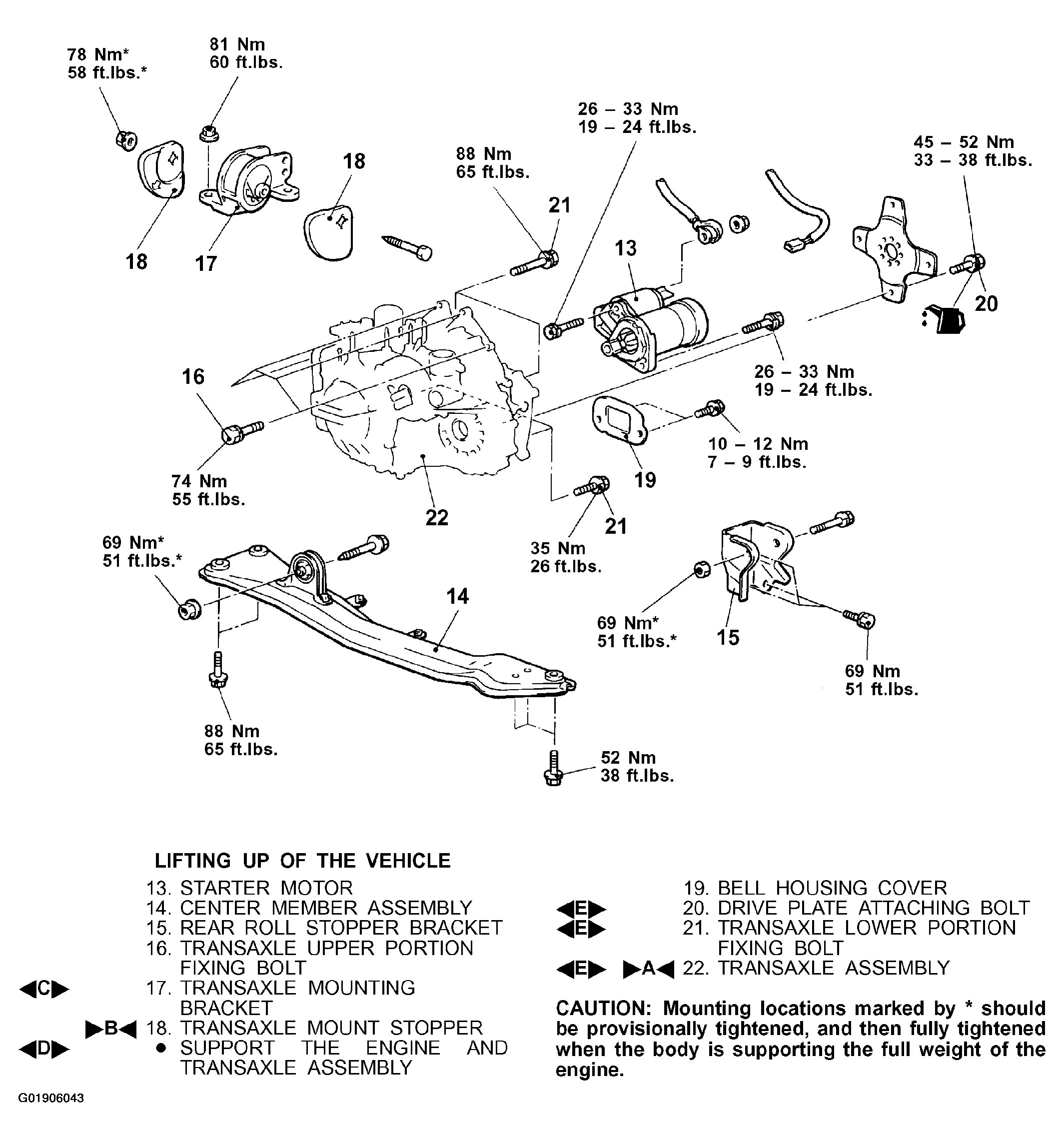

Fig 2: Removal And Installation Procedures And Torque Specifications Of Transaxle Assembly (2 Of 2)
G01906043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
