Shift Lock Mechanism Check

Carry out the following inspections shown in illustration.

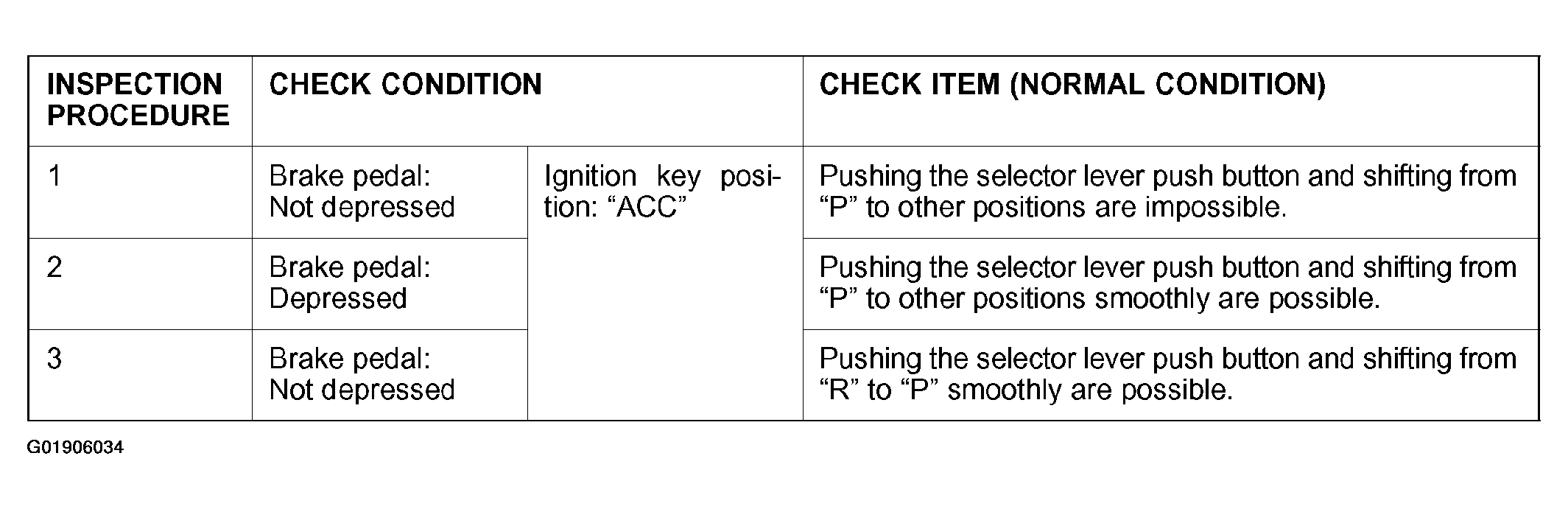

Fig 1: Identifying Shift Lock Mechanism Inspection Procedures
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the above operations are defective, adjust the shift lock cable as follows:
1. Remove the front floor console.
2. Shift selector lever to "P".
3. Loosen the locking nut of shift lock cable.
4. Tighten the locking nut so that the end of the shift lock cable comes above the red marking of the lock cam, shown in illustration.
5. Install the front floor console.

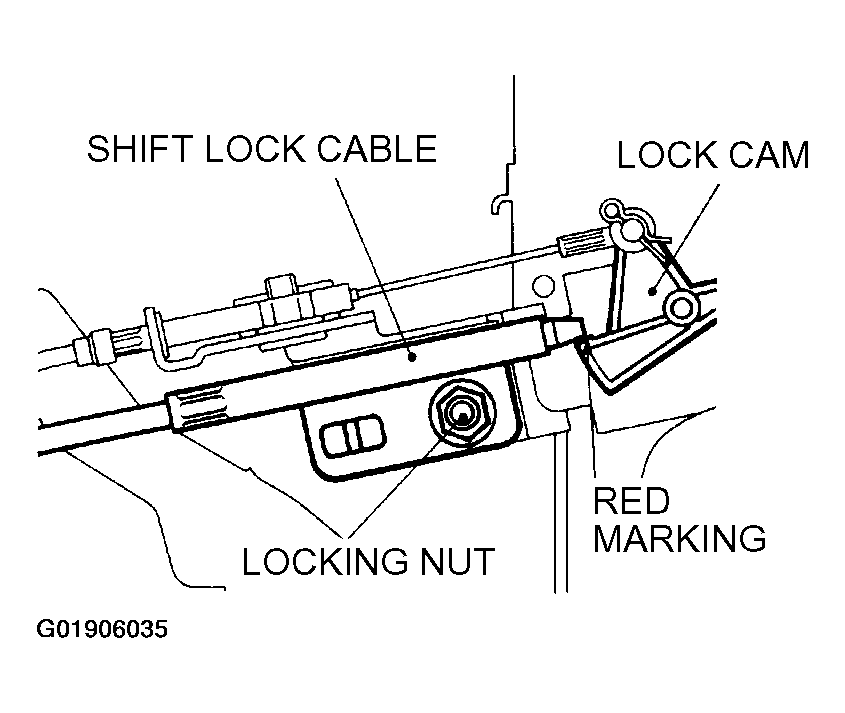

Fig 2: Identifying Red Marking Of Lock Cam
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
