Park/Neutral Position Switch And Control Cable Adjustment
- Set the selector lever to the "N" position.

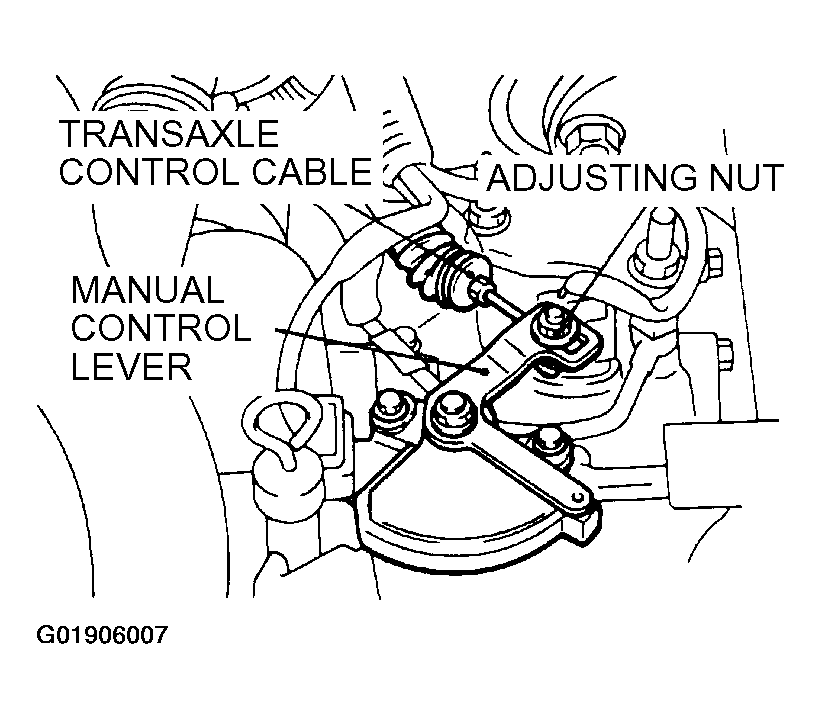

- Loosen the control cable to manual control lever coupling nut to free the cable and lever.
- Set the manual control lever to the neutral position.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

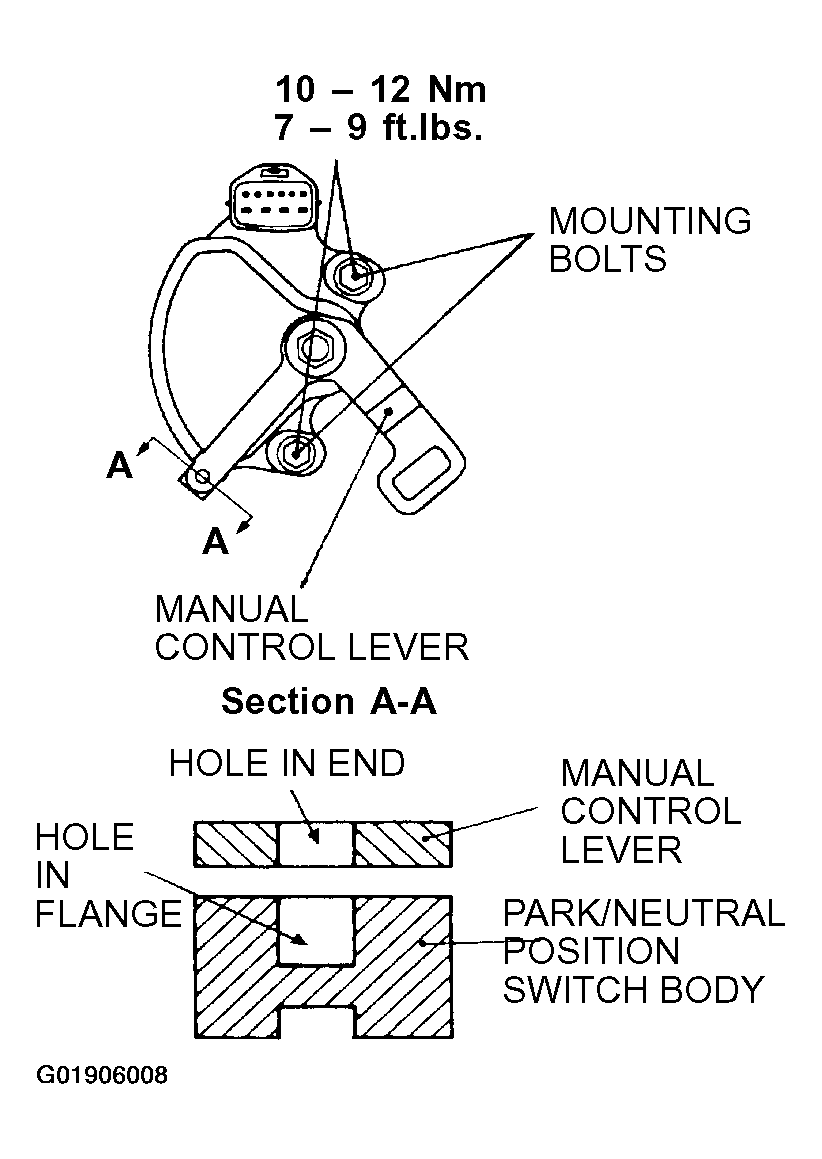

- Loosen the park/neutral position switch body mounting bolts and turn the park/neutral position switch body so the hole in the end of the manual control lever and the hole (cross section A-A in the illustration on the left) in the flange of the park/neutral position switch body flange are aligned.
- Tighten the park/neutral position switch body mounting bolts to the specified torque. Be careful at this time that the position of the switch body is not changed.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

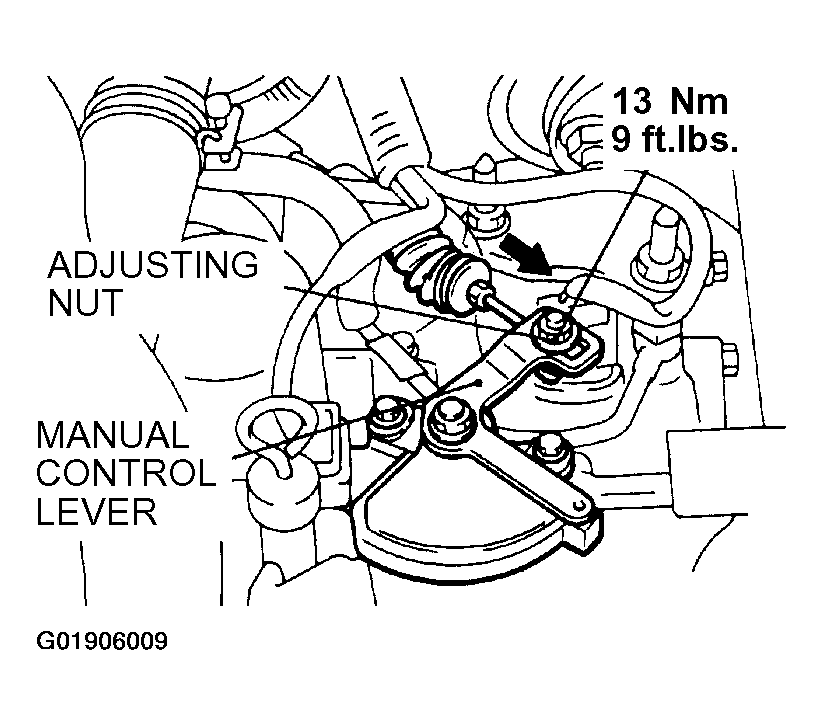

- Gently pull the transaxle control cable in the direction of the arrow shown in illustration, and then tighten the adjusting nut.
- Check that the selector lever is in the "N" position.
- Check that each range on the transaxle side operates and functions correctly for each position of the selector lever.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
