Key Interlock Mechanism Check

Carry out the following inspection procedures shown in illustration.

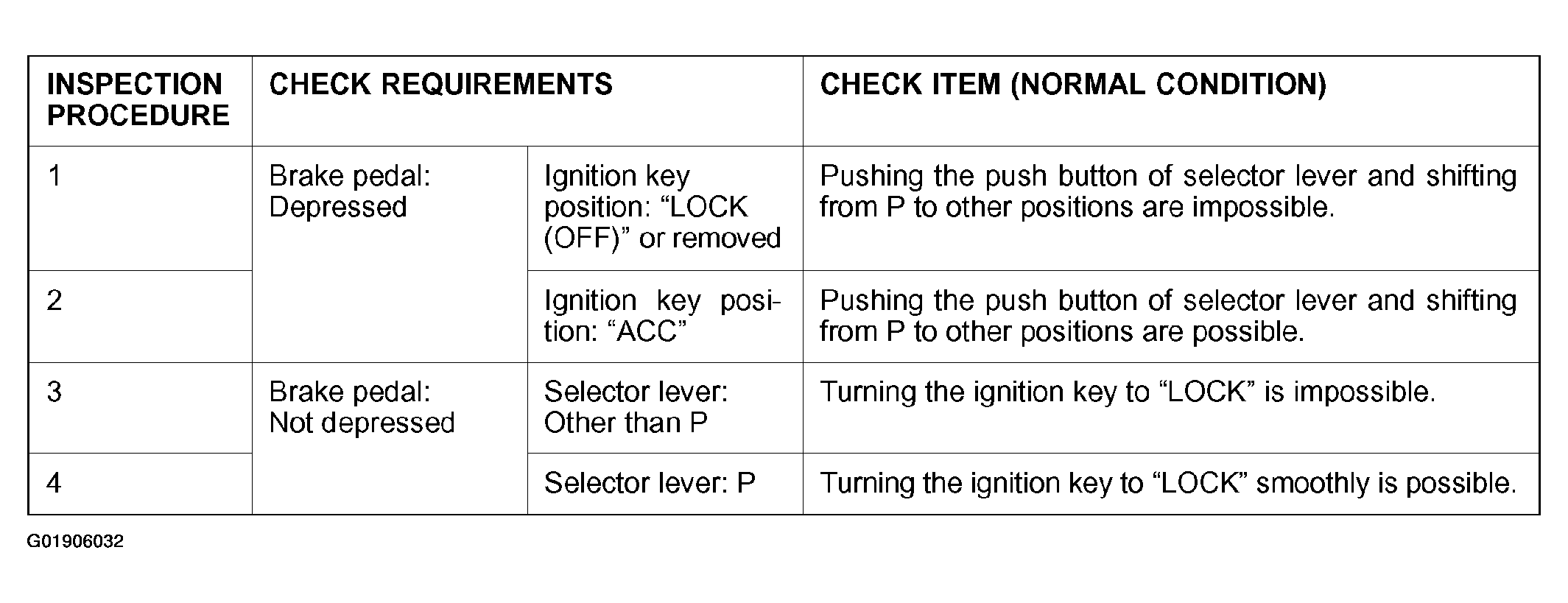

Fig 1: Identifying Key Interlock Mechanism Inspection Procedures
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the above operations are defective, adjust the key interlock cable in following procedure.
1. Remove the front floor console.
2. Shift selector lever to "P".
3. Turn the ignition key to "LOCK".
4. Loosen the locking nut of the key interlock cable.
5. Push the cable joint on the lock cam gently toward the arrow, and tighten the locking nut.
6. Install the front floor console.

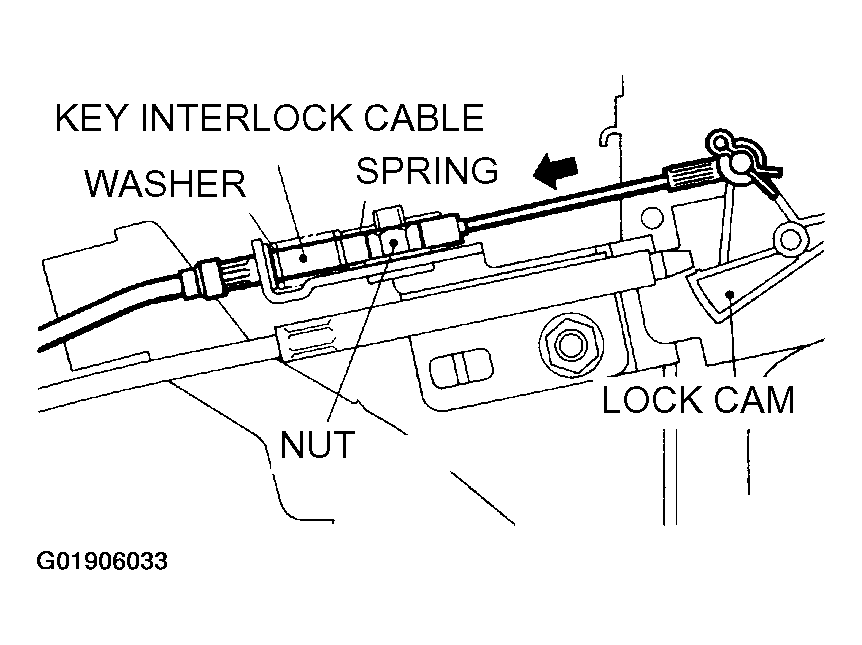

Fig 2: Identifying Direction For Pushing Cable Joint On Lock Cam
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
