A/T Control Component Locations

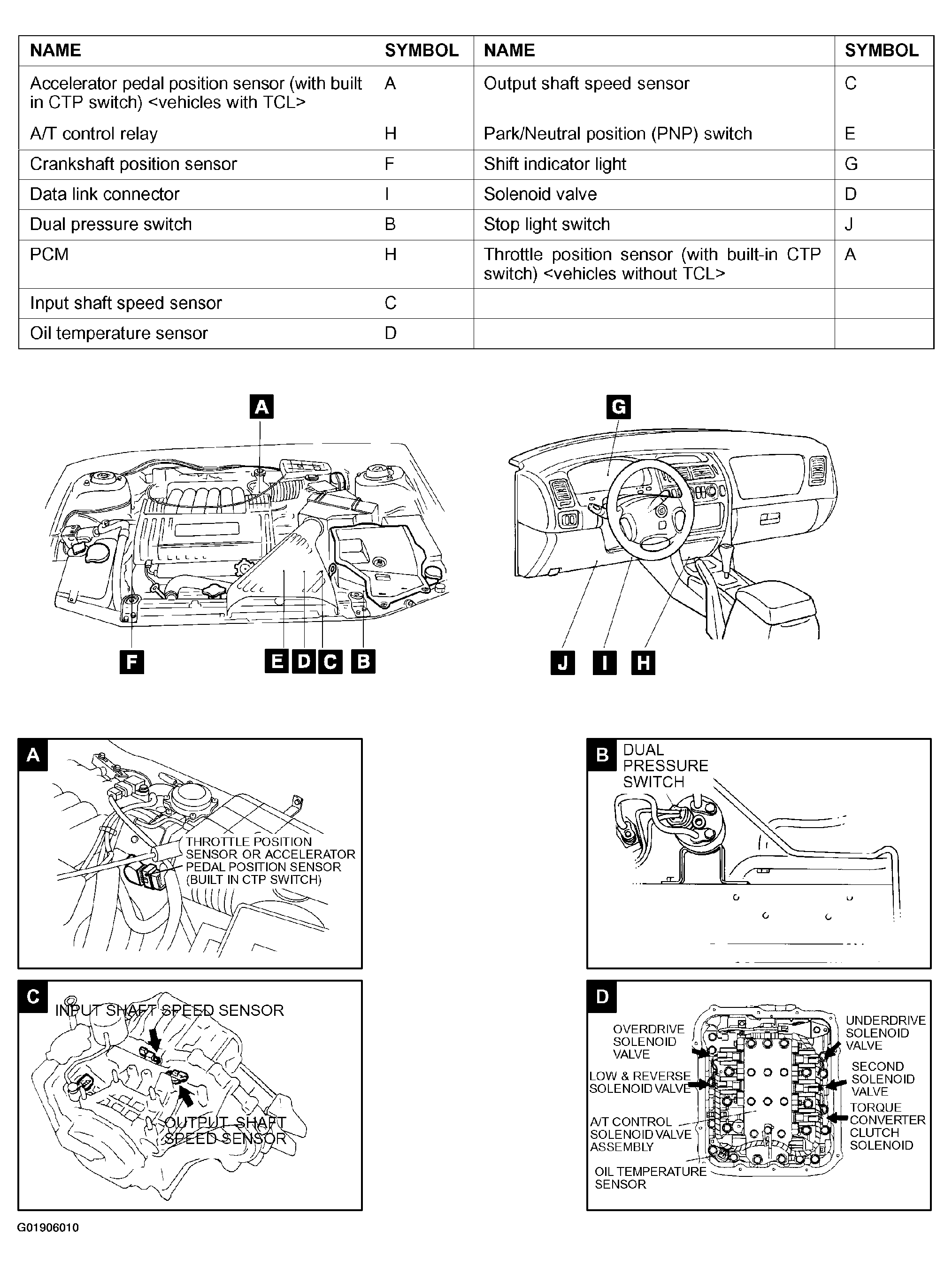

Fig 1: Identifying A/T Control Component Locations (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

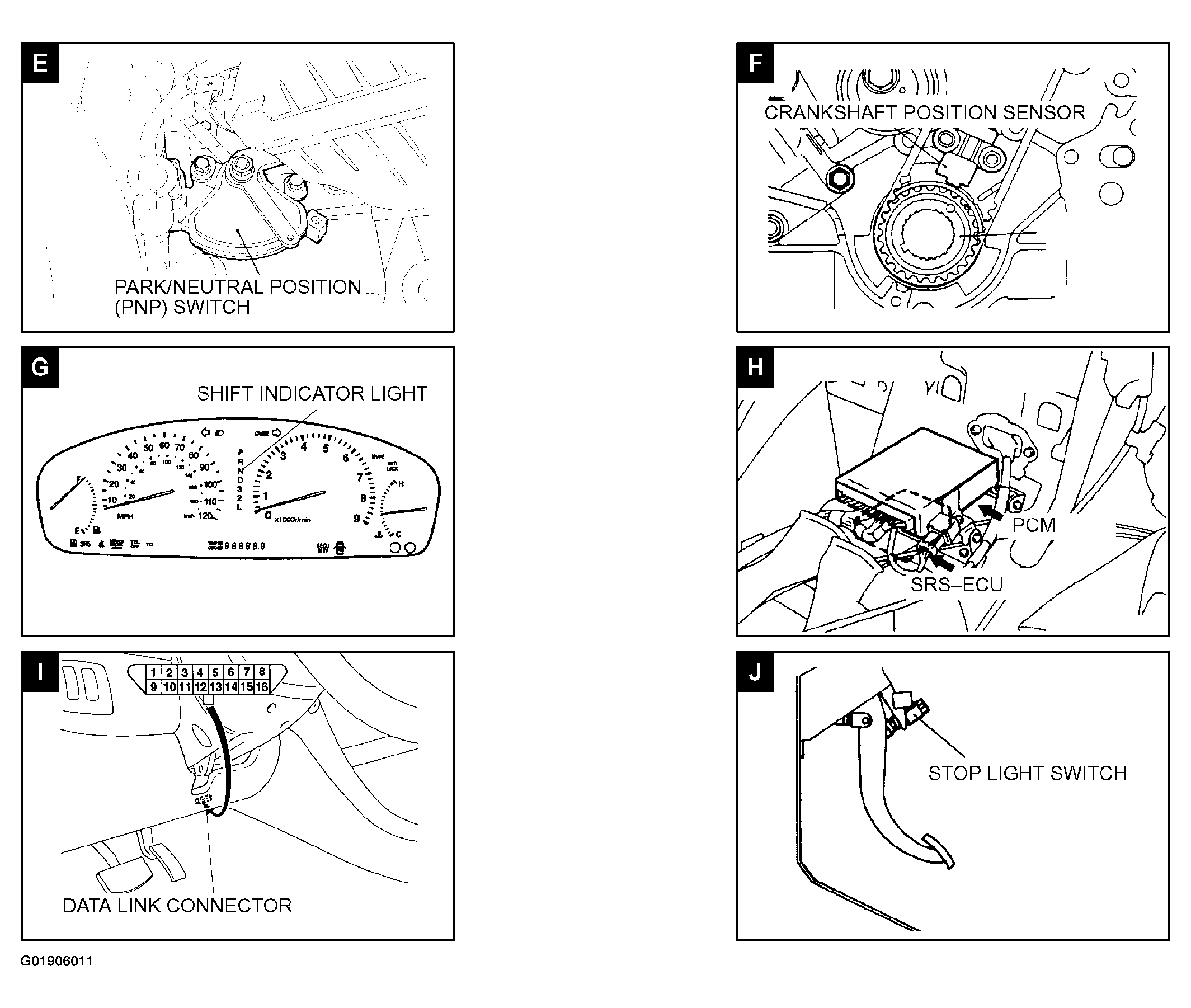

Fig 2: Identifying A/T Control Component Locations (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
