Solenoid Valve Check

  1. Remove the valve body cover.
  2. Disconnect the connectors of each solenoid valve.

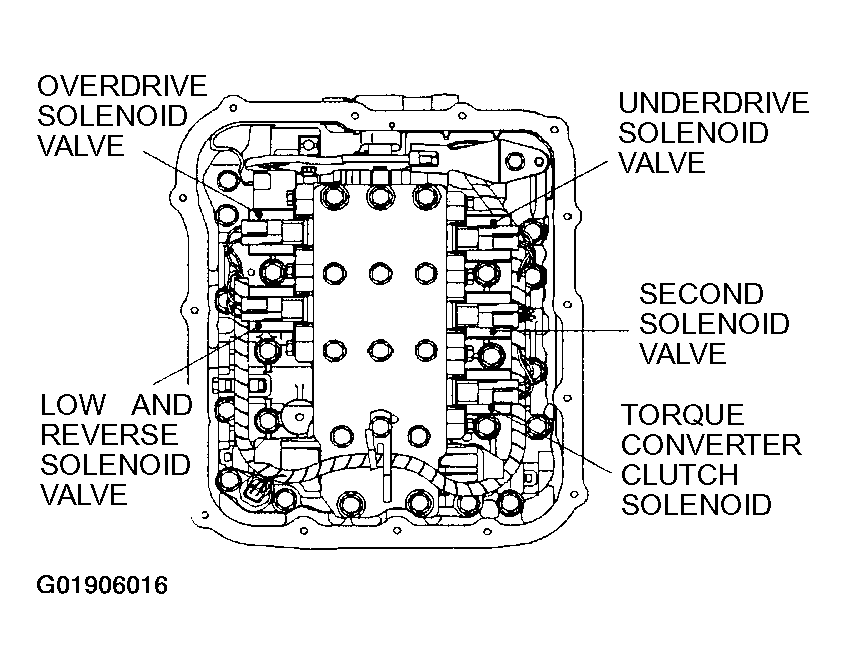

    Fig 1: Identifying Solenoid Valve Connectors
    G01906016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Measure the resistance between terminals 1 and 2 of each solenoid valve.

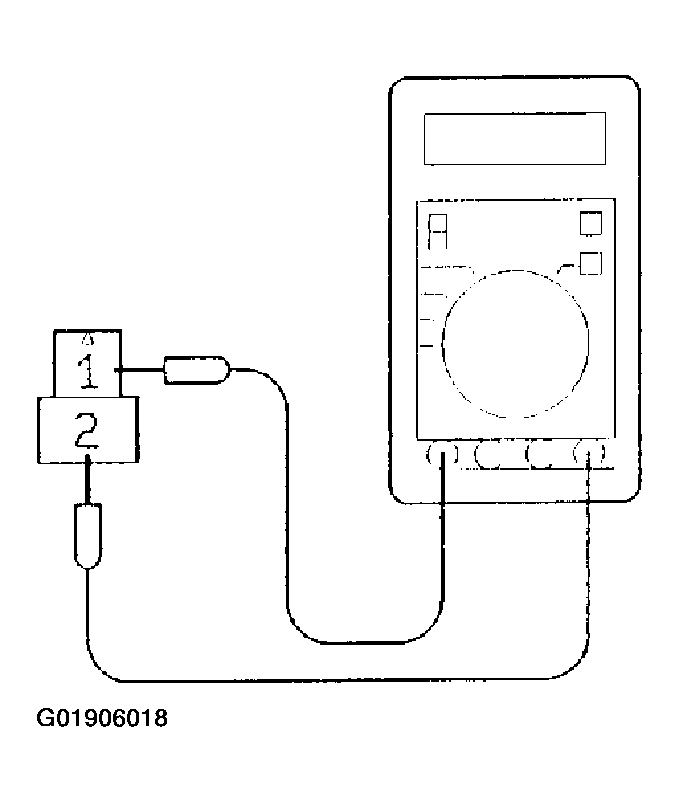

    Fig 2: Identifying Solenoid Valve Terminals
    G01906018Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

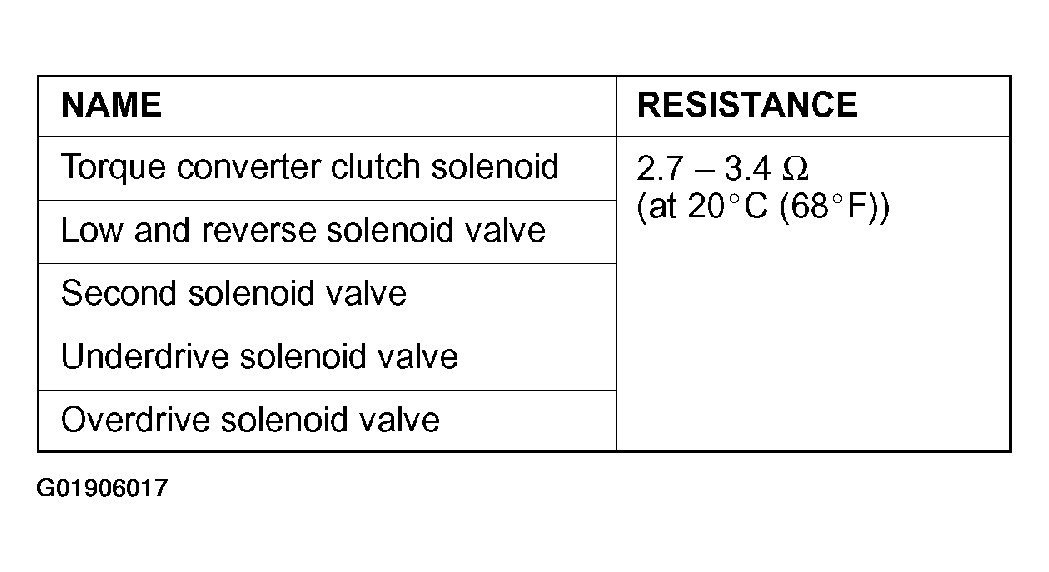

    Fig 3: Identifying Solenoid Valve Resistance
    G01906017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If the resistance is not within the standard value, replace the solenoid valve.
