Oil Temperature Sensor Check

  1. Remove the oil temperature sensor.
  2. Measure the resistance between terminals No. 1 and No. 2 of the oil temperature sensor connector.

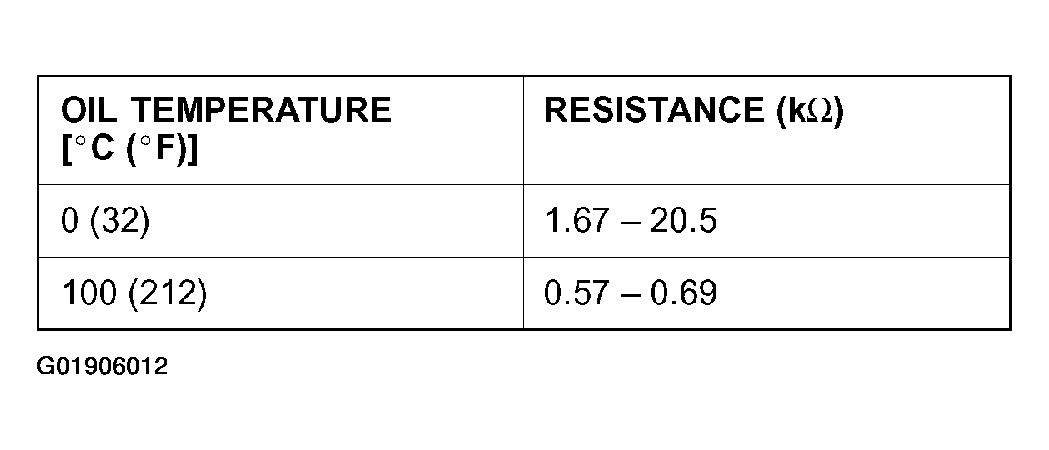

    Fig 1: Identifying Oil Temperature Sensor Resistance
    G01906012Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

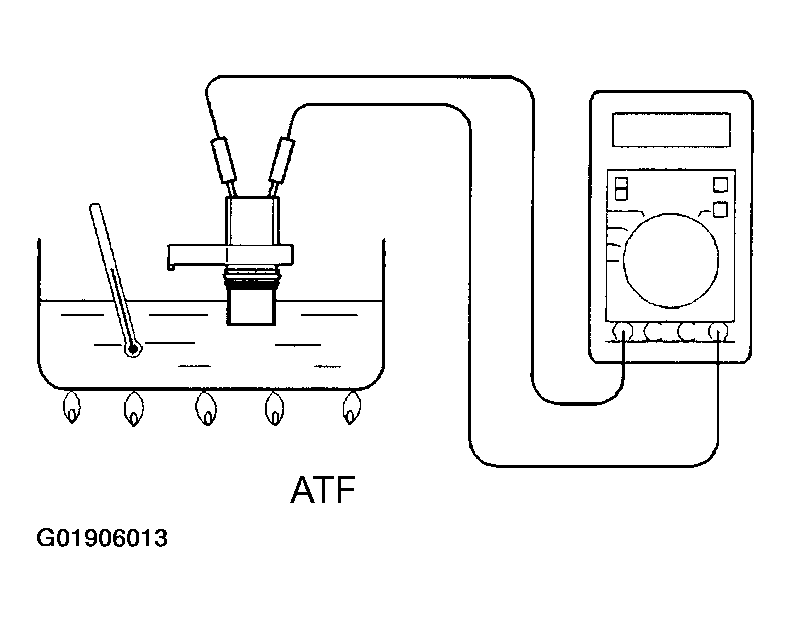

    Fig 2: Checking Oil Temperature Sensor
    G01906013Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Replace the sensor if not within the standard value.
