A/T Control Relay Check

  1. Remove the A/T control relay.
  2. Use jumper wires to connect the A/T control relay terminal (2) to the battery (-) terminal and terminal (4) to the battery (+) terminal.
  3. Check the continuity between the terminal (1) and the terminal (3) of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

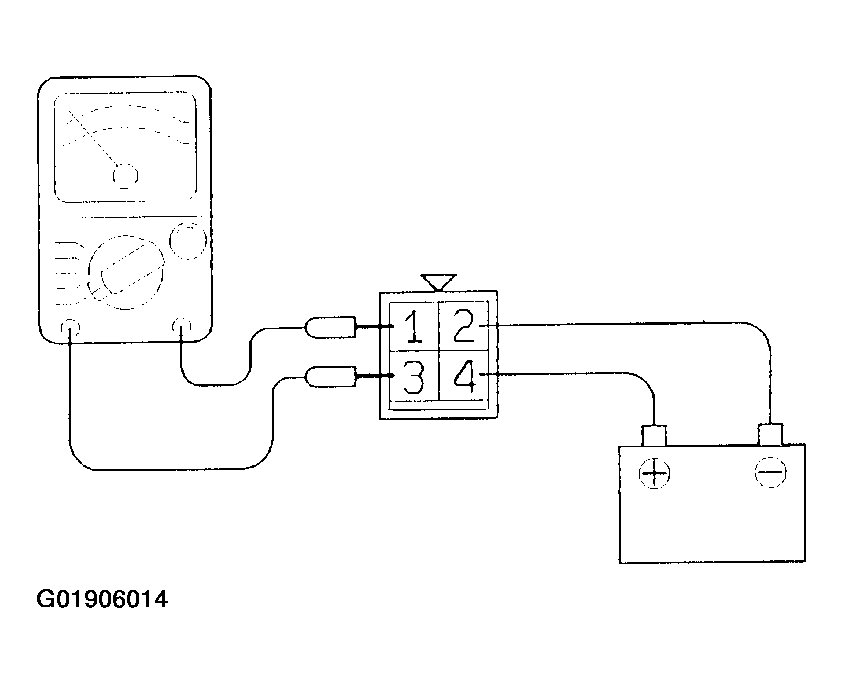

    Fig 1: Identifying A/T Control Relay Terminals
    G01906014Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

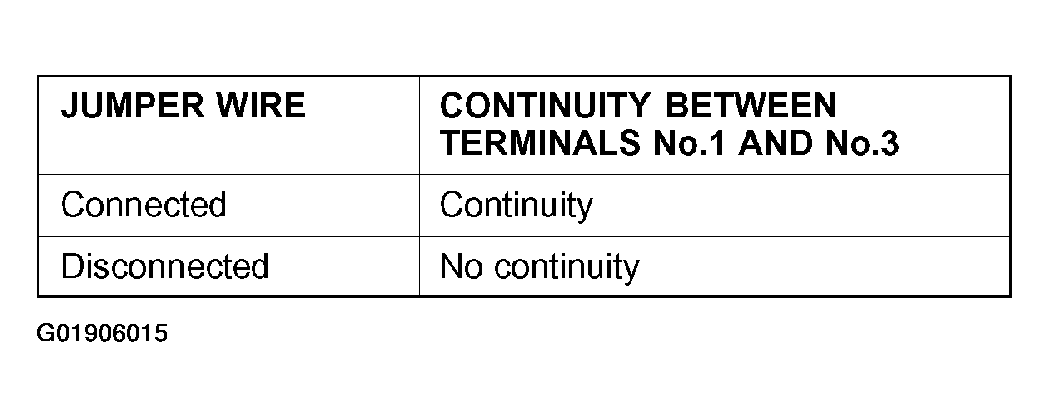

    Fig 2: Checking A/T Control Relay Continuity
    G01906015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is a problem, replace the A/T control relay.
