Keyless Entry System
>>
Diagnosis
>>
Inspection Procedure 1
Inspection Procedure 1

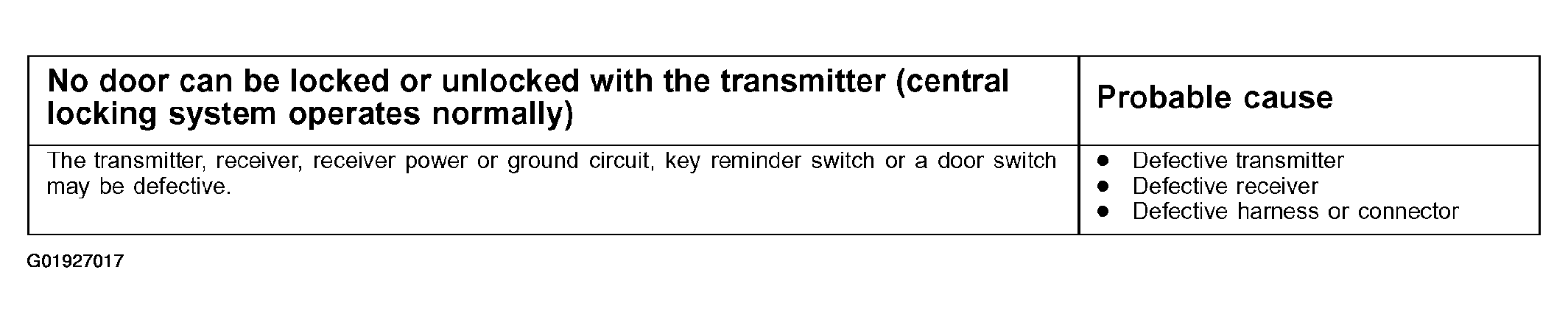

Fig 1: Inspection Procedure 1 Probable Causes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

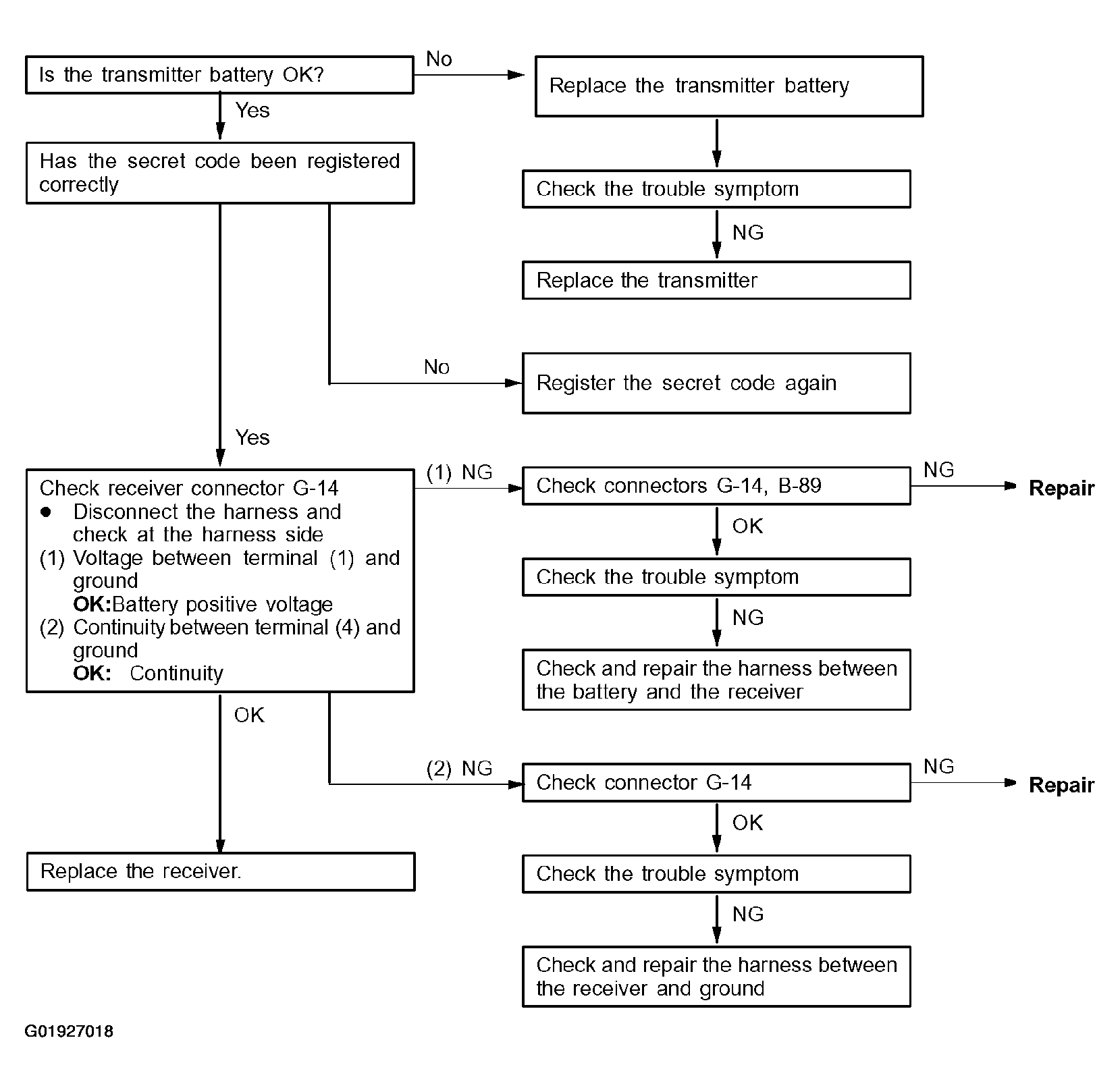

Fig 2: Inspection Procedure 1 Flow Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
