Disassembly And Reassembly: Notes

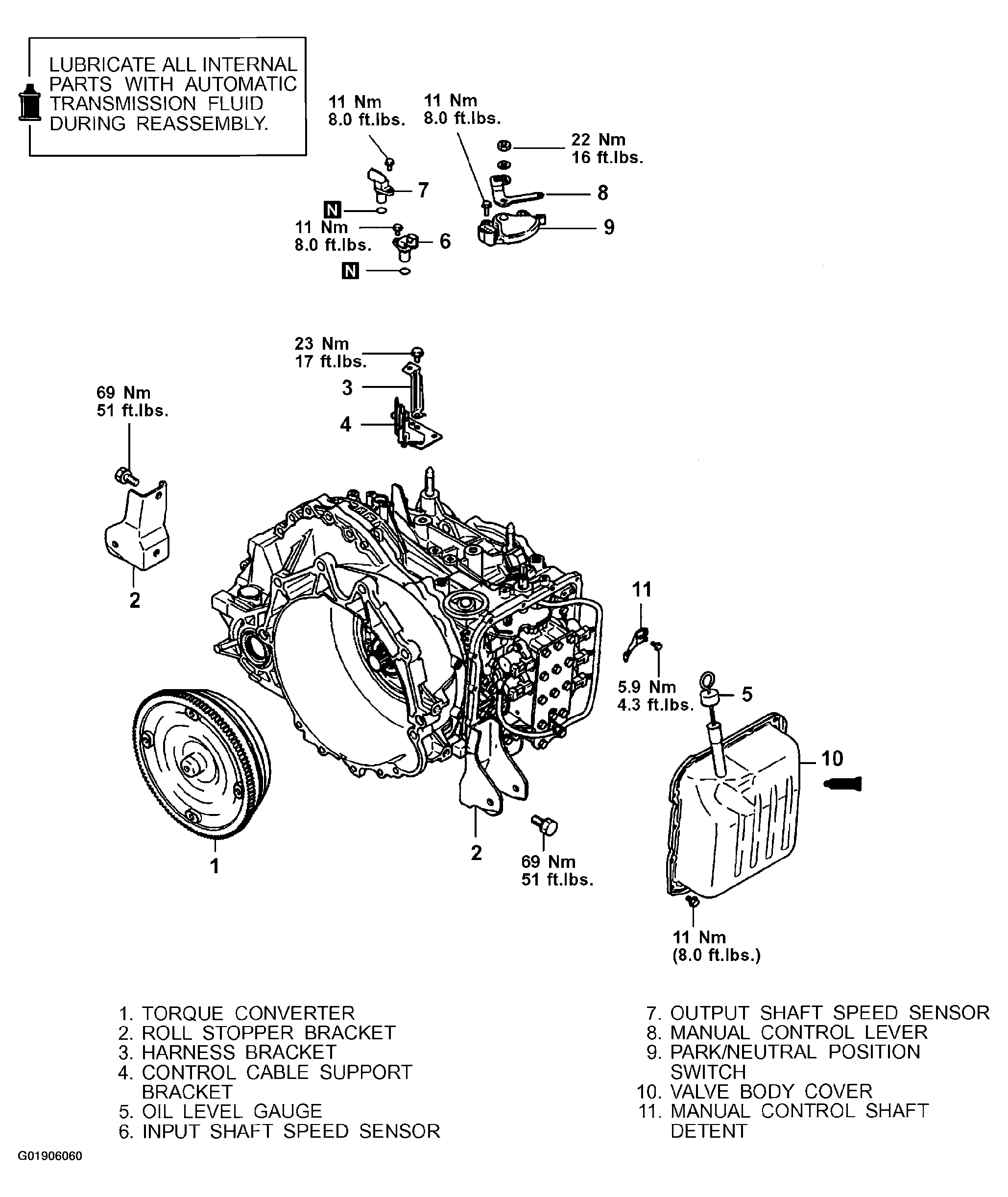

Fig 1: Exploded View And Torque Specifications Of Transaxle (1 Of 4)
G01906060Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

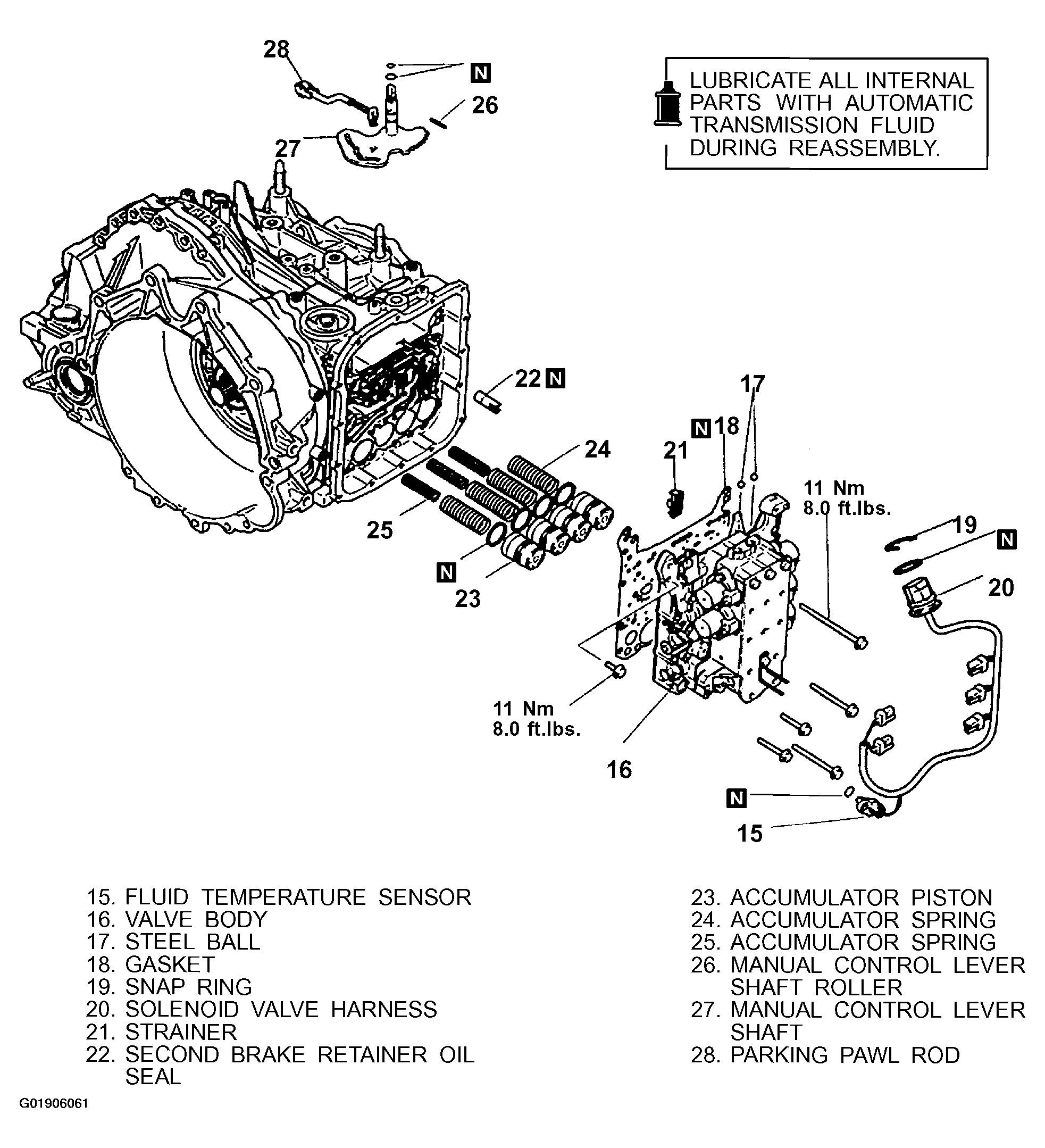

Fig 2: Exploded View And Torque Specifications Of Transaxle (2 Of 4)
G01906061Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

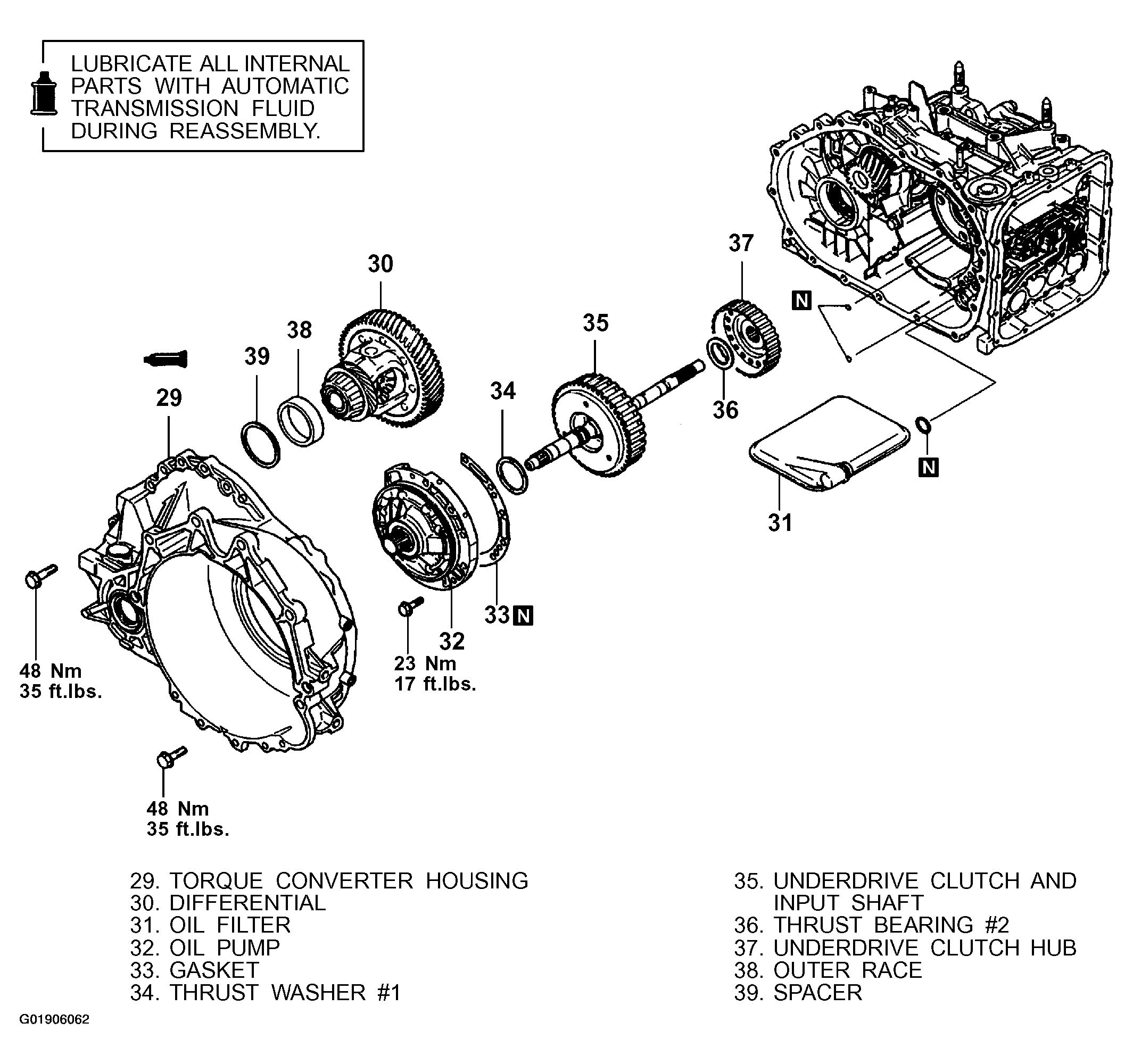

Fig 3: Exploded View And Torque Specifications Of Transaxle (3 Of 4)
G01906062Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
