Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

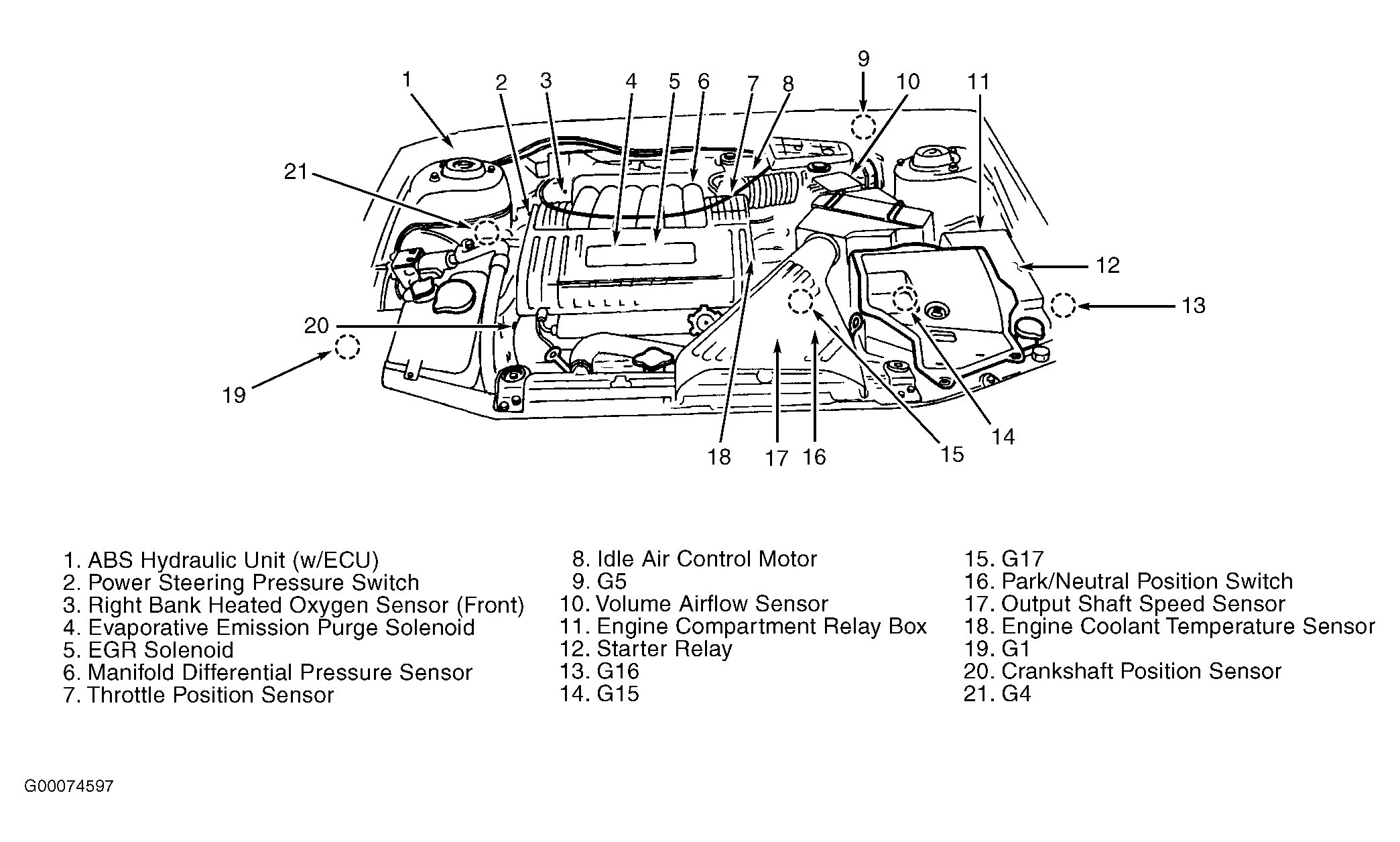

Engine Compartment Relay Box On left front fender. See Figure.

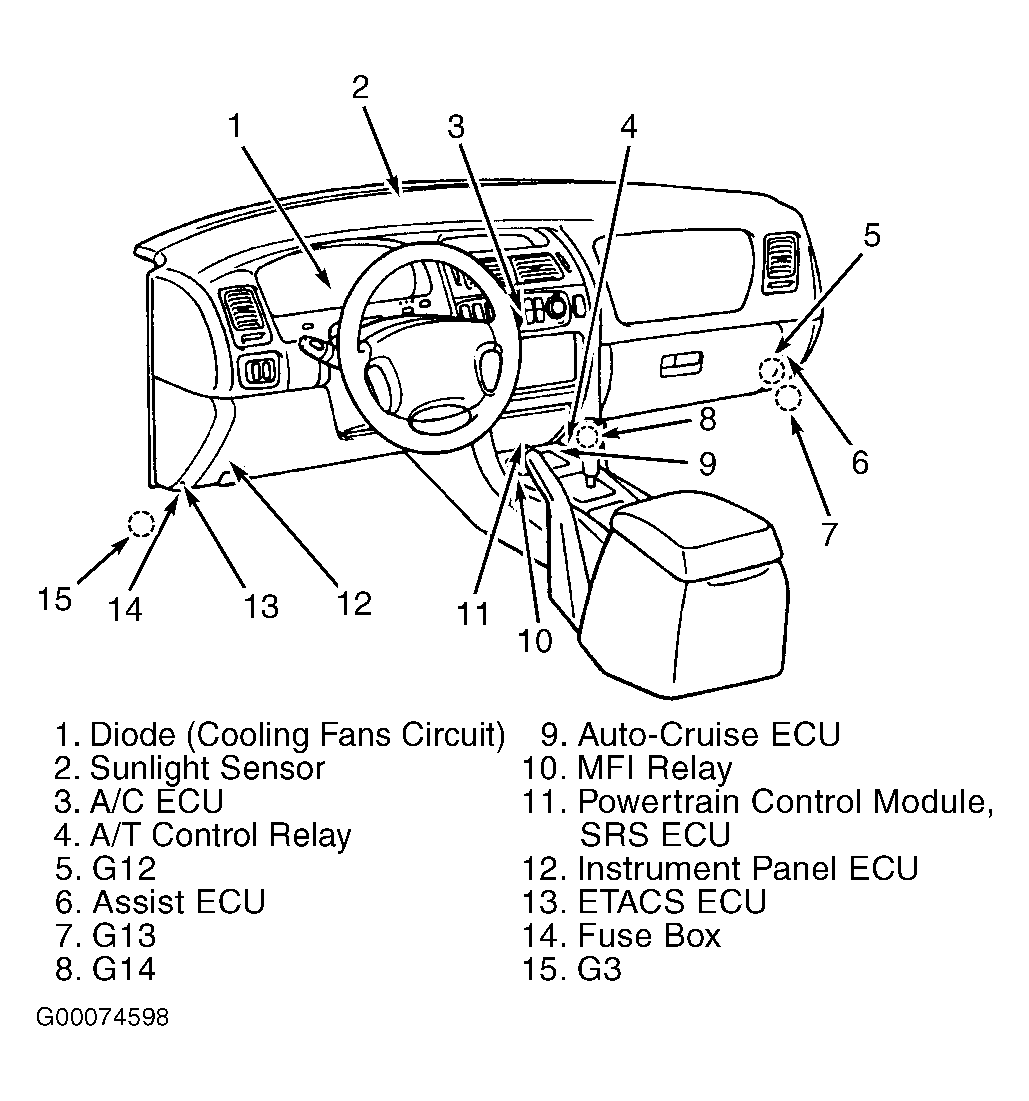

Fuse Box Behind left side of dash, next to junction block. See Figure.
Fusible Links In engine compartment relay box.
Junction Block Behind left side of dash.
