Checking The Receiver Terminals

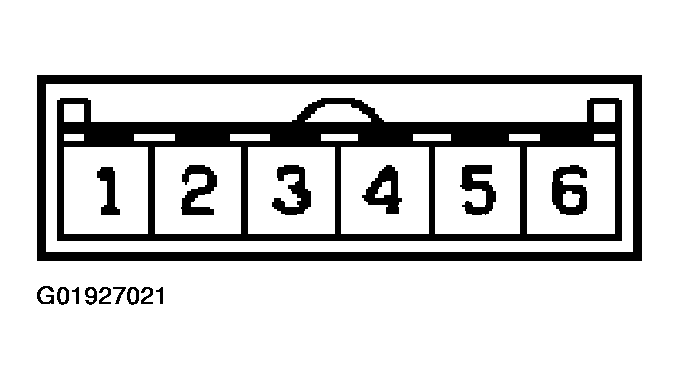

Fig 1: Identifying Receiver Terminals
G01927021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

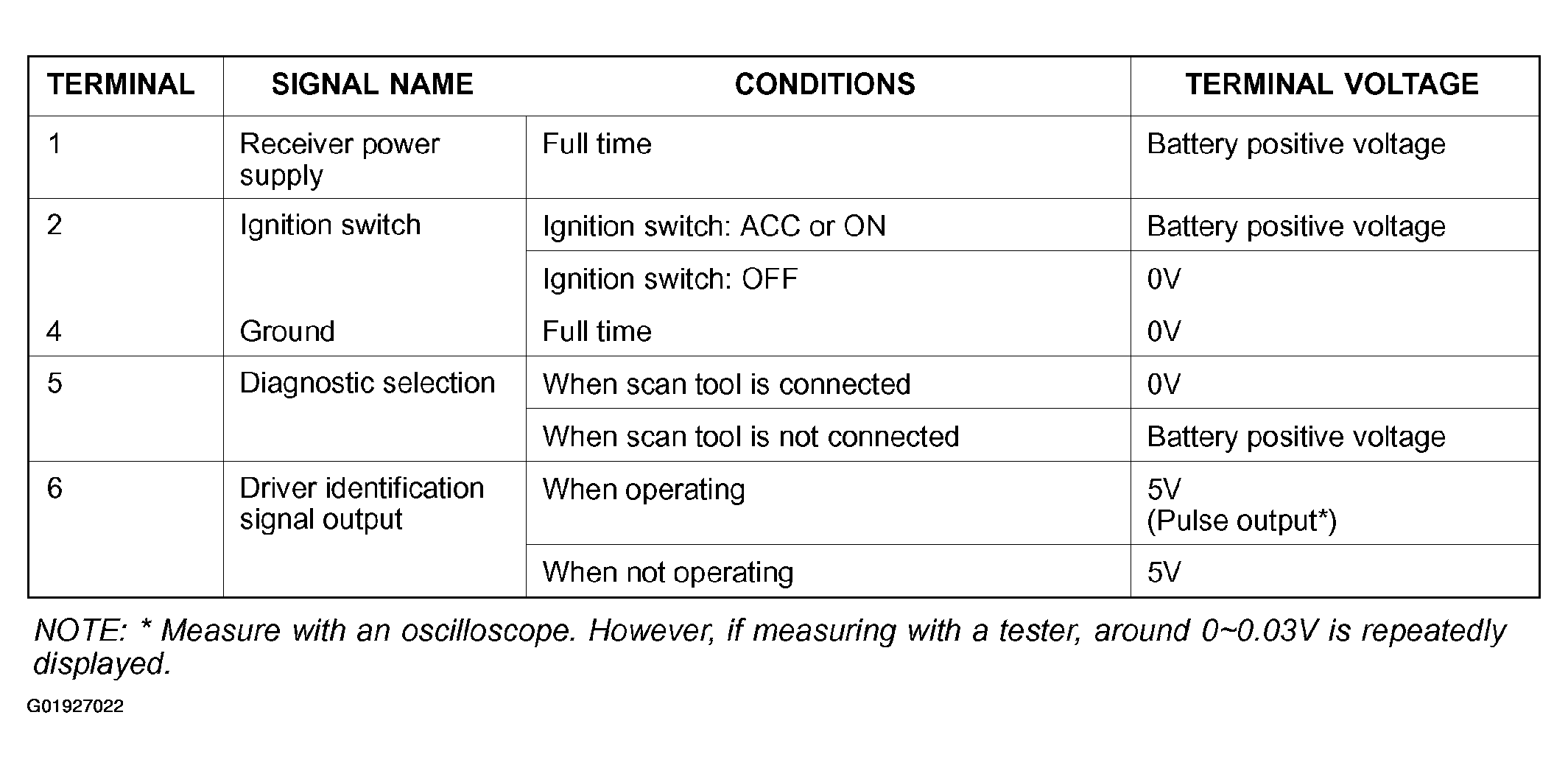

Fig 2: Receiver Terminals Condition Table
G01927022Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
