Removal And Installation: Notes

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

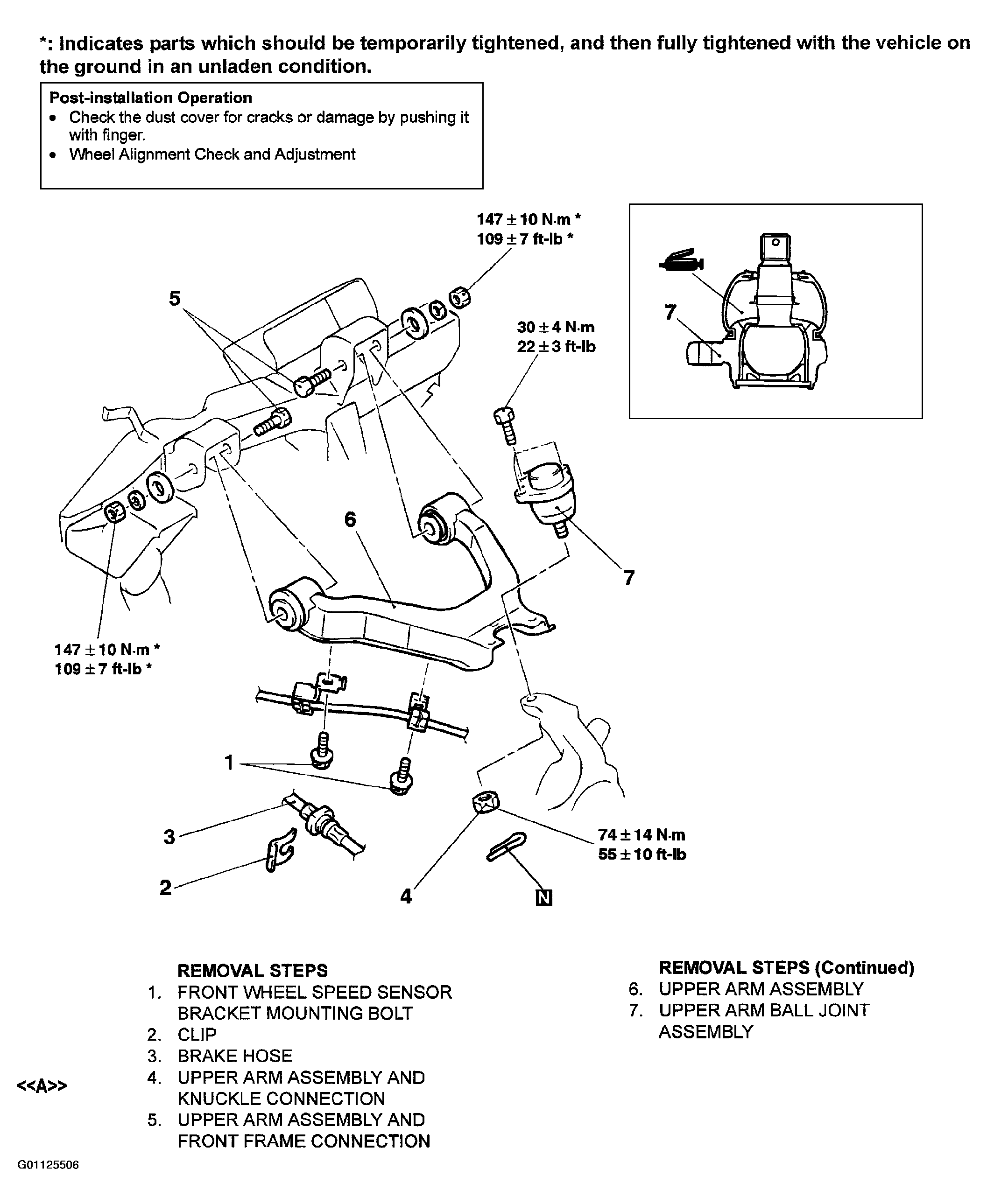

Fig 1: Exploded View Of Upper Arm Assembly
G01125506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
