Front Wheel Alignment Check And Adjustment: Toe-In

Standard value: 2.5 +/- 2.5 mm (0.1 +/- 0.1 inch)

1. Adjust the toe-in by undoing the clip and turning the left and right tie rod turnbuckles by the same amount (in opposite directions.)
   NOTE: The toe will move out as the left turnbuckle is turned toward the front of the vehicle and the right turnbuckle is turned toward the rear of the vehicle.
2. Use a turning radius gauge to check that the steering angle is at the standard value. (Refer to STEERING ANGLE CHECK ).

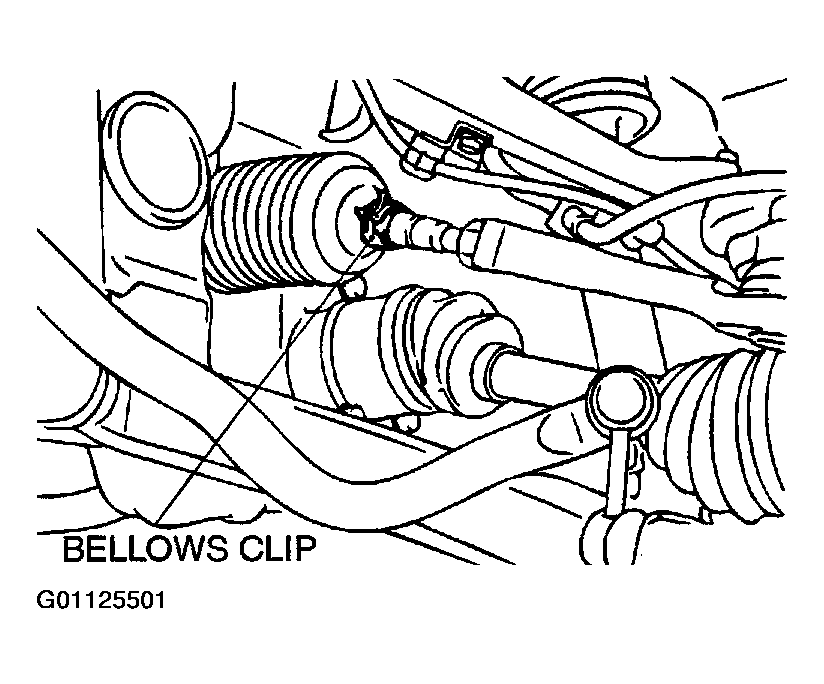

   Fig 1: Removing Bellows Clip

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
