Removal & Installation: G-Sensor

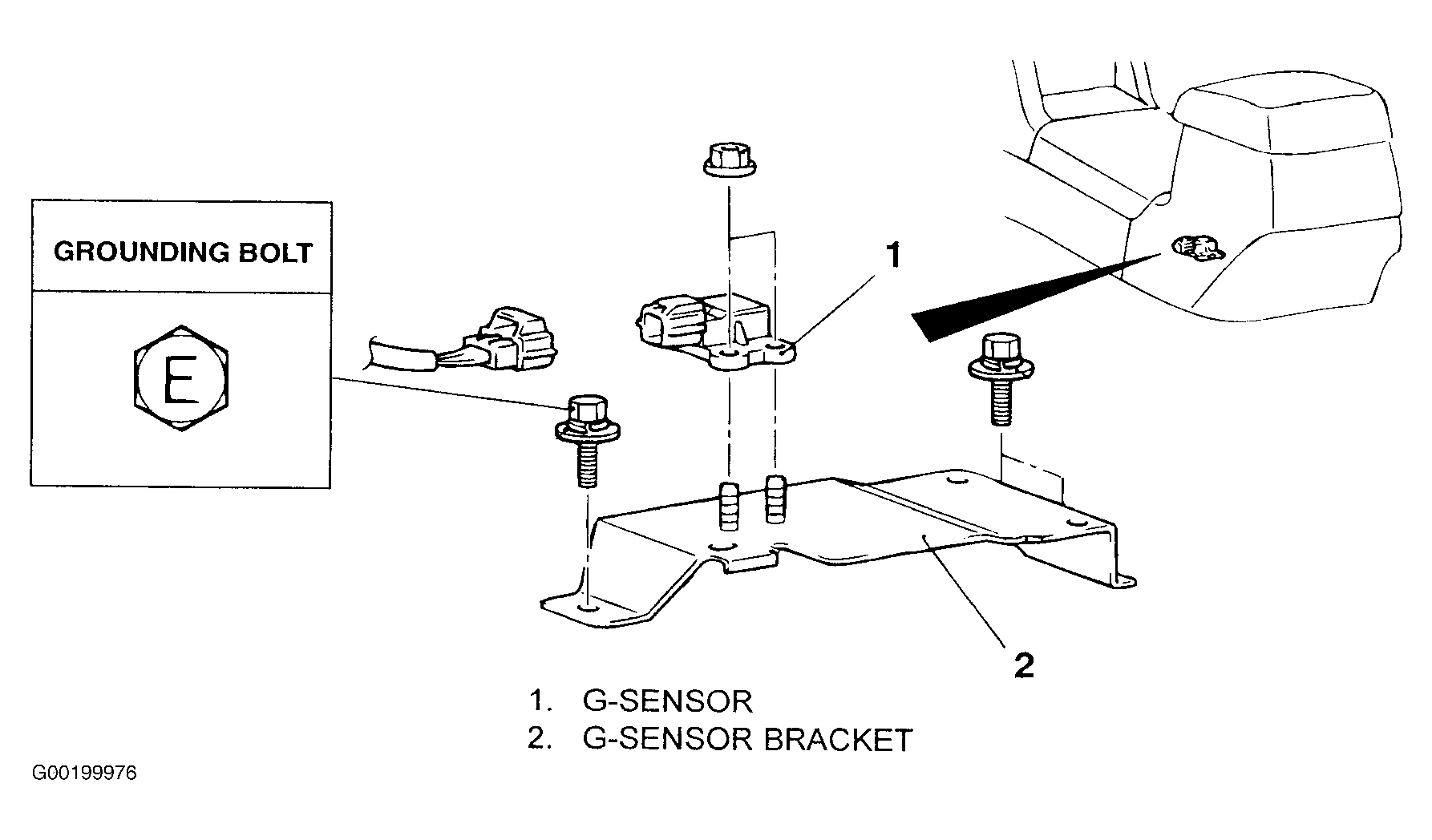

Remove center console assembly. See Figure . Disconnect G-sensor harness connector. Remove 2 retaining bolts, and remove G-sensor. See Fig 1 . Installation is reverse of removal. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS .
