LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2002
>>
Montero XLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power/Heated Seats
>>
Overhaul
>>
Seat Assembly
>>
Notes
Seat Assembly: Notes

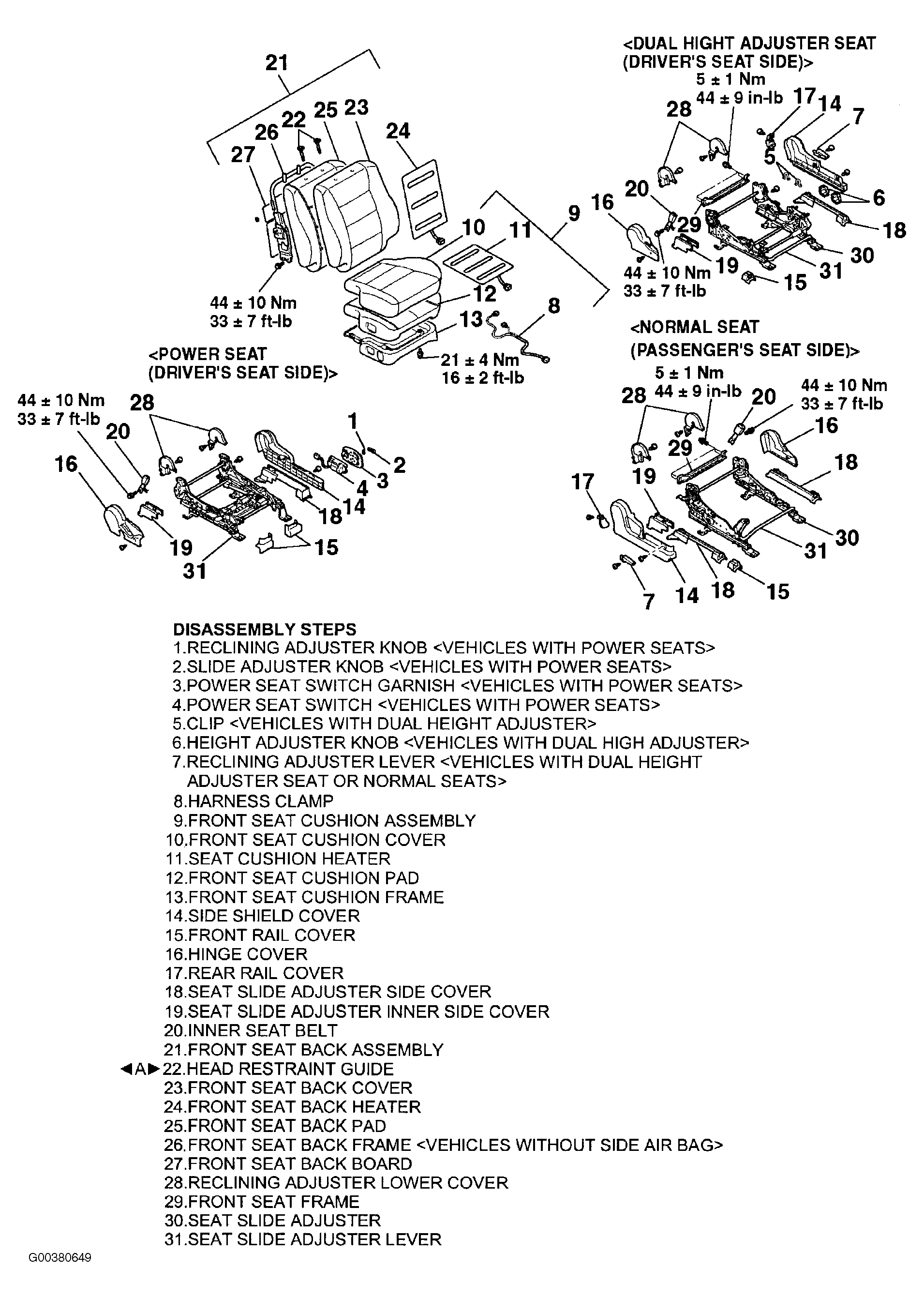

Fig 1: Disassembly & Reassembly Of Seat
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

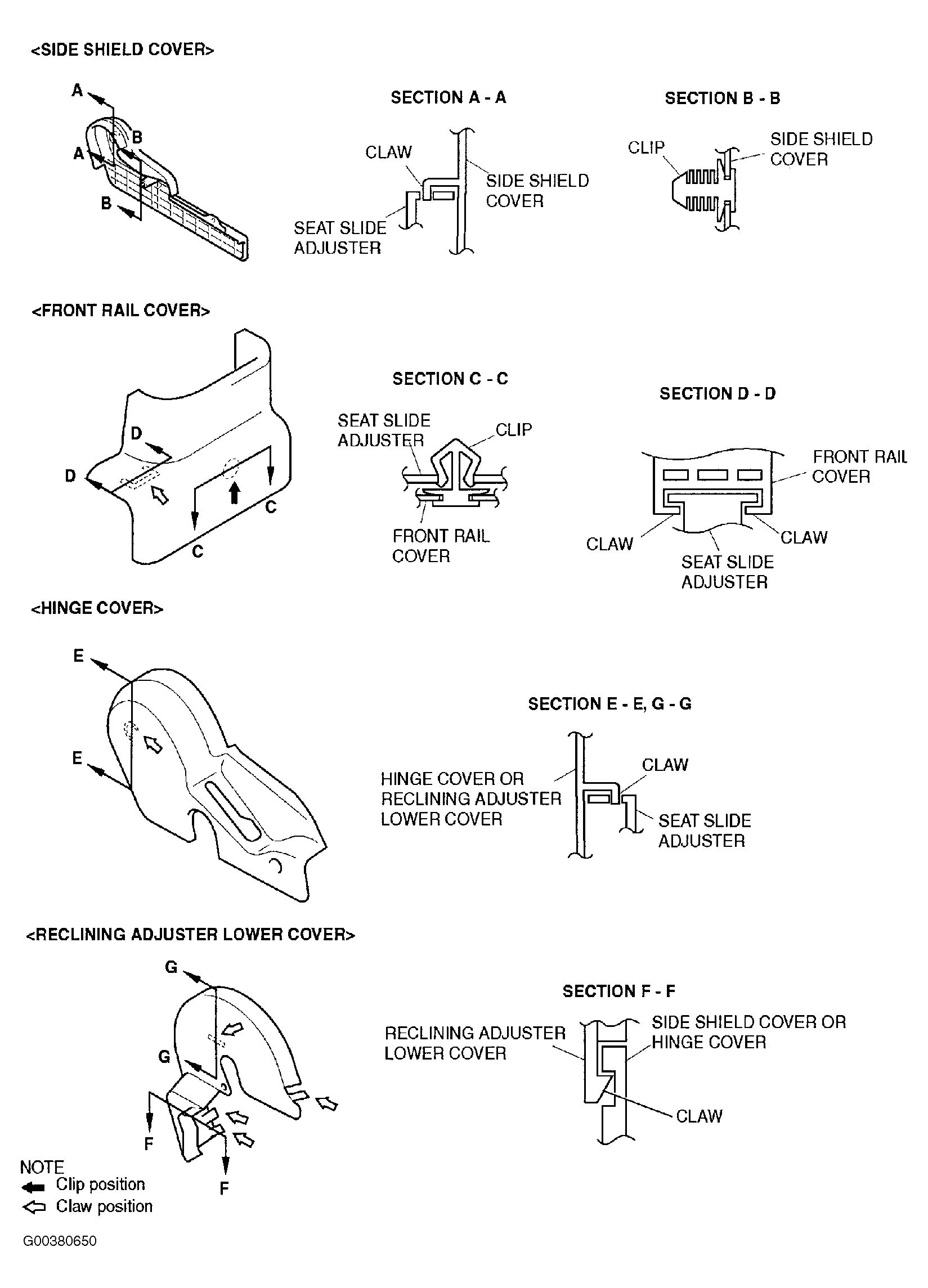

Fig 2: Locating Stud Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
