How To Use SWS Monitor

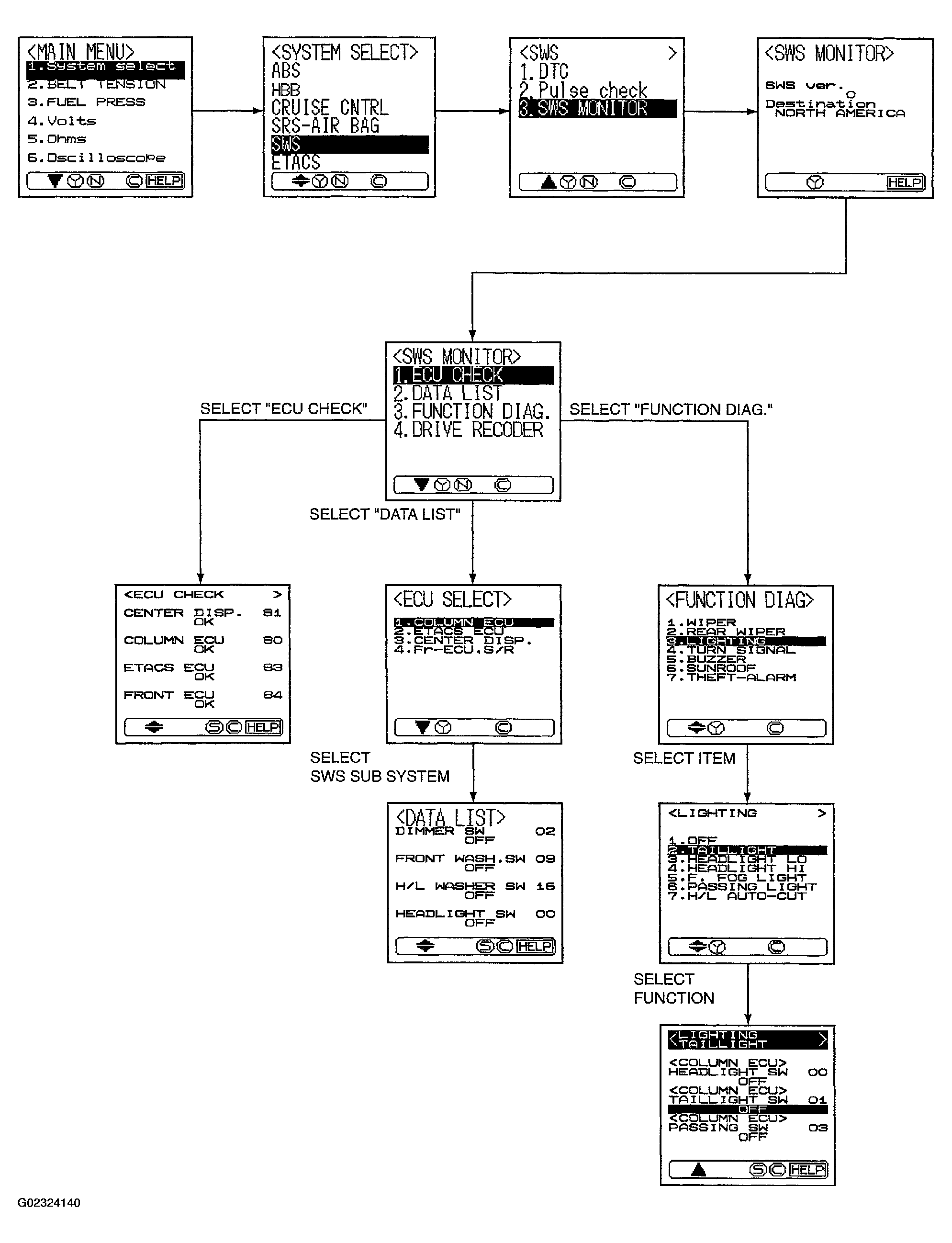

Troubleshooting with SWS monitor showing sample MUT-II screens.

Fig 1: Troubleshooting With SWS Monitor

G02324140

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
