Communication Method

The ETACS-ECU, the front-ECU, the column switch (incorporating the column-ECU), the sunroof motor assembly (incorporating the sunroof-ECU) and the RV meter are connected to each other by means of exclusive communication line in order to transmit and receive multiplex data.

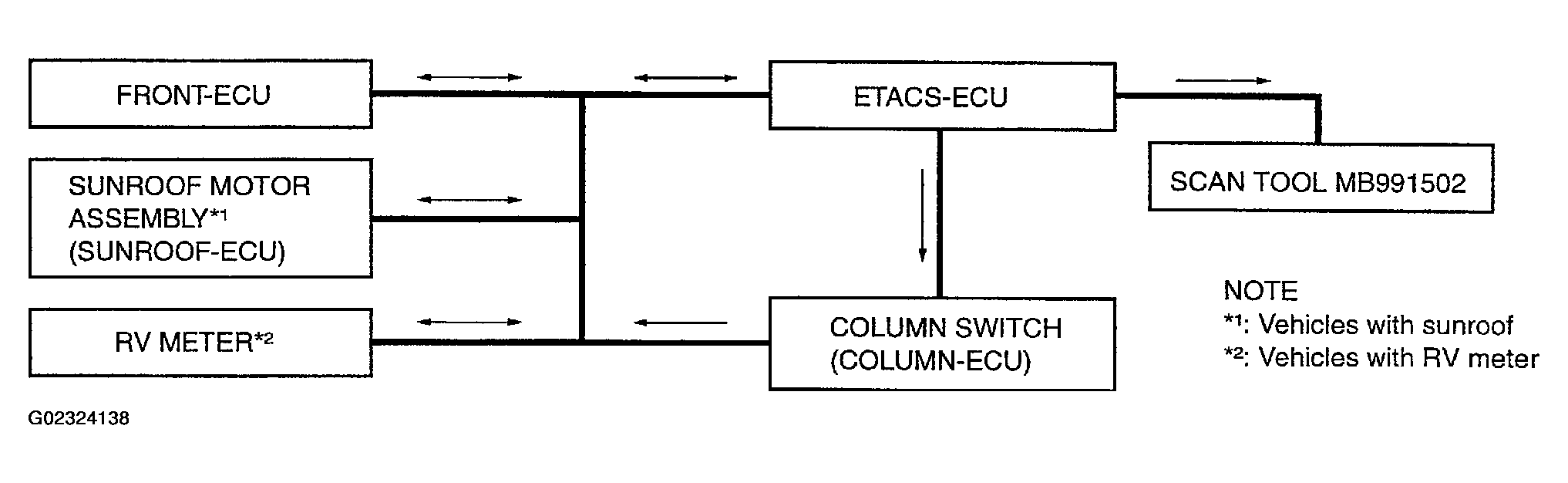

Fig 1: Identifying Communication Line
G02324138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
