ABS Warning Light Circuit Connector End View
ABS Warning Light Circuit Connector End View

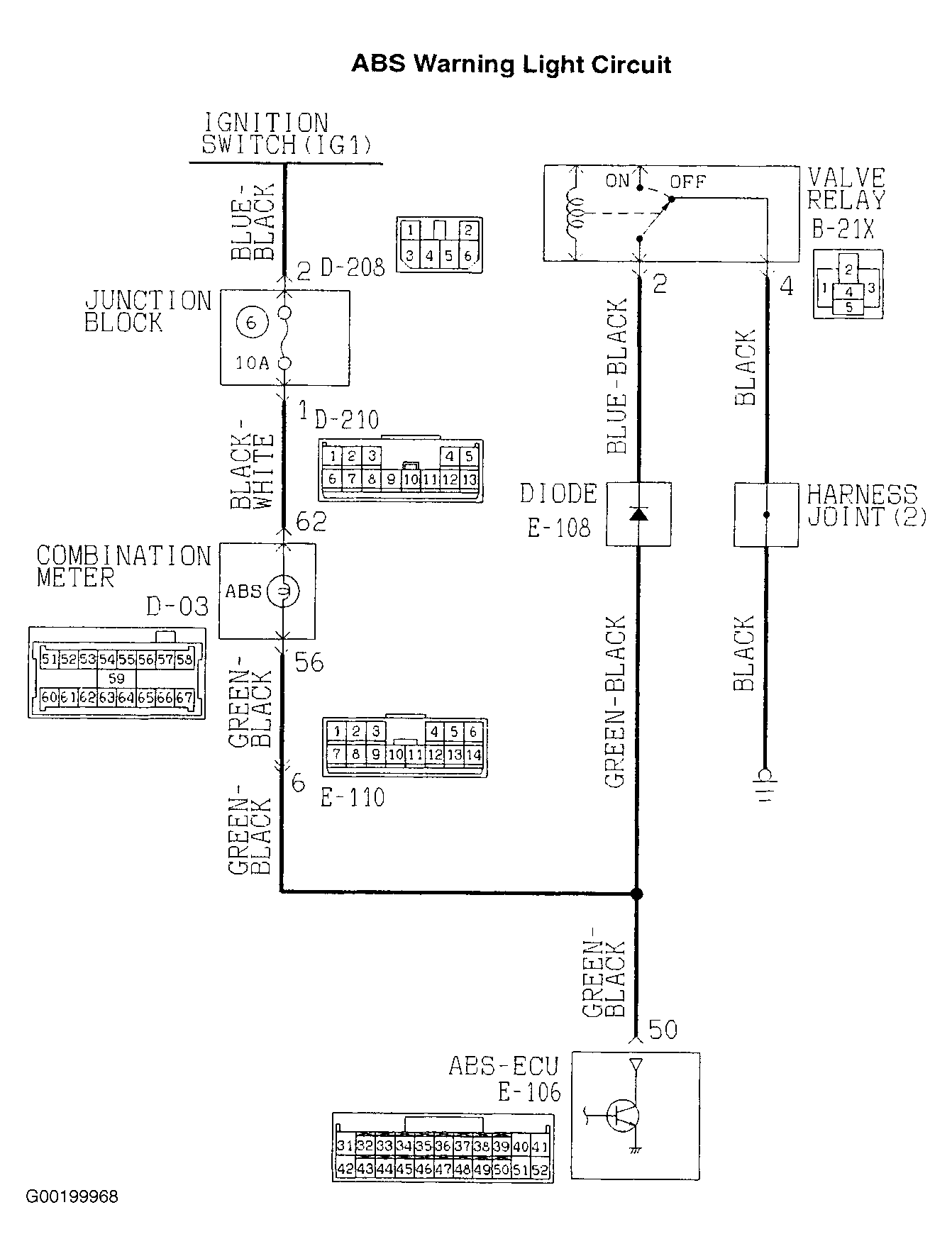

Fig 1: ABS Warning Light Circuit Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
