Section 31 (Disc): Overhaul

WARNING: This page is about a different car, the 2003 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For exploded views of calipers, see Fig 1 and Fig 2 . For exploded view of master cylinder and hydraulic brake booster assembly, see OVERHAUL in HYDRAULIC BRAKE BOOSTER - MONTERO article.

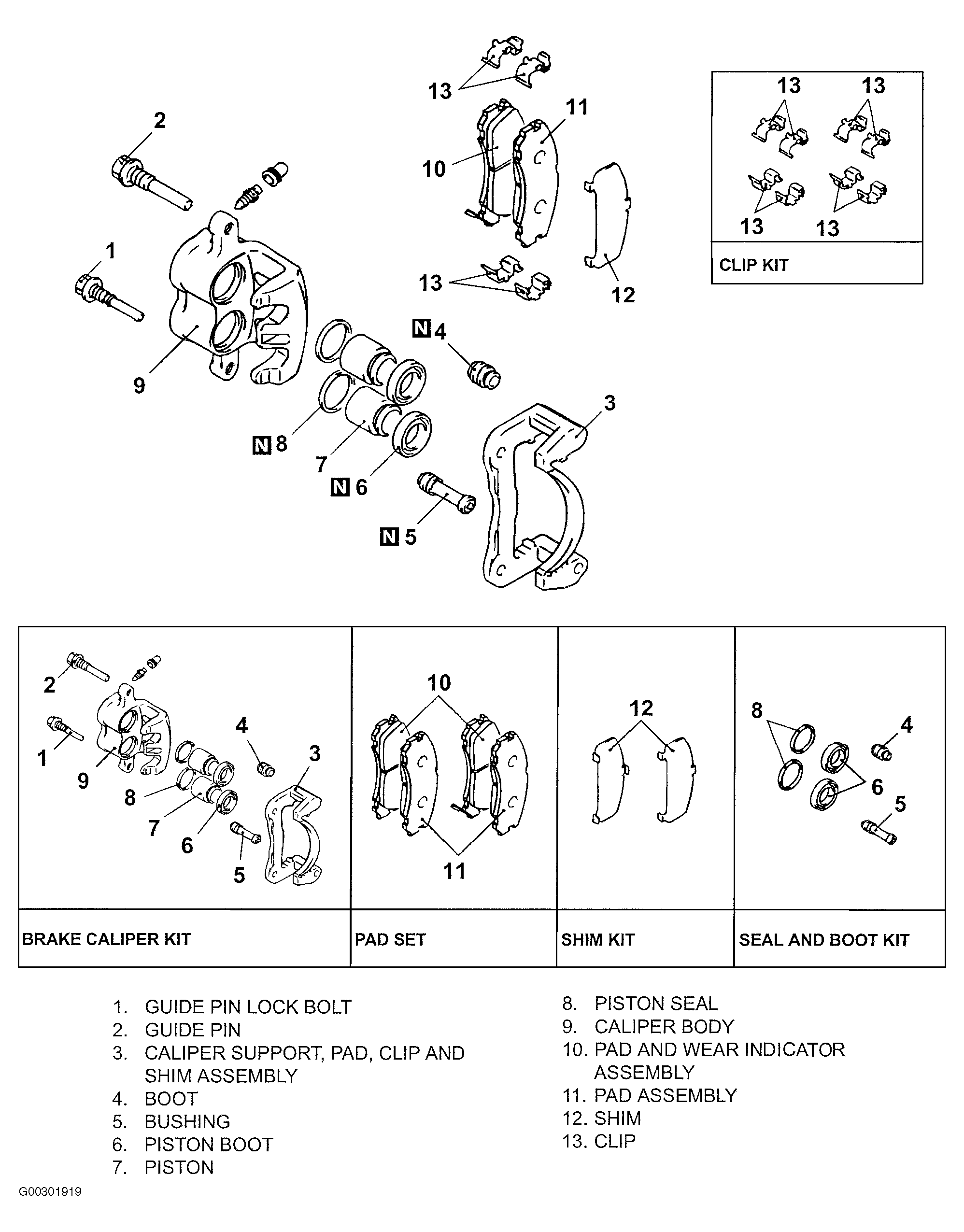

Fig 1: Exploded View Of Front Caliper Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

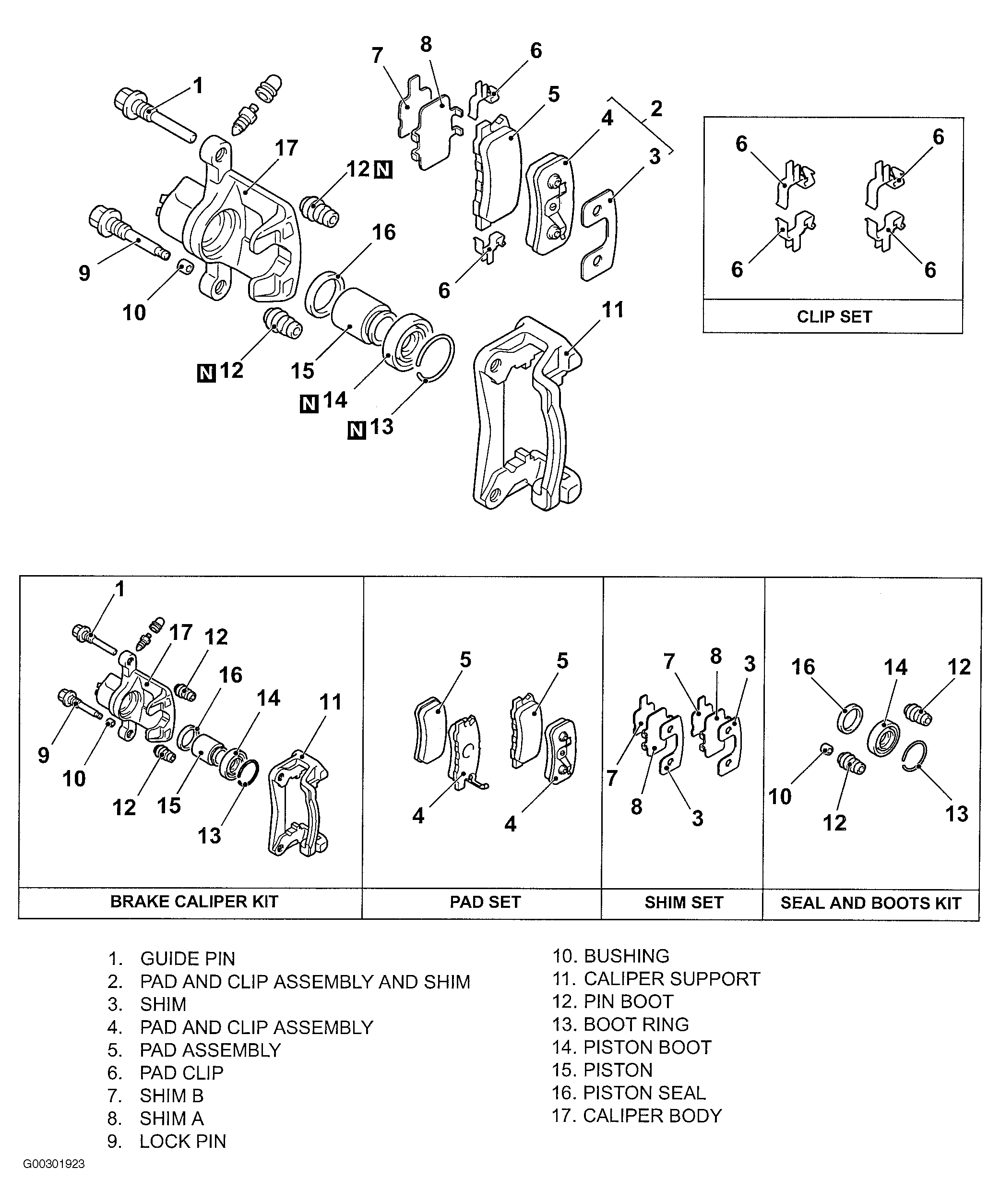

Fig 2: Exploded View Of Rear Caliper Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
