Section 31 (Disc): Description
WARNING: This page is about a different car, the 2003 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.
The brake system has been designed to give greater reliability and durability and to provide excellent braking performance. Features are:
- Adoption of a hydraulic brake booster (HBB) which maintains a high brake-assisting force even in high deceleration ranges.
- 16-inch ventilated disc brakes have been adopted to provide stable braking force and improved braking feel.
- Adoption of an Electronic Brake-force Distribution (EBD) which makes it possible to maintain the maximum amount of braking force even when the vehicle's load is unevenly distributed.
- Adoption of independent front and rear wheel brake lines (H piping).
- Ventilated discs have been adopted for front wheel and rear wheel in order to improve anti-fading performance.
- A diagnosis function has been adopted for the HBB system in order to make inspection easier.
- For the front and rear disc brakes, an outer disc method separated hub and rotor has been adopted to make removal and installation easier.
- The HBB reservoir tank cap has been colored white to make identification easier.

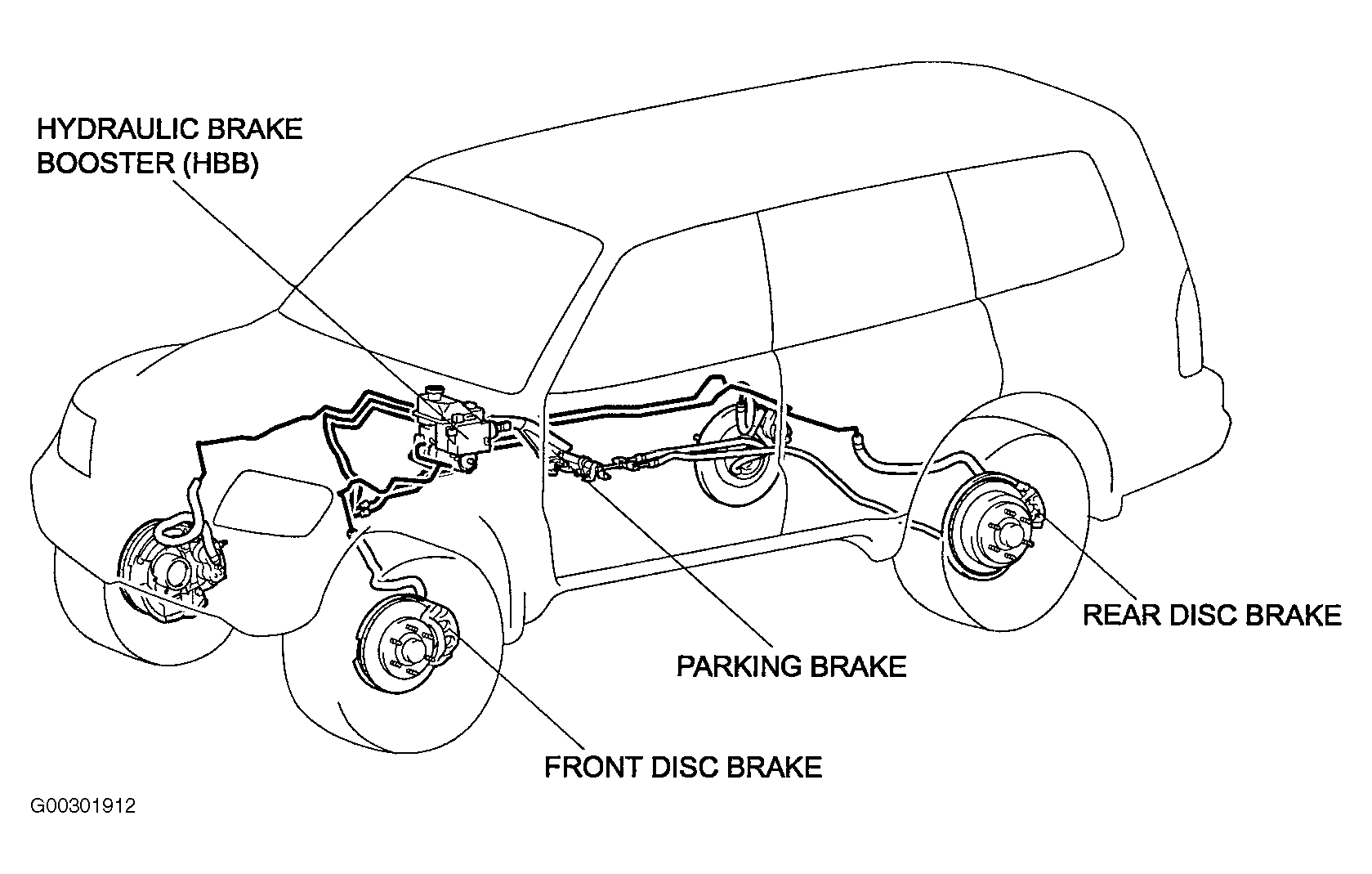

For configuration diagram, see Fig 1 .
The parking brake is of a mechanical rear-wheel brake construction employing a drum in disc-type parking brake mechanism. The operation method utilizes a parking brake lever which is in an offset position at the driver's side.
