Wheel Speed Sensor Circuit Connector End Views

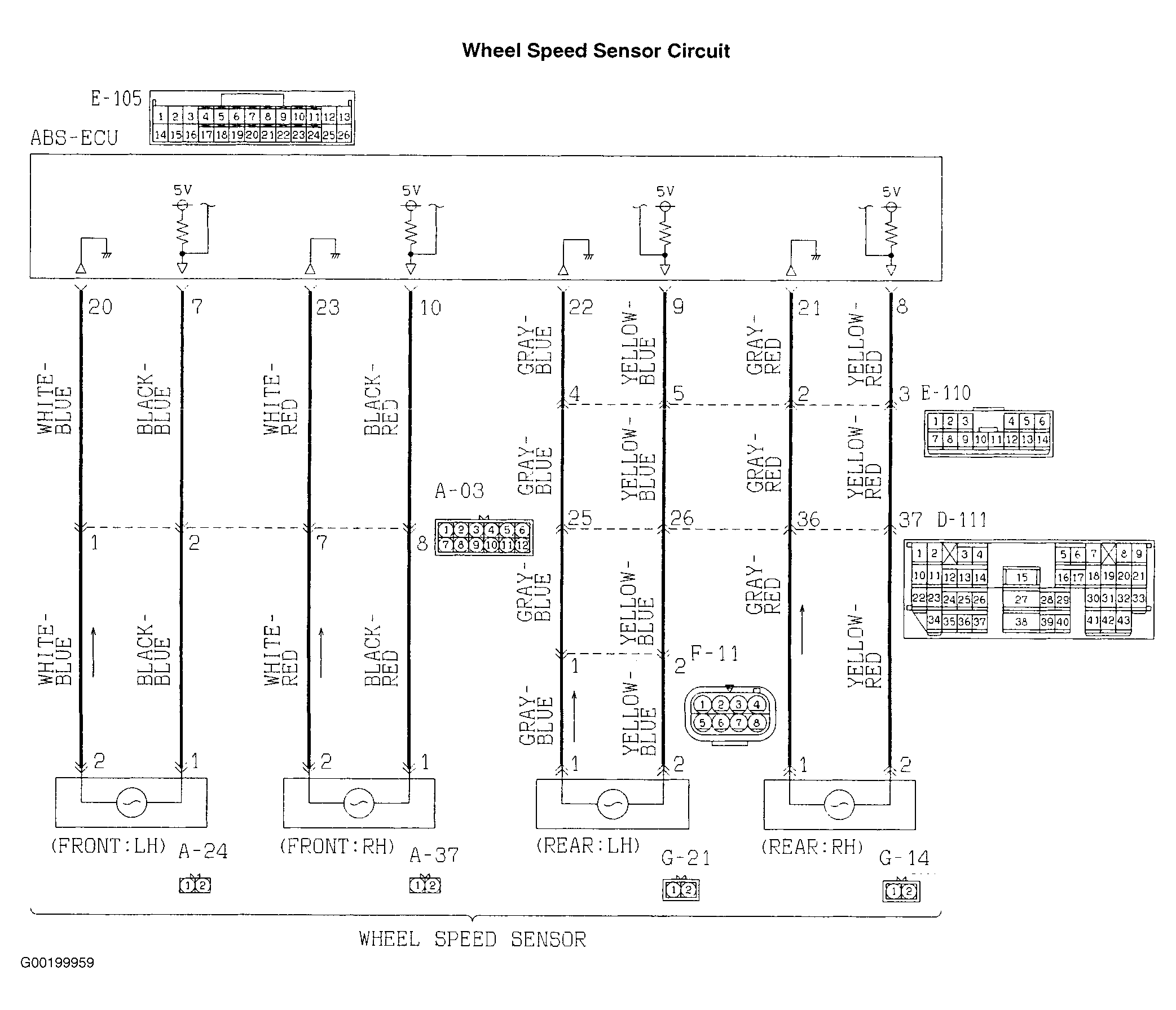

Fig 1: Wheel Speed Sensor Circuit Connector End Views

G00199959

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
