Test No. 5: Cruise Control Cannot Be Set

  1. Check if scan tool can communicate with cruise control system. If communication is not possible, go to TEST NO. 1: SCAN TOOL COMMUNICATION WITH CRUISE CONTROL ECU NOT POSSIBLE  . If communication is possible, go to next step.
  2. Check if DTC 11, 12, 14, 15, 16 or 17 is present. If code(s) are present, see appropriate DTC test. If code(s) are not present, go to next step.

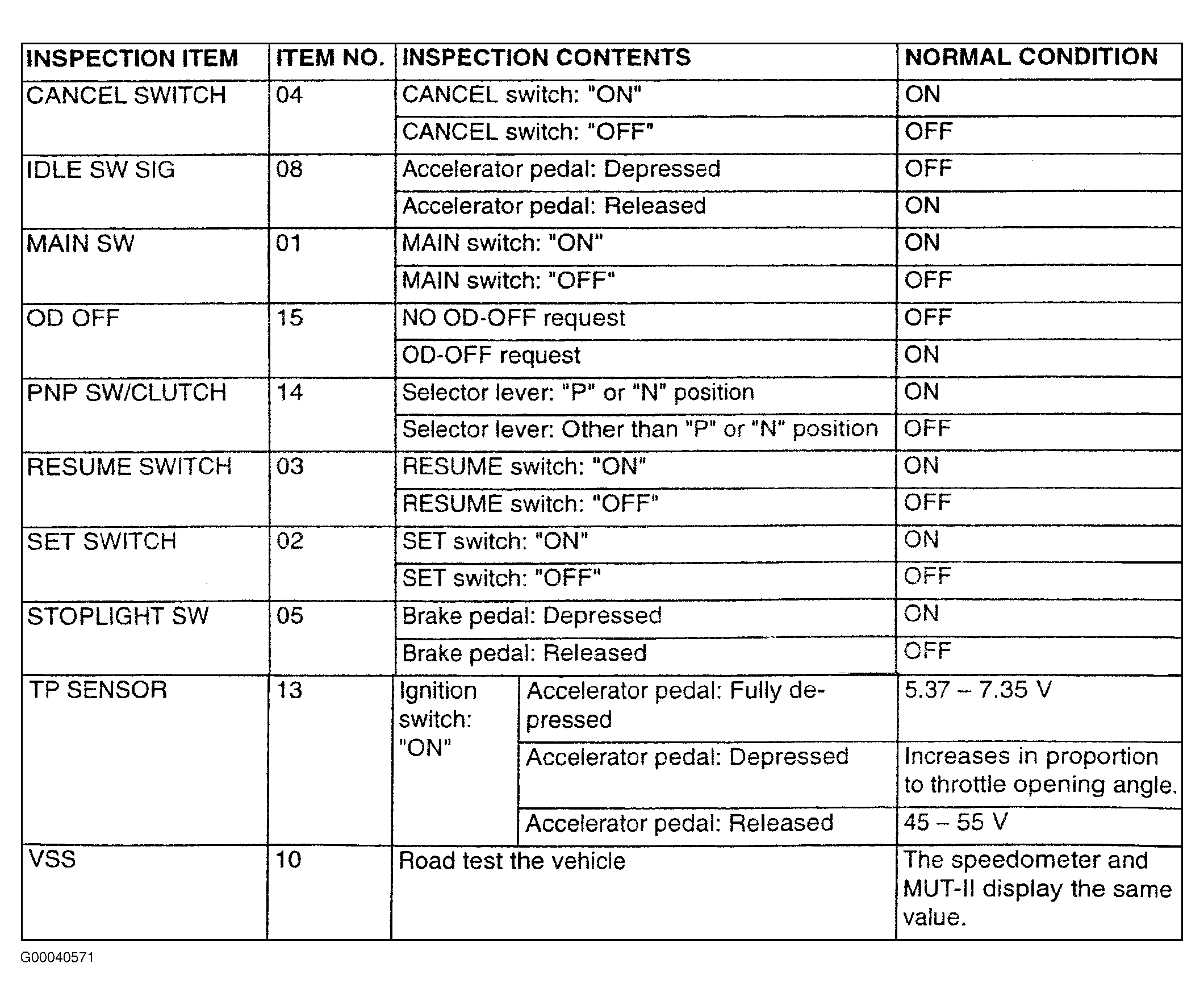

  3. Using scan tool, check for data list reference codes. See RETRIEVING DATA LIST REFERENCE CODES  . Ensure reference codes meet specified values. SeeFigure . Ensure malfunction is eliminated. If code 04 is present, go to DTC 15: CRUISE CONTROL SWITCH  . If code 05 is present, go to TEST NO. 2: CRUISE CONTROL DOES NOT CANCEL WHEN BRAKE PEDAL IS DEPRESSED  . If code 14 is present, go to TEST NO. 3: CRUISE CONTROL DOES NOT CANCEL WHEN TRANSAXLE IS SHIFTED TO "N" RANGE  .
