Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
Servicing - M/T
>>
Transaxle Control
>>
Removal And Installation
Removal And Installation

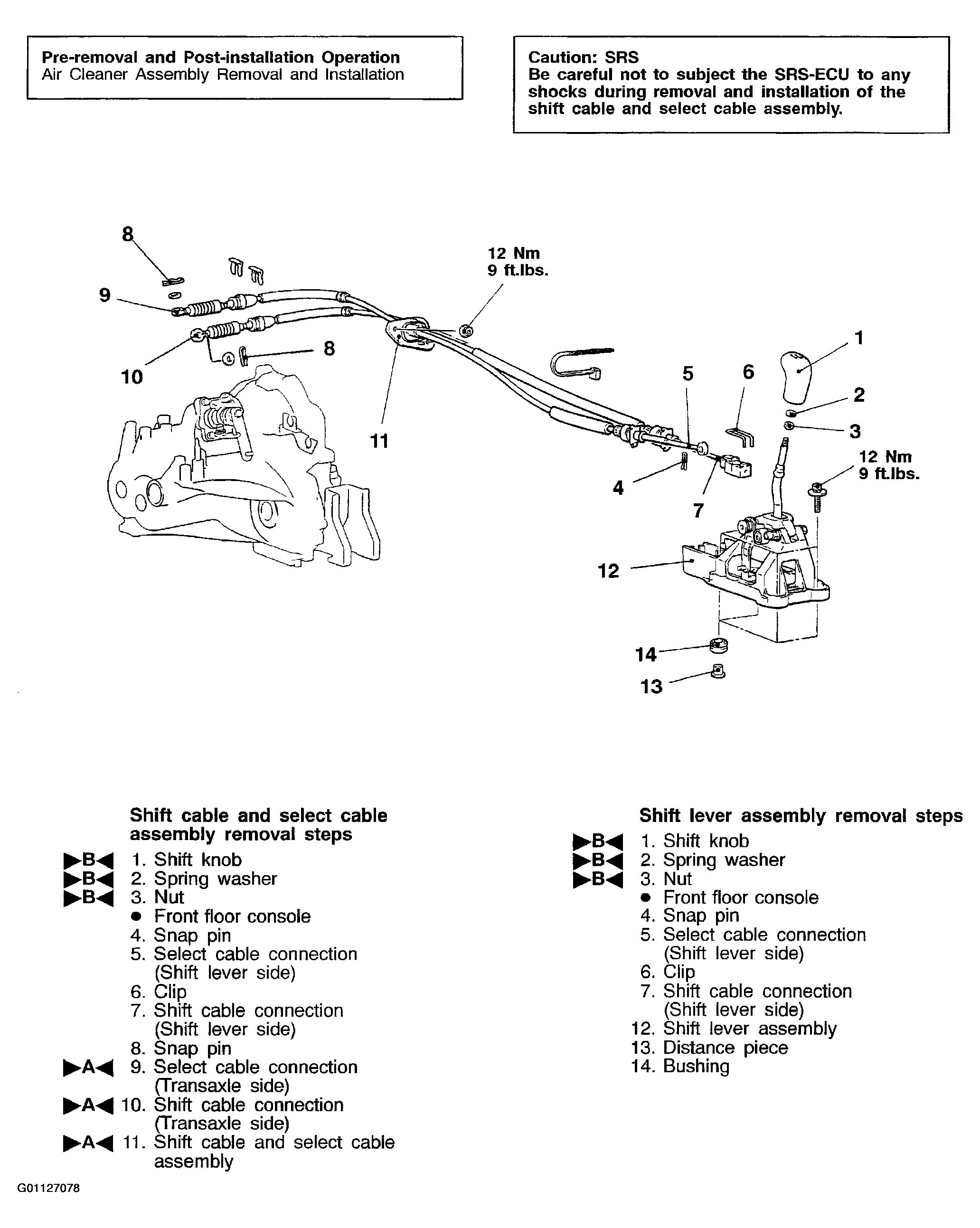

Fig 1: Removing & Installing Transaxle Control
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
