Home >> Mitsubishi >> 2002 >> Mirage LS, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Overhaul >> Control Housing >> Disassembly And Reassembly

Disassembly And Reassembly

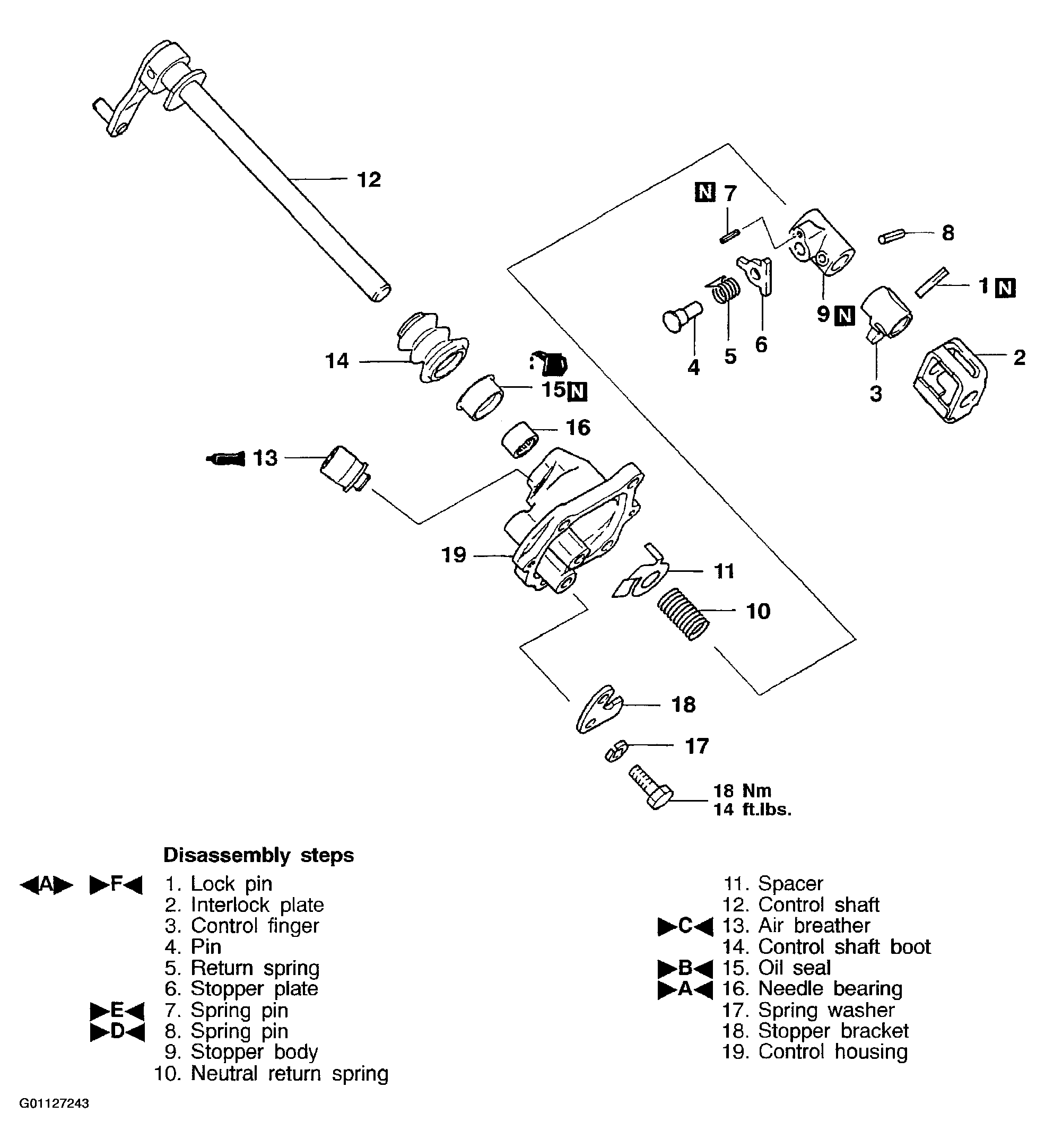

Fig 1: Exploded View Of Control Housing
G01127243Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
