Repair and Diagnosis: Transmission: Clutches: Troubleshooting

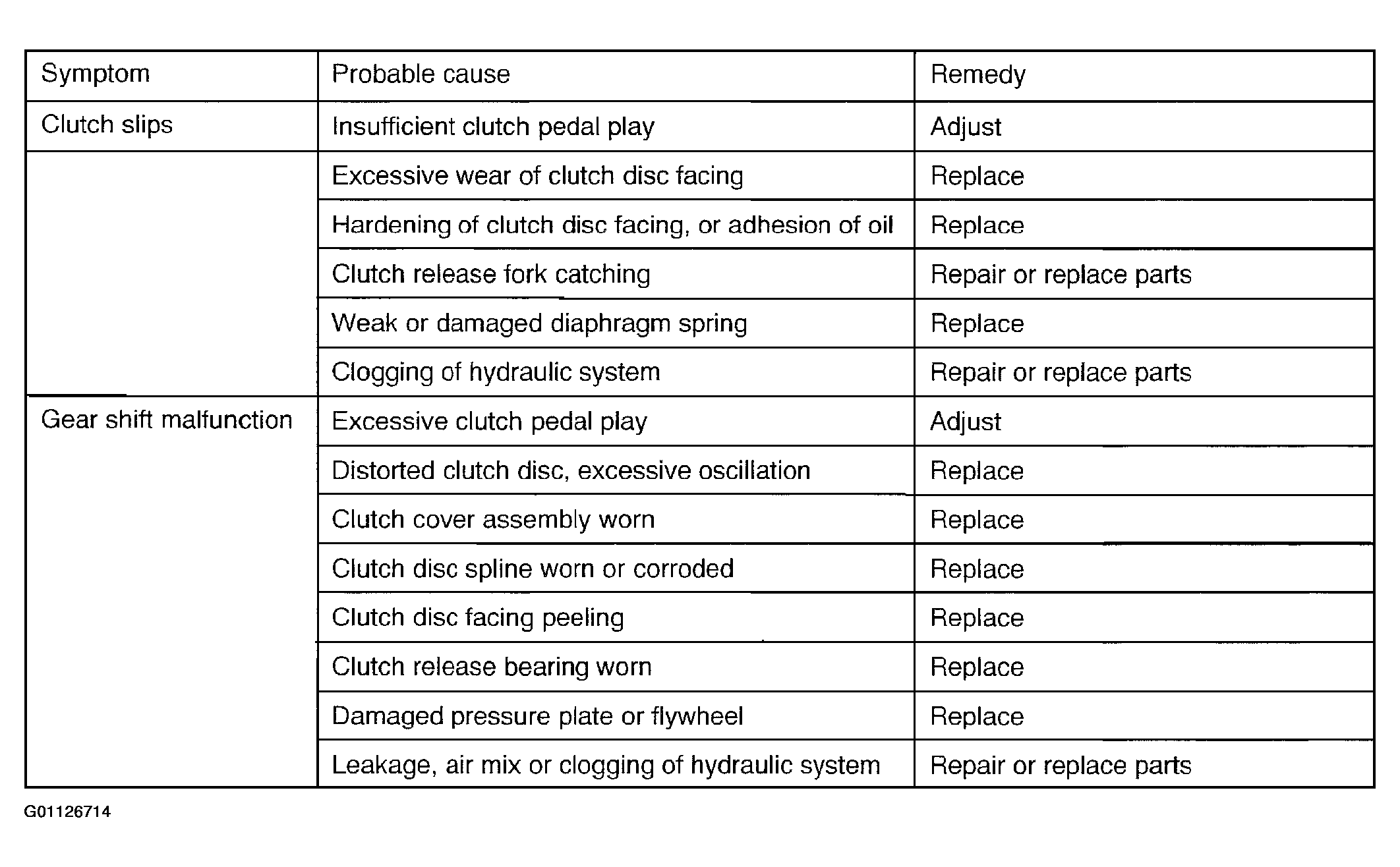

Fig 1: Troubleshooting (1 Of 2)
G01126714Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

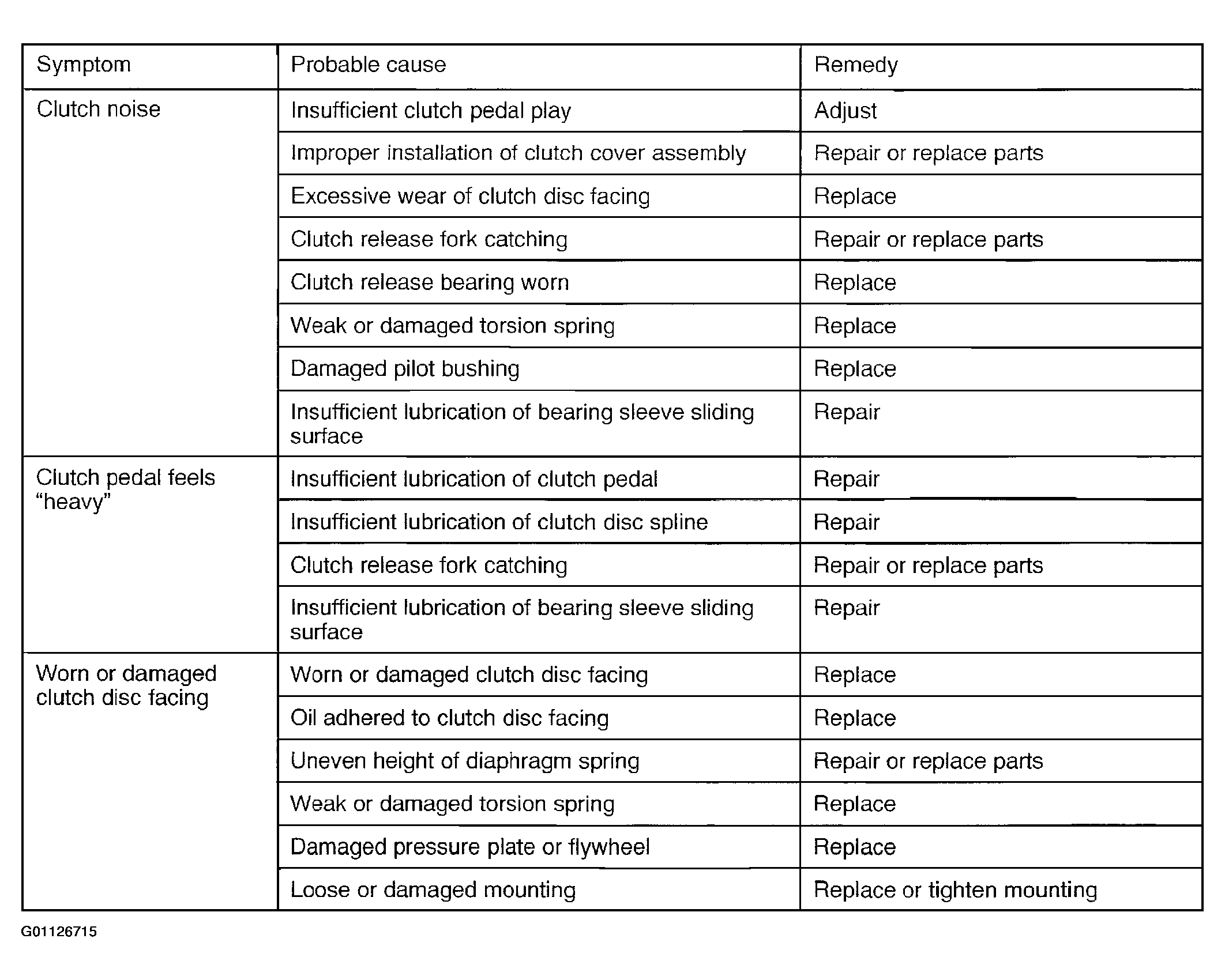

Fig 2: Troubleshooting (2 Of 2)
G01126715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
