Automatic Compressor ECU Connector End View

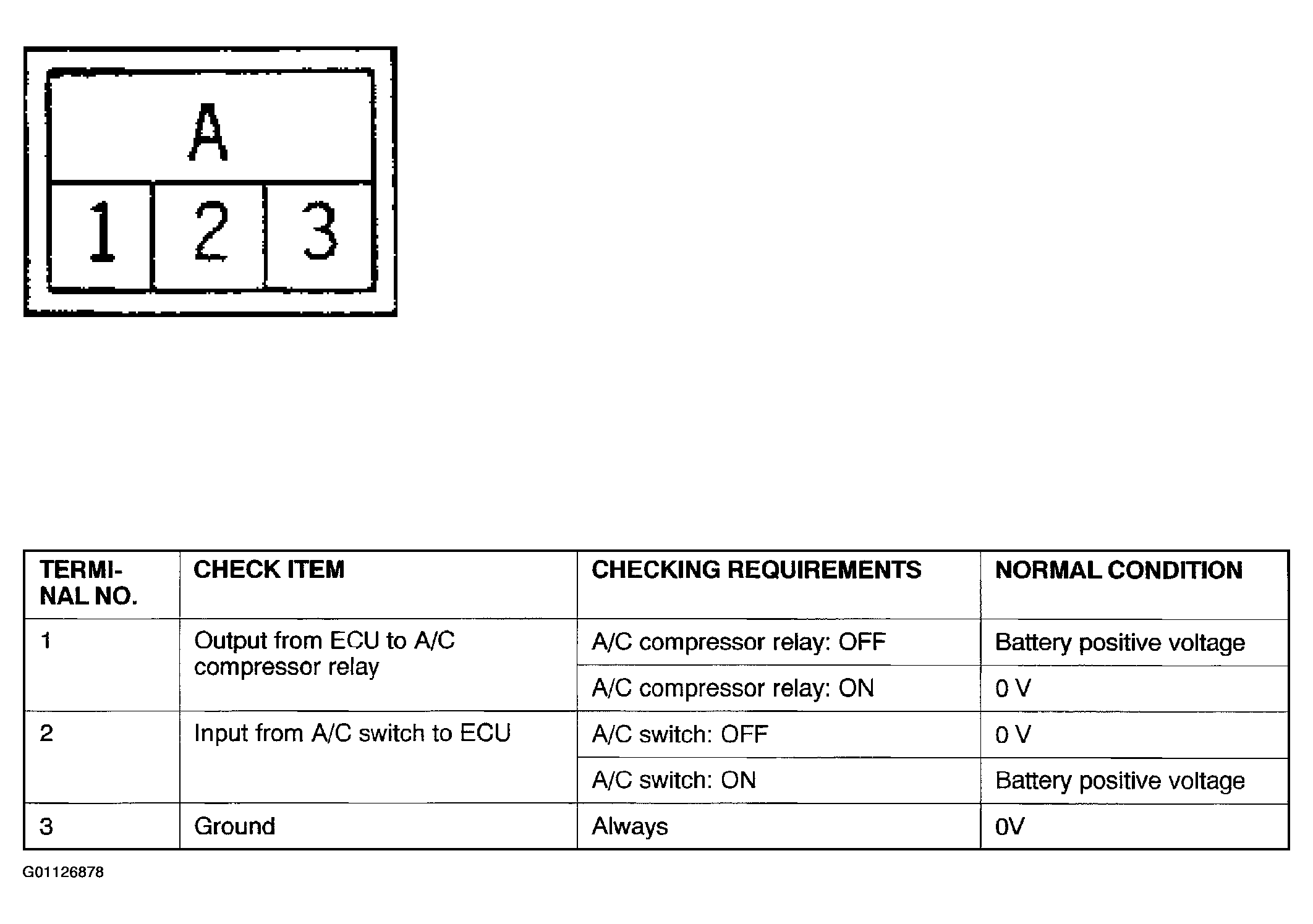

Fig 1: Automatic Compressor ECU Connector End View

G01126878

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
