Door Lock Switch Continuity Check

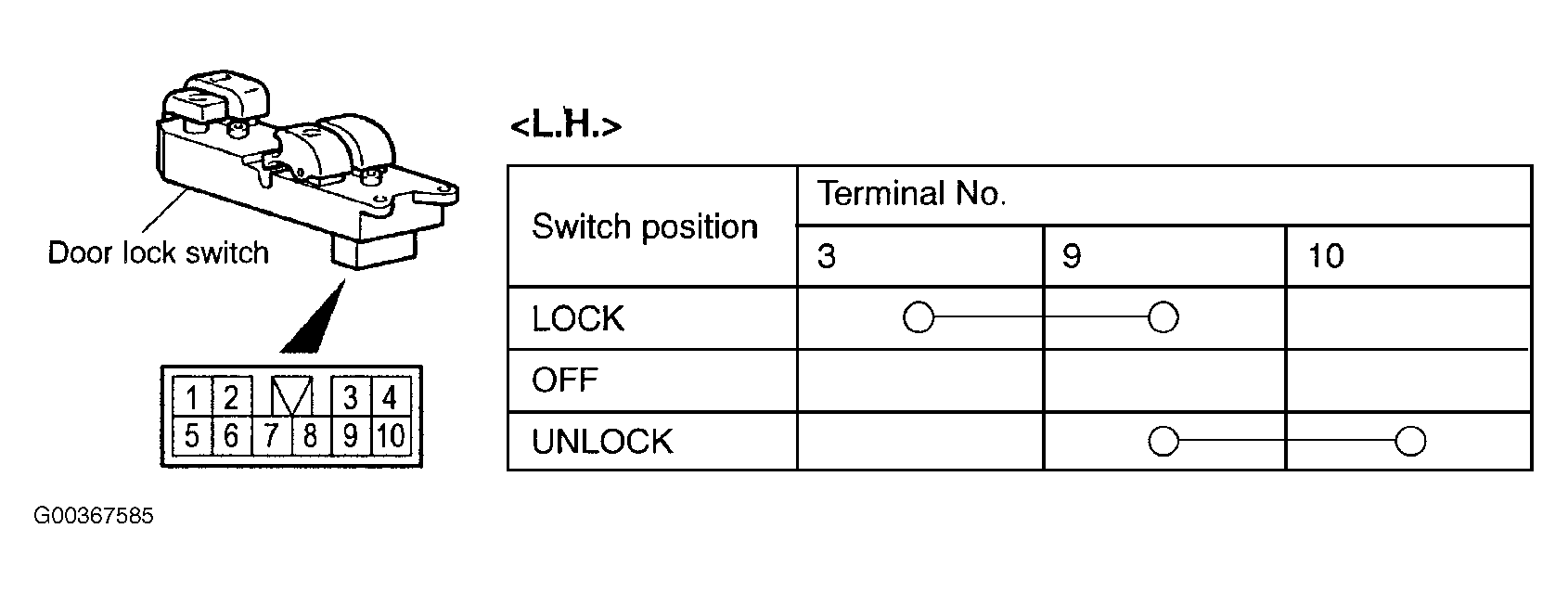

Fig 1: Door Lock Switch Continuity Check (L.H.)

G00367585

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

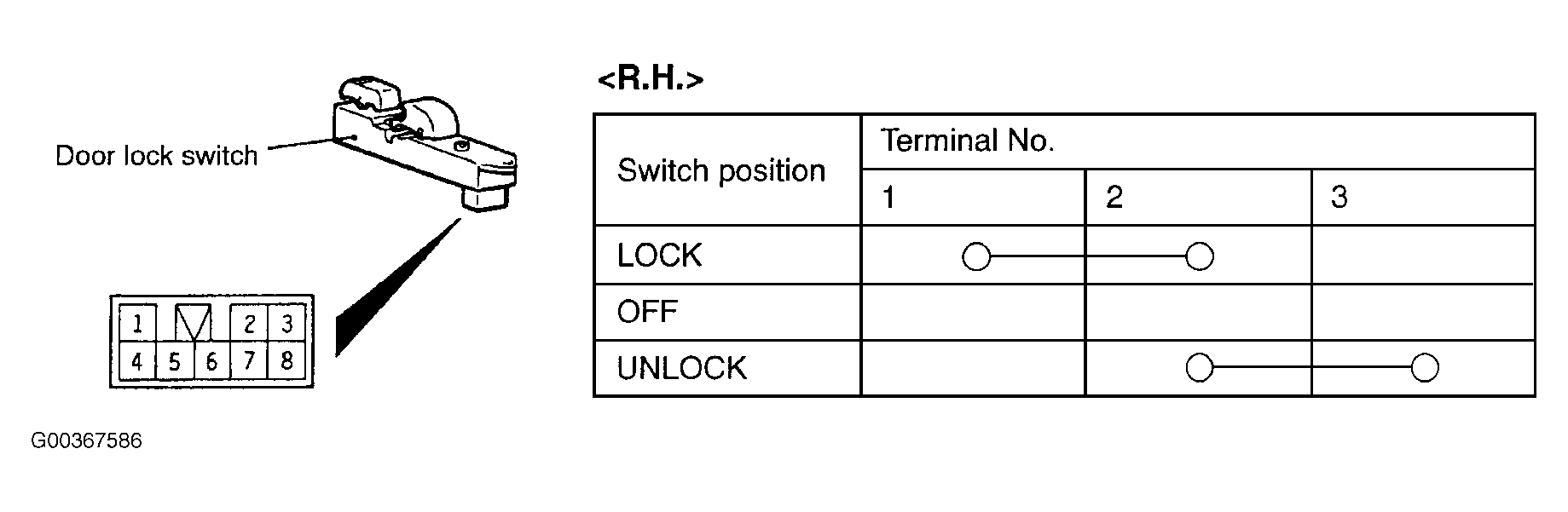

Fig 2: Door Lock Switch Continuity Check (R.H.)

G00367586

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
