Door Lock Key Cylinder Switch Continuity Check

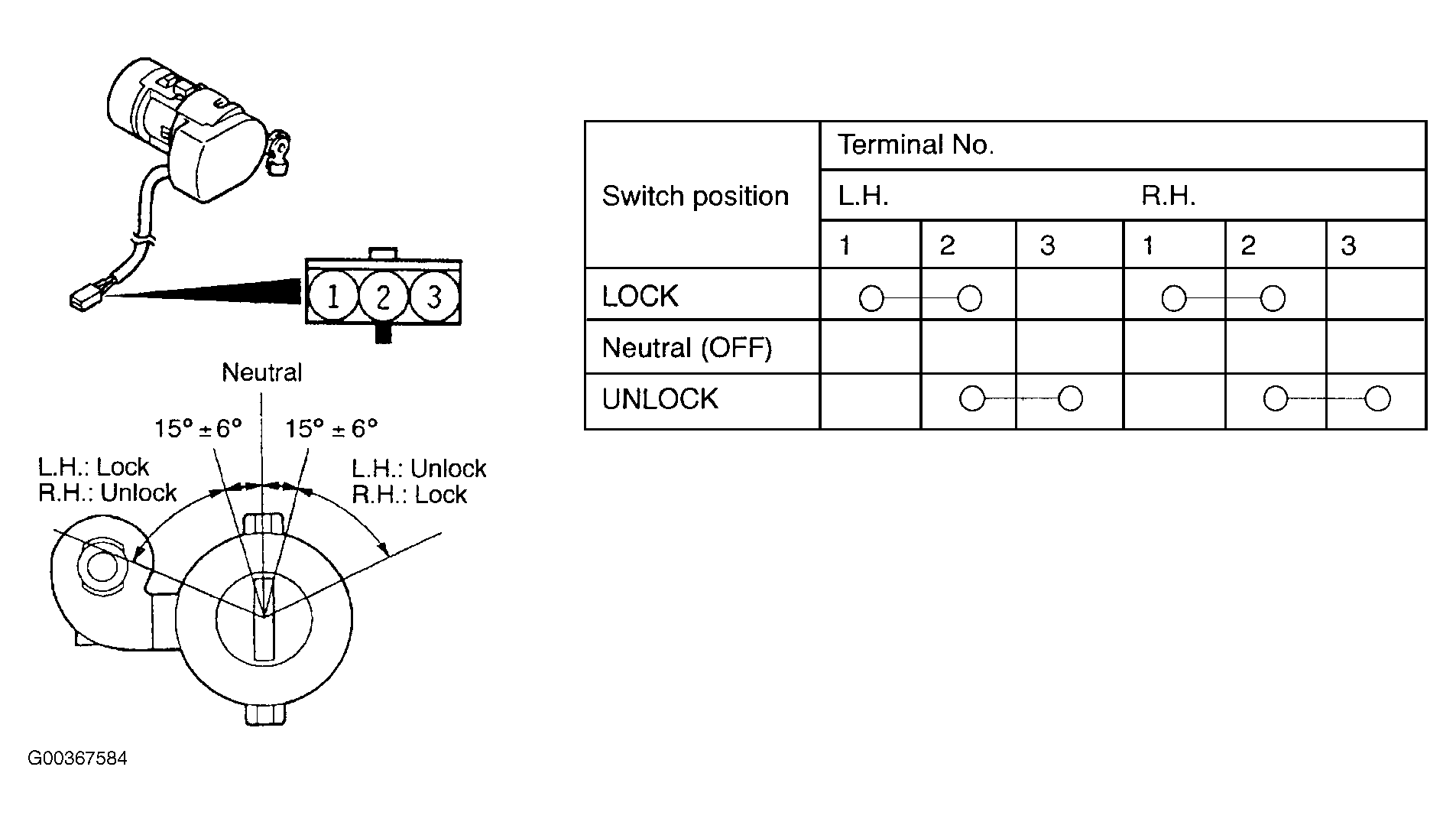

Fig 1: Door Lock Key Cylinder Switch Continuity Check

G00367584

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
