Removal And Installation

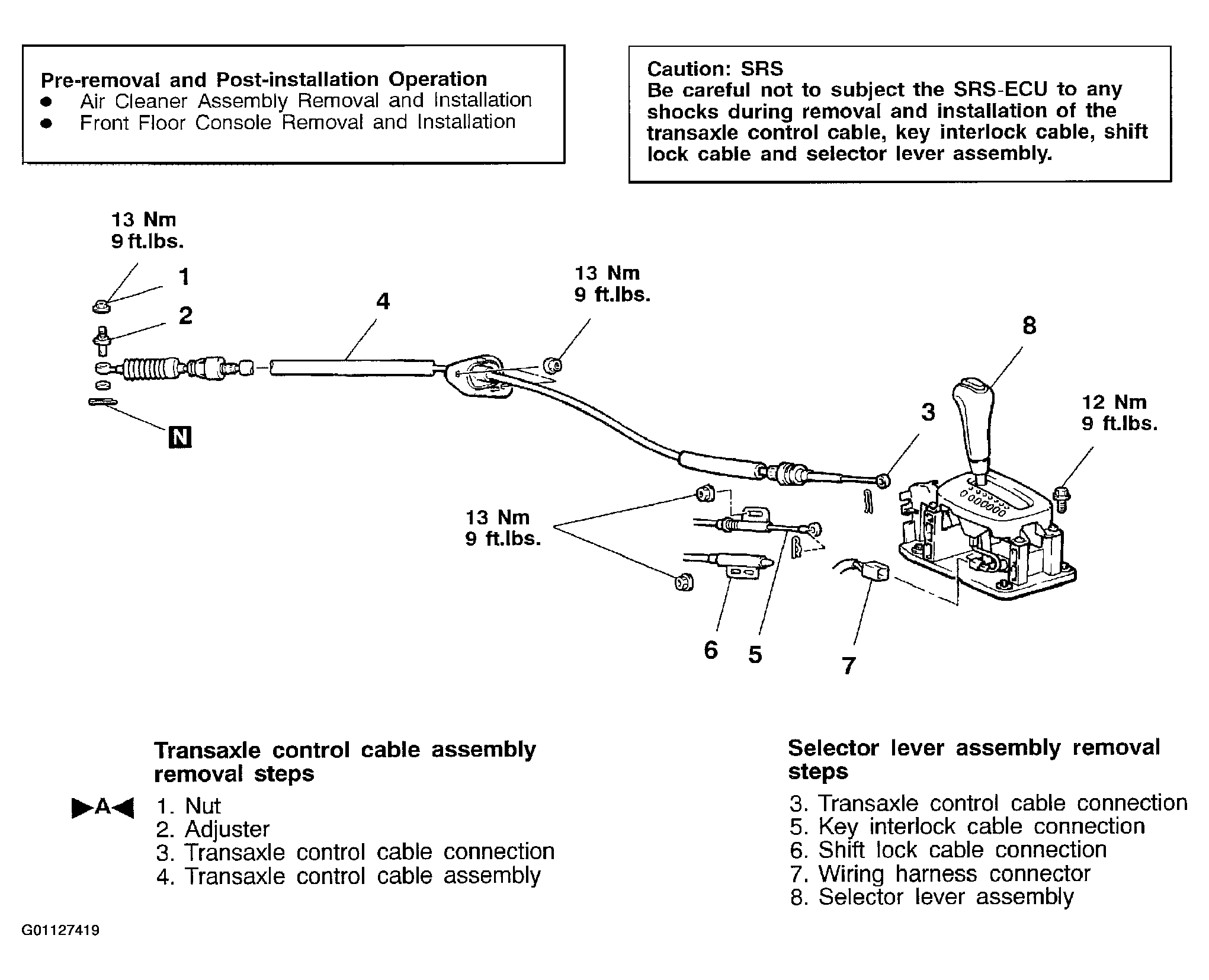

Fig 1: Removing & Installing Transaxle Control
G01127419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
