>A< Installation

  1. Put the selector lever in the "N" position.
  2. Loosen the adjusting nut, gently pull the transaxle control cable in the direction of the arrow and tighten the nut.

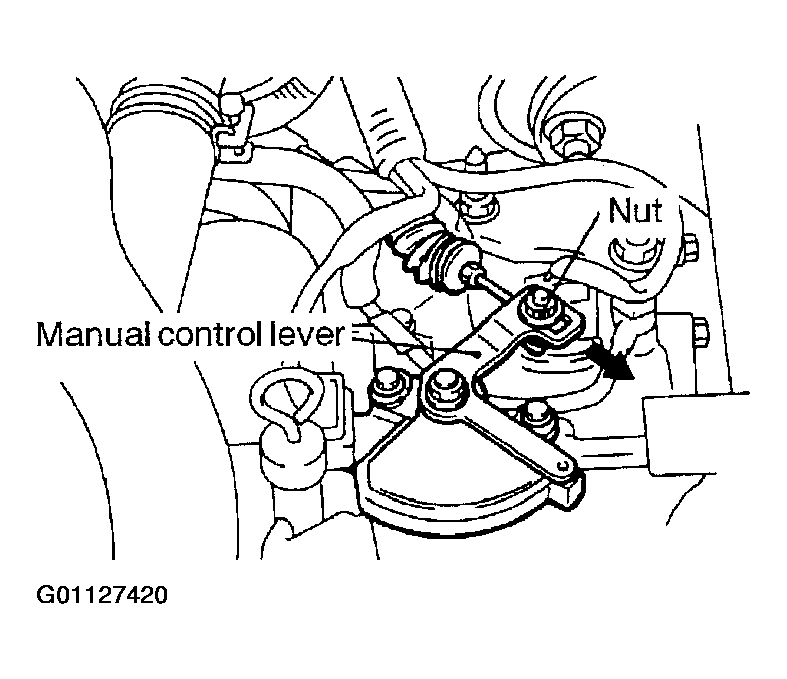

Fig 1: Installing Nut
G01127420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
