Key Interlock Mechanism Check

  1. Carry out the following inspection.

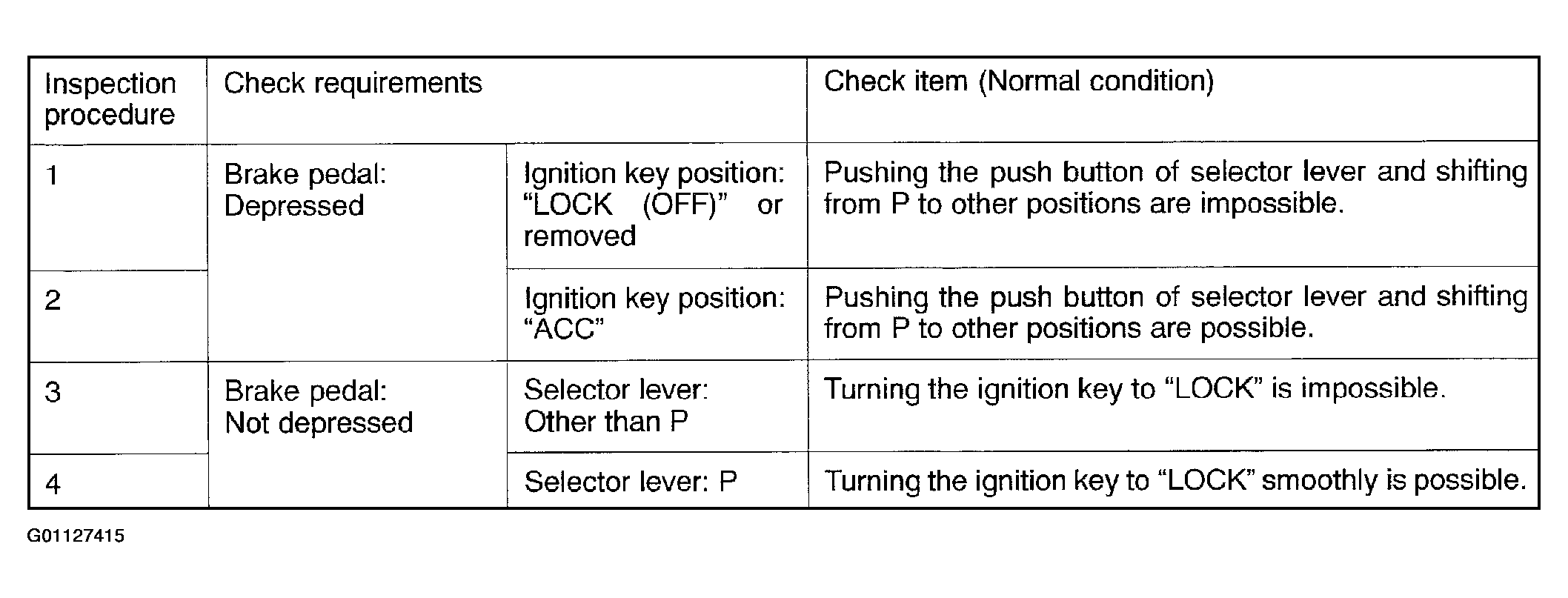

    Fig 1: Inspecting Key Interlock Mechanism
    G01127415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. When the above operations are defective, adjust the key interlock cable in following procedure.
    1. Remove the front floor console.
    2. Shift selector lever to "P".
    3. Turn the ignition key to "LOCK".
    4. Loosen the locking nut of the key interlock cable.
    5. Push the cable joint on the lock cam gently toward the arrow, and tighten the locking nut.
    6. Install the front floor console.

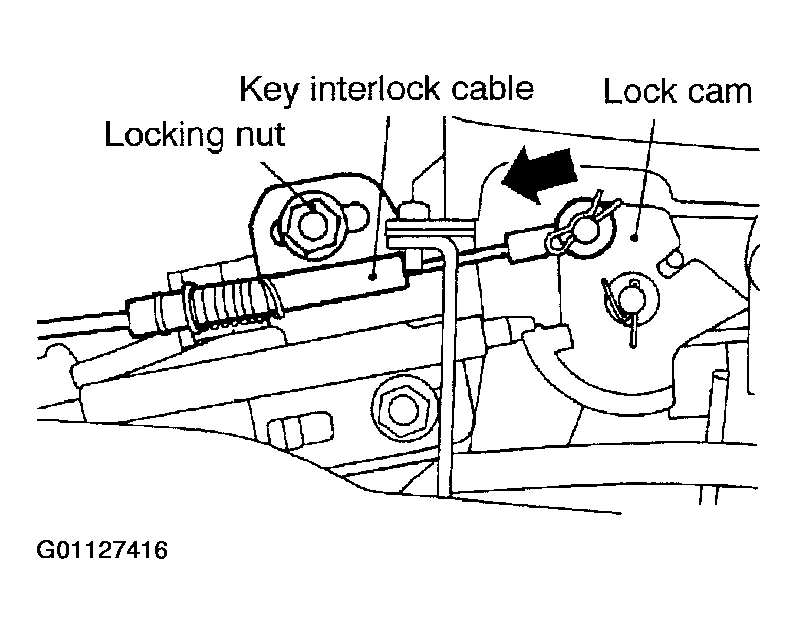

Fig 2: Adjusting Key Interlock Cable
G01127416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
