A/T Control Component Location

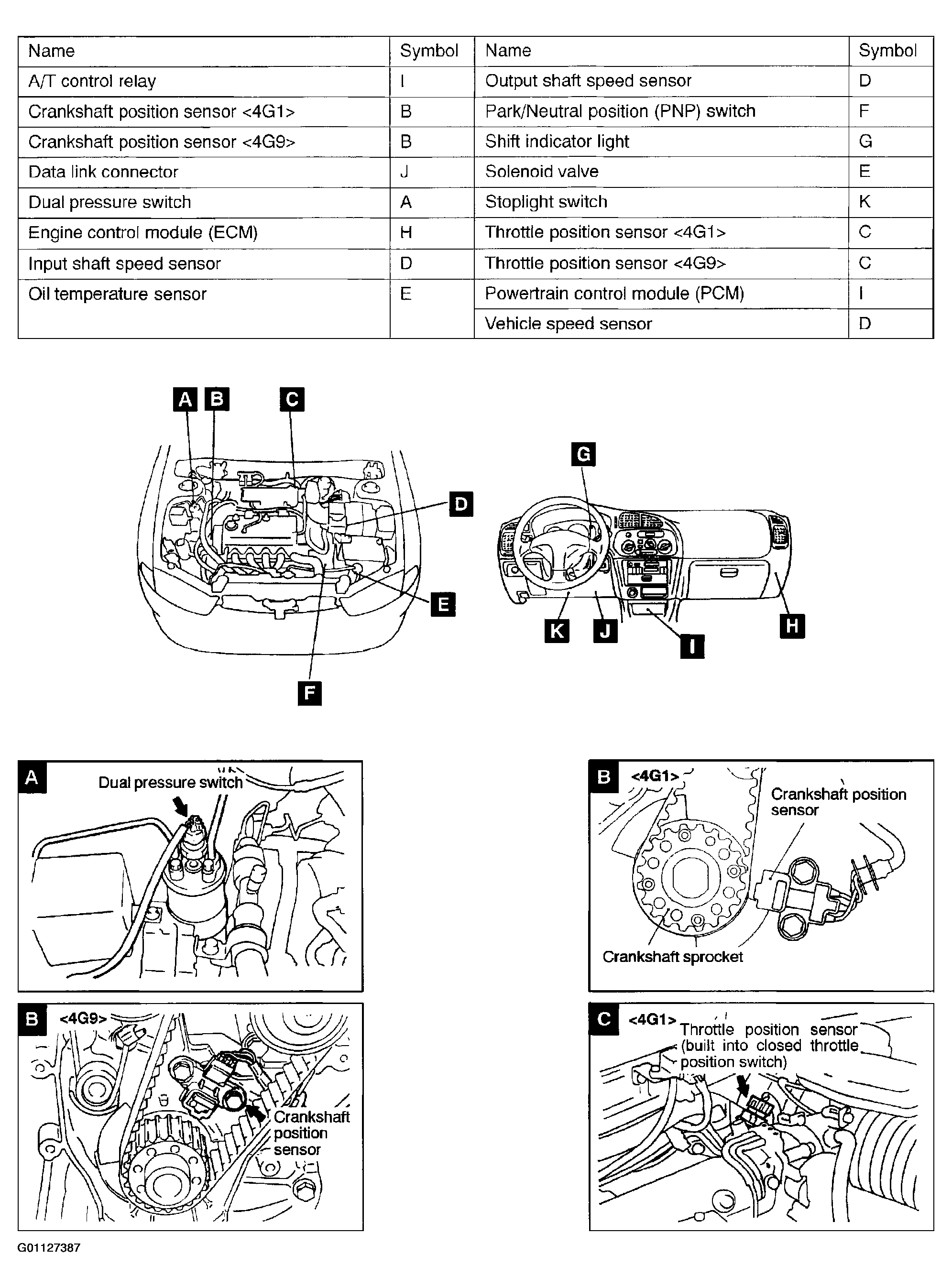

Fig 1: Identifying A/T Control Components (1 Of 2)
G01127387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

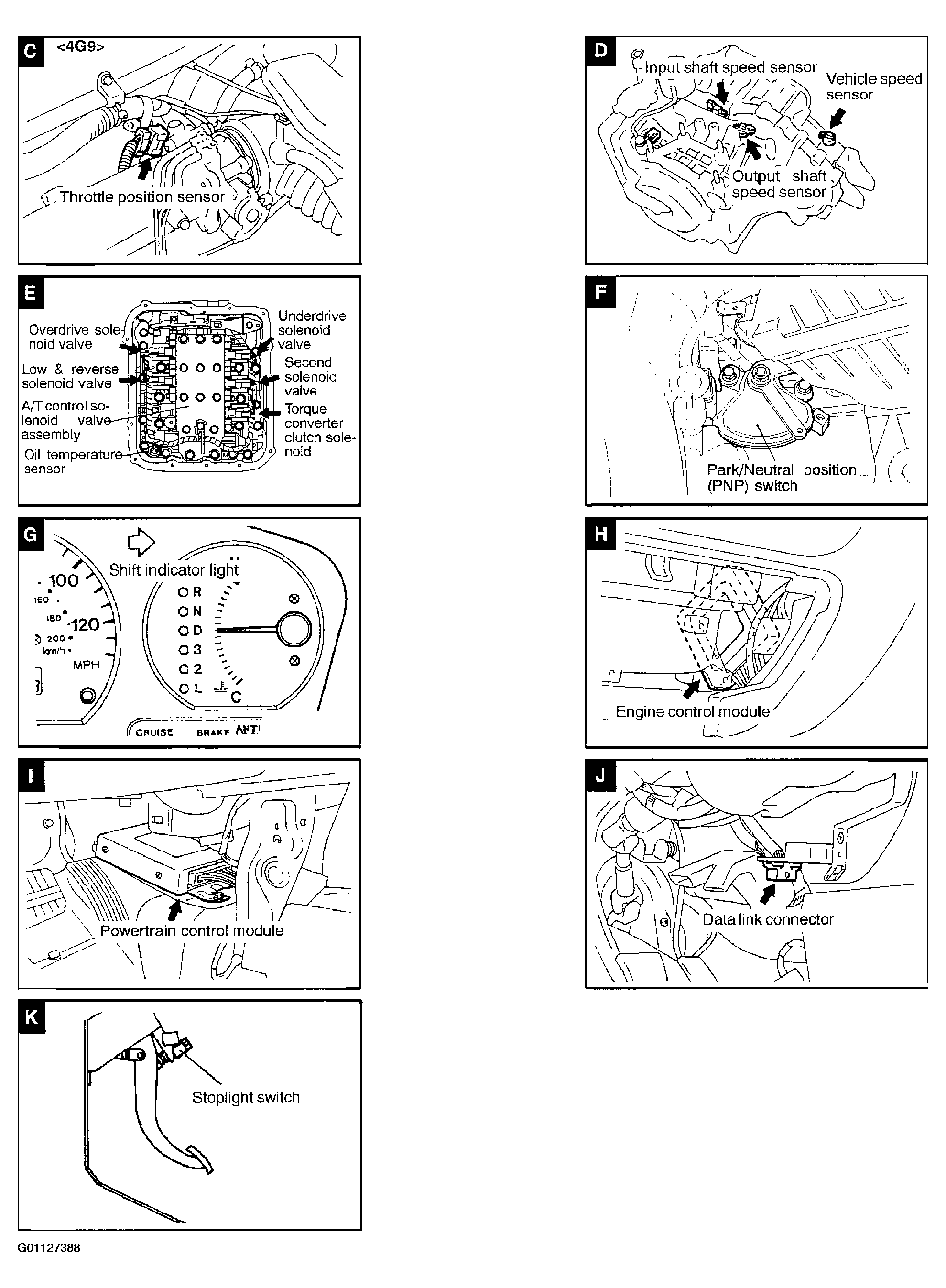

Fig 2: Identifying A/T Control Components (2 Of 2)
G01127388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
