A/T Control Component Check

CRANKSHAFT POSITION SENSOR CHECK
See SELF-DIAGNOSTICS - 1.5L .

See SELF-DIAGNOSTICS - 1.8L .
THROTTLE POSITION SENSOR CHECK
See SELF-DIAGNOSTICS - 1.5L .

See SELF-DIAGNOSTICS - 1.8L .
OIL TEMPERATURE SENSOR CHECK
1. Disconnect the oil temperature sensor.
2. Measure the resistance between terminals No. 1 and No. 2 of the oil temperature sensor connector.
  Standard value:

  Fig 1: Checking Oil Temperature Sensor Check
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  Fig 2: Measuring Resistance Between Terminals
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

  NOTE: The N range indicator lamp on the combination meter flashes when the temperature reaches approximately 125°C or higher, and then stops flashing when the temperature drops below approximately 115°C.
3. Replace the sensor if not within the standard value.
PARK/NEUTRAL POSITION SWITCH CHECK
See 7. PARK/NEUTRAL POSITION SWITCH CONTINUITY CHECK .
STOPLIGHT SWITCH CHECK
See DISC & DRUM .
VEHICLE SPEED SENSOR CHECK
See SYSTEM & COMPONENT TESTING .
DUAL PRESSURE SWITCH CHECK
See MANUAL A/C-HEATER SYSTEMS -- MIRAGE .
A/T CONTROL RELAY CHECK
1. Remove the A/T control relay.

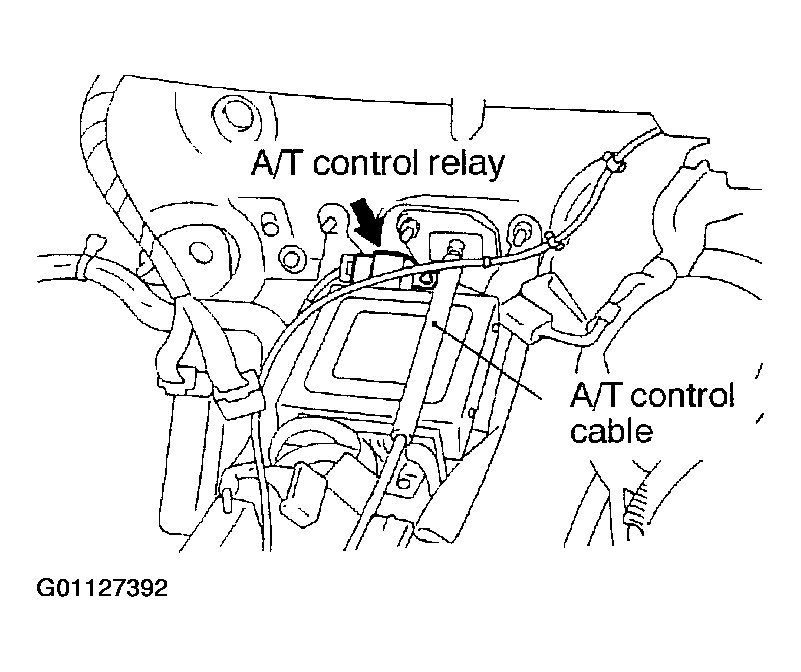

  Fig 3: Removing A/T Control Relay
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Use jumper wires to connect the A/T control relay terminal (2) to the battery (-) terminal and terminal (4) to the battery (+) terminal.
3. Check the continuity between the terminal (1) and the terminal (3) of the A/T control relay when the jumper wires are connected to and disconnected from the battery.

  Fig 4: Checking Continuity Between Terminals
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. If there is a problem, replace the A/T control relay.
Fig 5: Replacing A/T Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SOLENOID VALVE CHECK
1. Use the scan tool (MUT-II) to measure the ATF temperature, and set the ATF temperature to 20°C (68°F).
2. Remove the solenoid valve harness and oil temperature sensor connector.

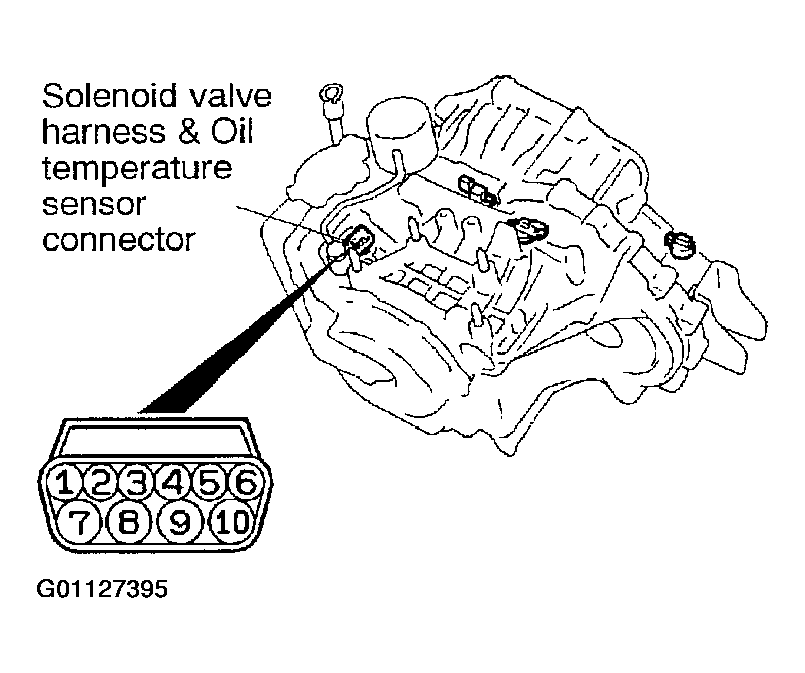

  Fig 6: Removing Solenoid Valve Harness & Oil Temperature Sensor Connector
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Measure the resistances between the applicable solenoid valve terminals.
4. Check that the values measured in steps 1 and 3 are within the following standard value range.
  Standard value:

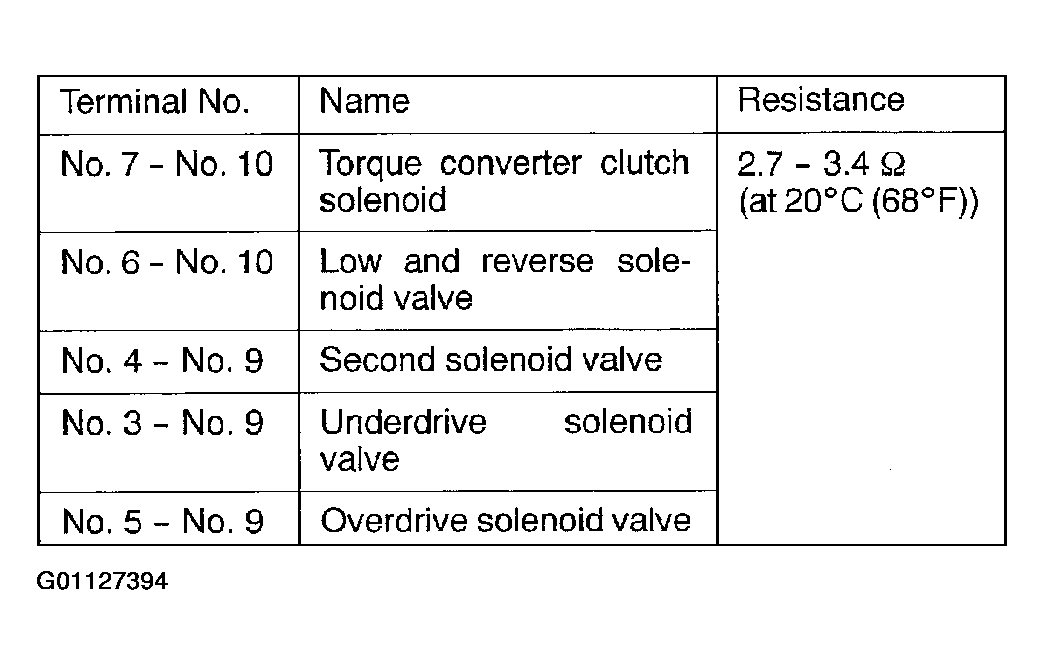

  Fig 7: Checking Values Between Terminals
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. If the values are within the range, check the power supply and the ground circuit.
6. If the values are outside the range, drain the ATF and remove the valve body.
7. Disconnect the connectors of each solenoid valve.

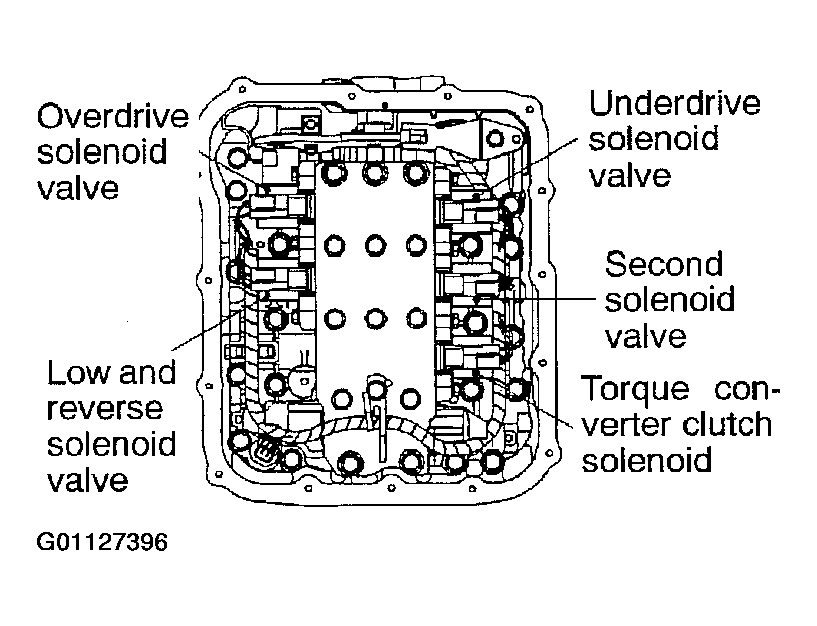

  Fig 8: Disconnecting Connectors Of Each Solenoid Valve
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Measure the resistance between terminals 1 and 2 of each solenoid valve.
  1. Standard value: 2.7 - 3.4 ohm (at 20°C (68°F)
  Fig 9: Measuring Resistance Between Terminals
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. If the resistance is not within the standard value, replace the solenoid valve.
10. If the resistance is within the standard value, check the solenoid valve harness and the oil temperature sensor connector. If the above procedure indicates that there is no problem with the resistance and the harness, check and replace the solenoid valve O-ring.
