LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2002
>>
Mirage LS, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Overhaul
>>
Transfer Drive Gear
>>
Disassembly And Reassembly
>>
Notes
Disassembly And Reassembly: Notes

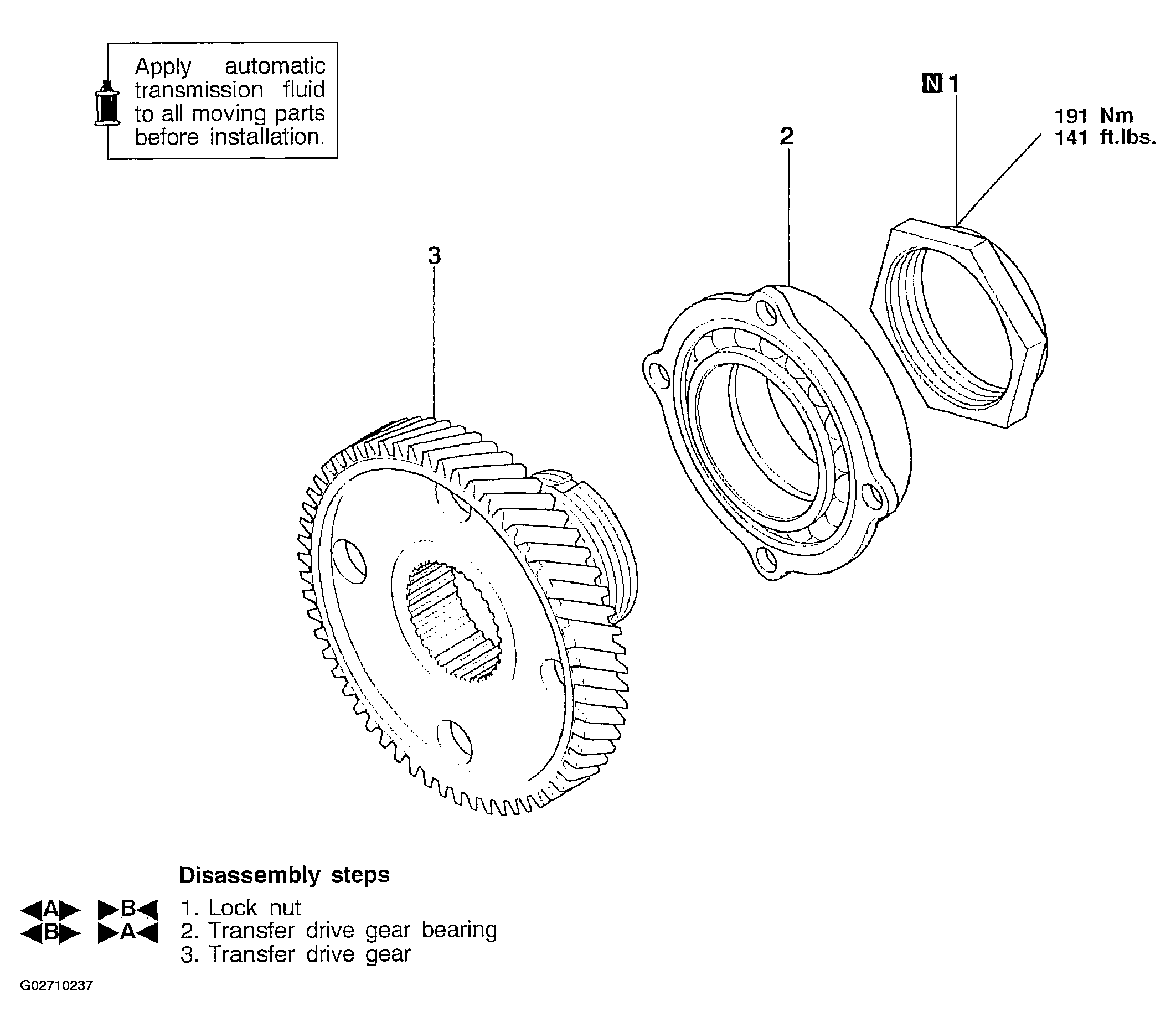

Fig 1: Exploded View Of Transfer Drive Gear Components (If Equipped)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
