Disassembly And Reassembly: Disassembly

CAUTION:
  1. Because the automatic transaxle is manufactured from high-precision parts, sufficient care must be taken not to scratch or damage these parts during disassembly and reassembly.
  2. The working area should be covered with a rubber mat to keep it clean at all times.
  3. Do not wear any cloth gloves and do not use any rags during disassembly. Use nylon cloth if you need to use something.
  4. Parts which have been disassembled should all be cleaned. Metal parts can be cleaned with normal detergent, but they should be dried completely using compressed air.
  5. Clutch discs, plastic thrust plates and rubber parts should be cleaned with automatic transmission fluid (ATF) so that they do not become dirty.
  6. If the transmission body has been damaged, disassemble and clean the cooler system also.
  1. Remove the torque converter. Prior to disassembly, measure input shaft end play by positioning dial indicator on input shaft.

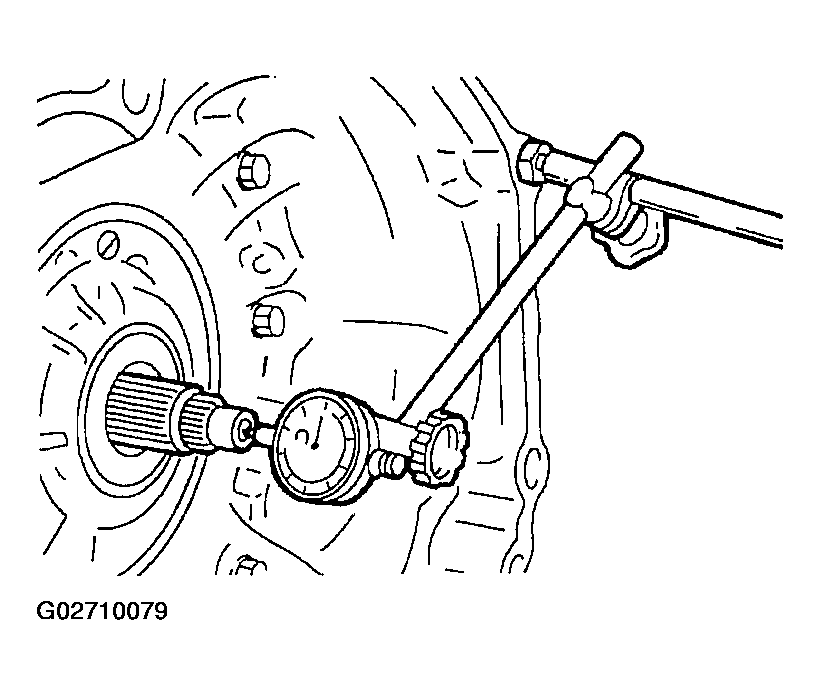

    Fig 1: Measuring Input Shaft End Play
    G02710079Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Remove each bracket.
  3. Remove the oil level gauge.
  4. Remove the eye bolt, gasket.
  5. Remove the oil cooler feed tube.
  6. Remove the input shaft speed sensor and output shaft speed sensor.

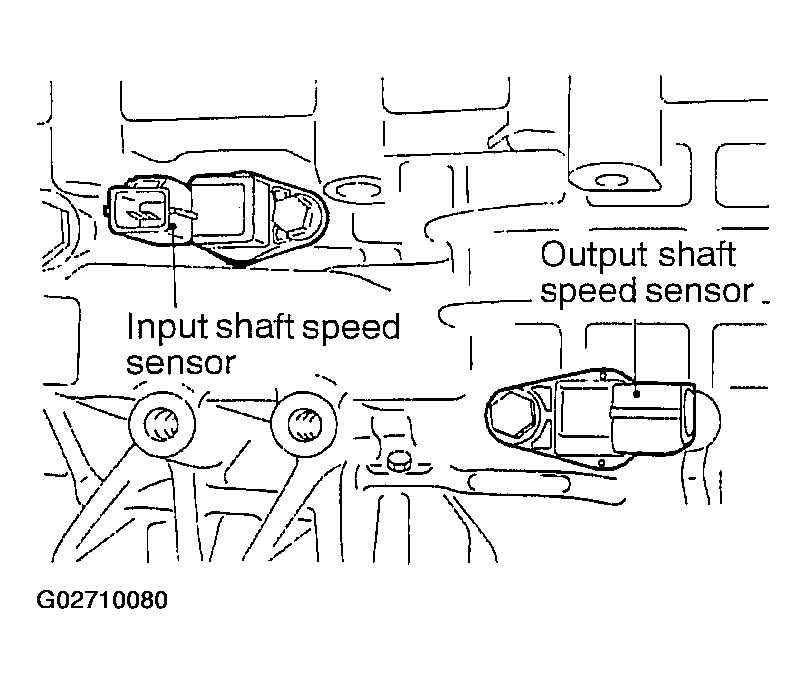

    Fig 2: Removing Input Shaft Speed Sensor & Output Shaft Speed Sensor
    G02710080Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. Remove the manual control lever, and then remove the park/neutral position switch.
    CAUTION: Make sure that the valve body is installed before removing the manual control lever locking nut.

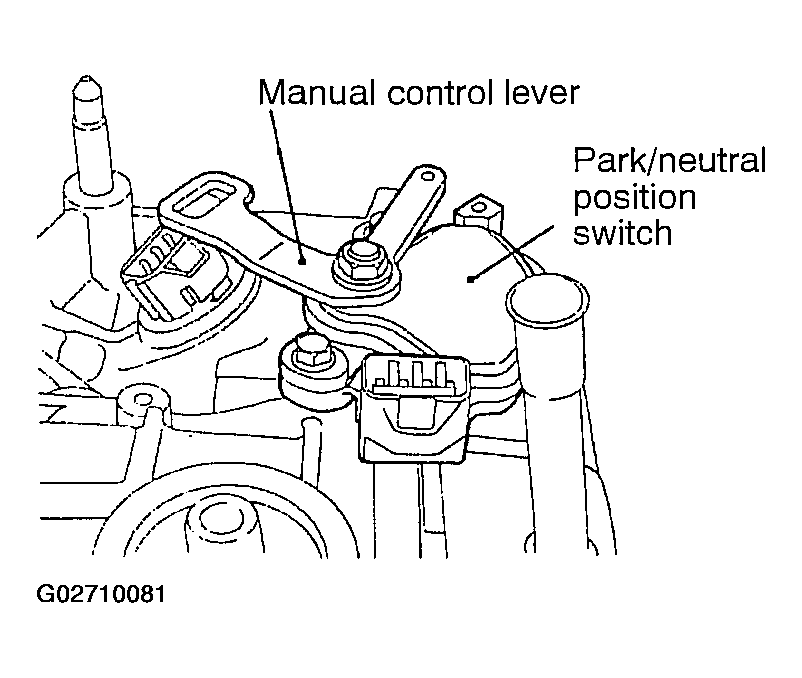

    Fig 3: Removing Manual Control Lever & Park/Neutral Position Switch
    G02710081Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. Remove the speedometer gear.

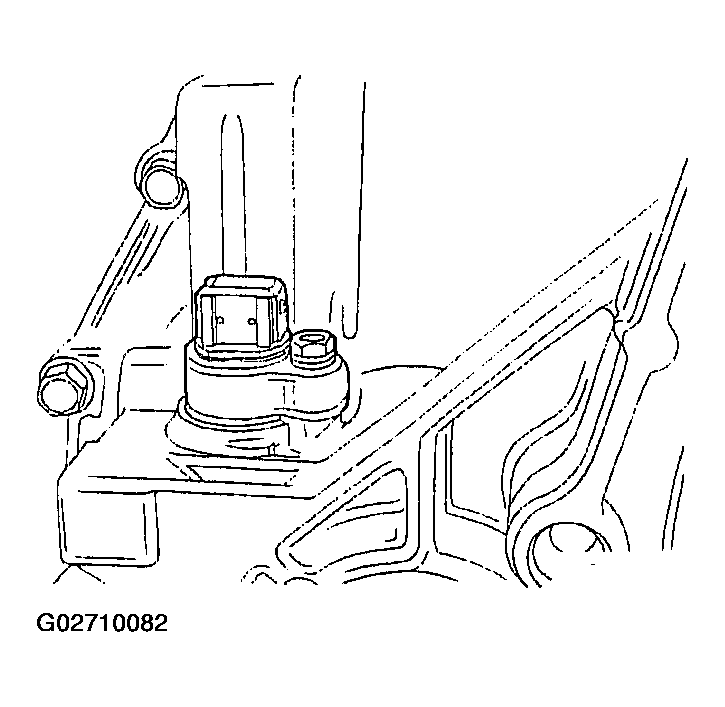

    Fig 4: Removing Speedometer Gear
    G02710082Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. Remove the valve body cover.

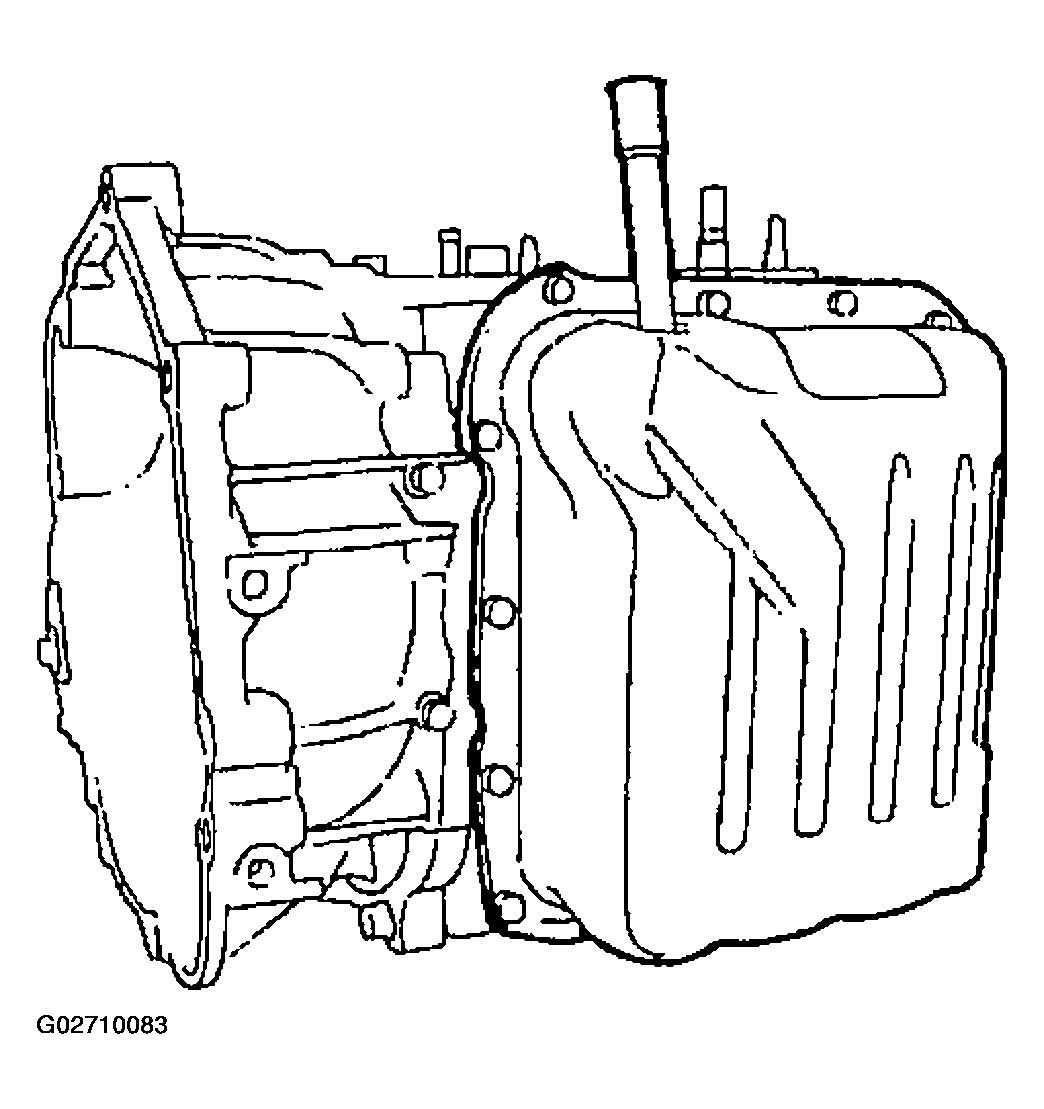

    Fig 5: Removing Valve Body Cover
    G02710083Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. Remove the manual control shaft detent.
    Fig 6: Removing Manual Control Shaft Detent
    G02710084Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  11. Disconnect the harness connectors of the valve body.

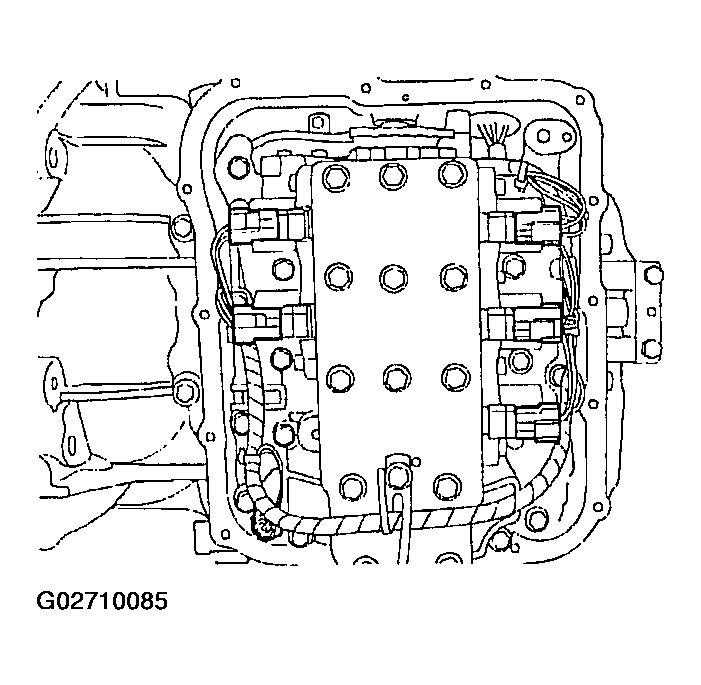

    Fig 7: Disconnecting Harness Connectors At Valve Body
    G02710085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  12. Remove the valve body mounting bolts (28 pieces).
  13. Remove the fluid temperature sensor (if equipped).
    CAUTION: Make sure that the manual control lever and the park/neutral position switch are removed.

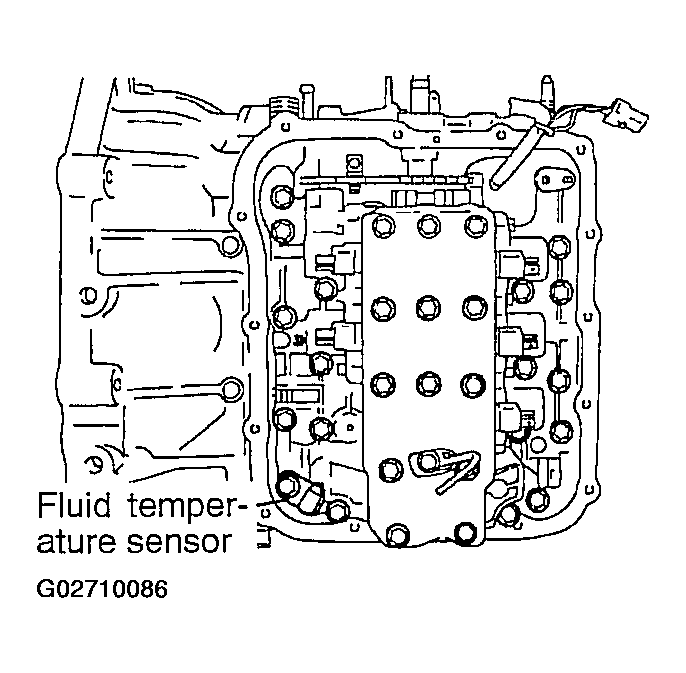

    Fig 8: Removing Valve Body Mounting Bolts (28) & Fluid Temperature Sensor
    G02710086Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  14. Remove the valve body, gasket and the steel balls (2 pieces).
    CAUTION: Do not lose the steel balls (2 pieces).

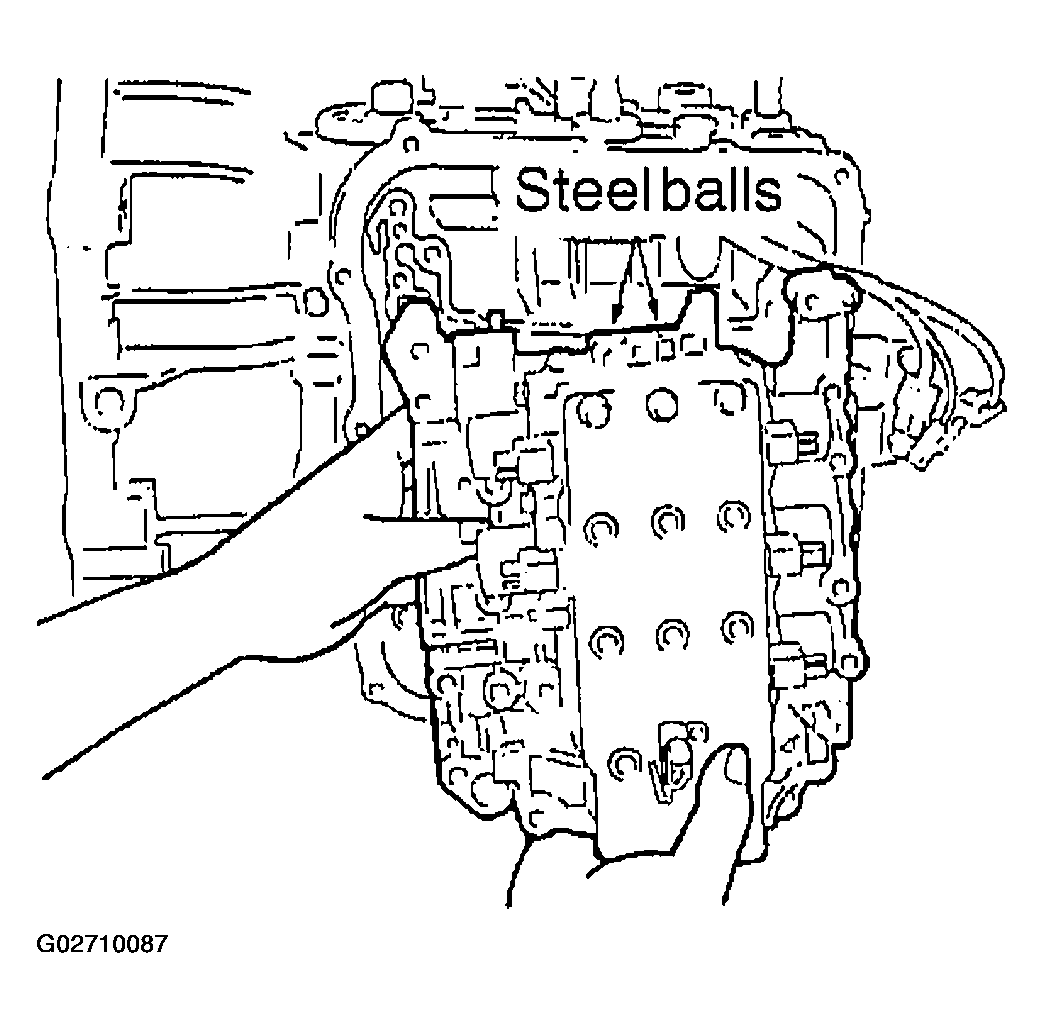

    Fig 9: Removing Valve Body & Steel Balls
    G02710087Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  15. Remove the snap ring, and then remove the solenoid valve harness.

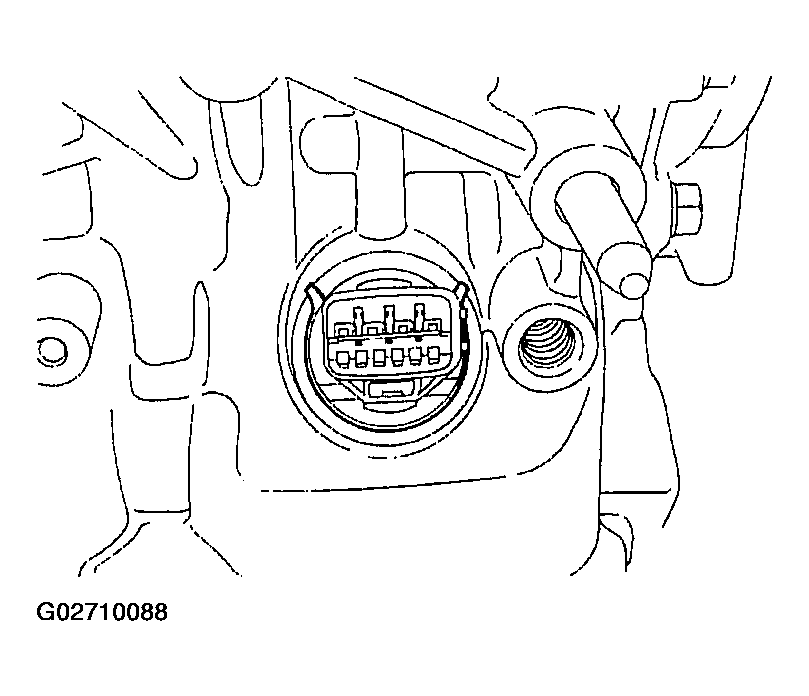

    Fig 10: Removing Snap Ring & Solenoid Valve Harness
    G02710088Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  16. Remove the strainer and the second brake retainer oil seal.

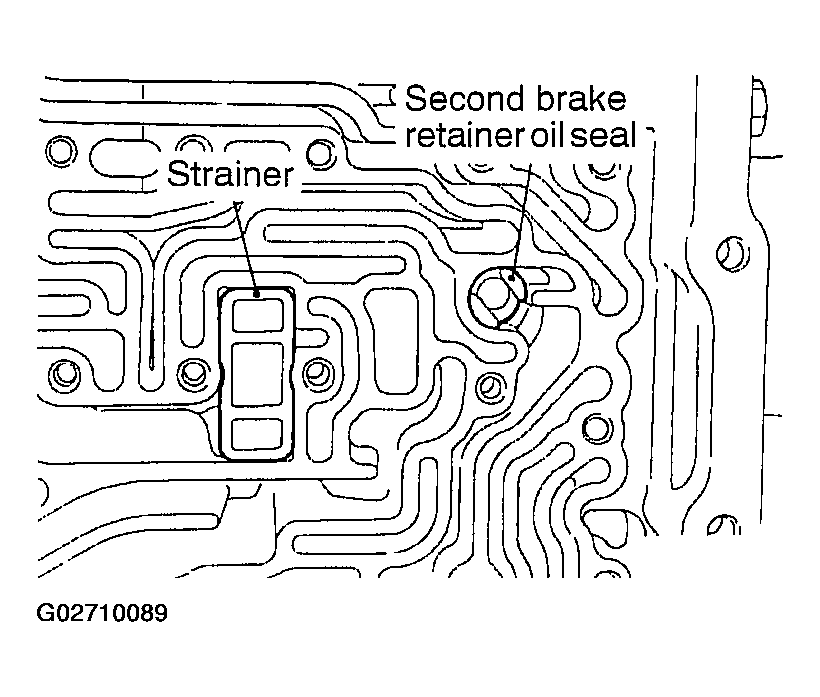

    Fig 11: Removing Strainer & Second Brake Retainer Oil Seal
    G02710089Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  17. Remove each accumulator piston and spring. Refer to Fig 12 and ACCUMULATOR IDENTIFICATION  table.

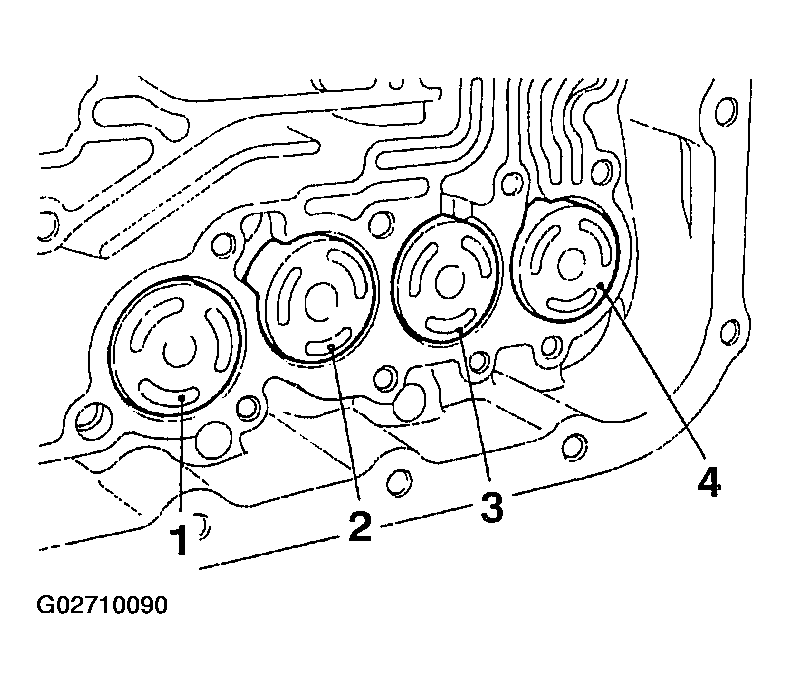

    Fig 12: Locating Accumulators
    G02710090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    ACCUMULATOR IDENTIFICATION

    No. Name
    1 For low-reverse brake
    2 For underdrive clutch
    3 For second brake
    4 For overdrive clutch
  18. Remove the manual control lever shaft roller.
  19. Remove the manual control lever shaft and the parking pawl rod.

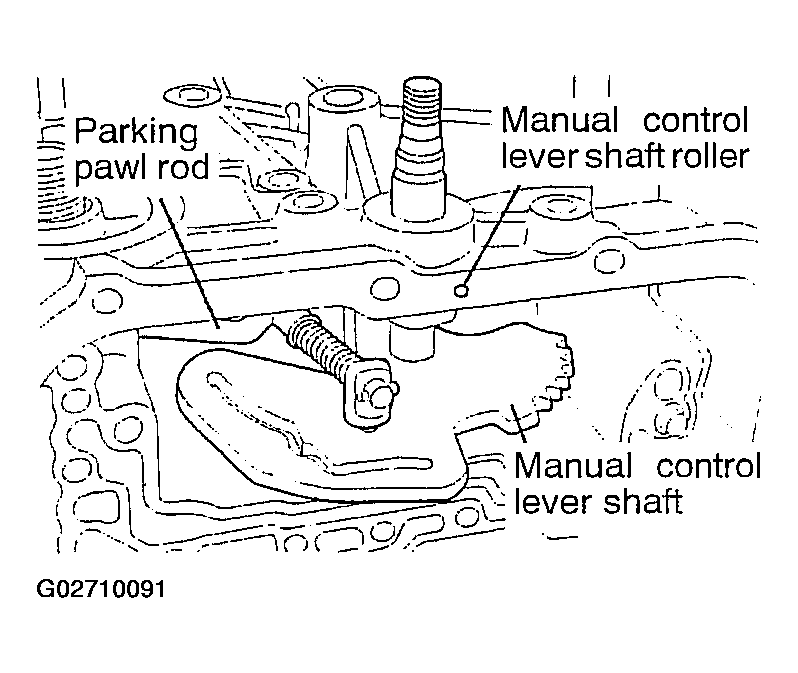

    Fig 13: Removing Manual Control Lever Shaft Roller, Lever Shaft & Parking Pawl Rod
    G02710091Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  20. Remove the torque converter housing mounting bolts (18 pieces), and then remove the torque converter housing.

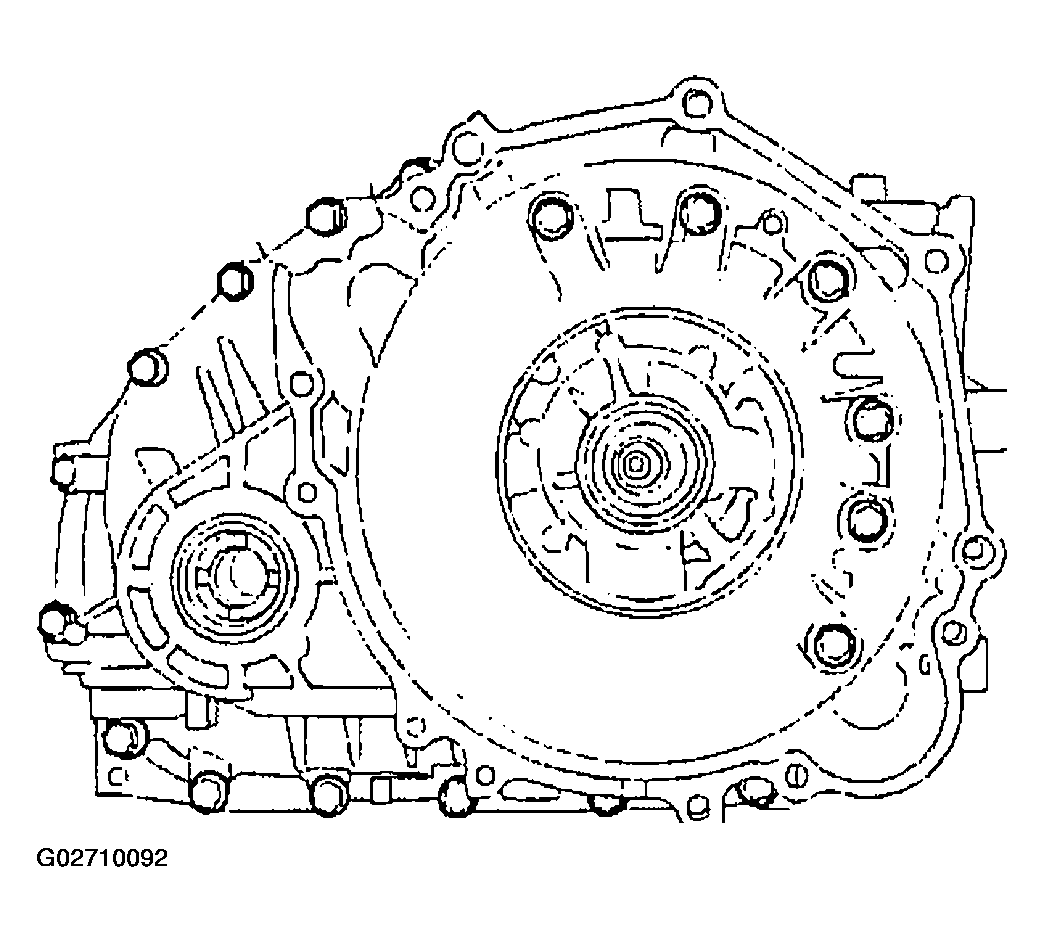

    Fig 14: Removing Torque Converter Housing Bolts
    G02710092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  21. Remove the O-rings (2 pieces).

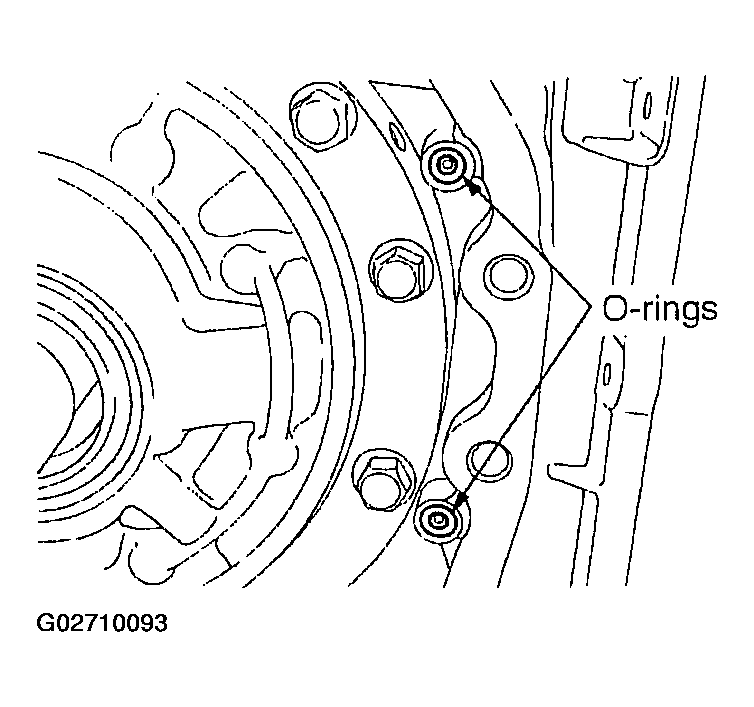

    Fig 15: Removing O-Rings
    G02710093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  22. Remove the differential and the spacer. < F4A41 >

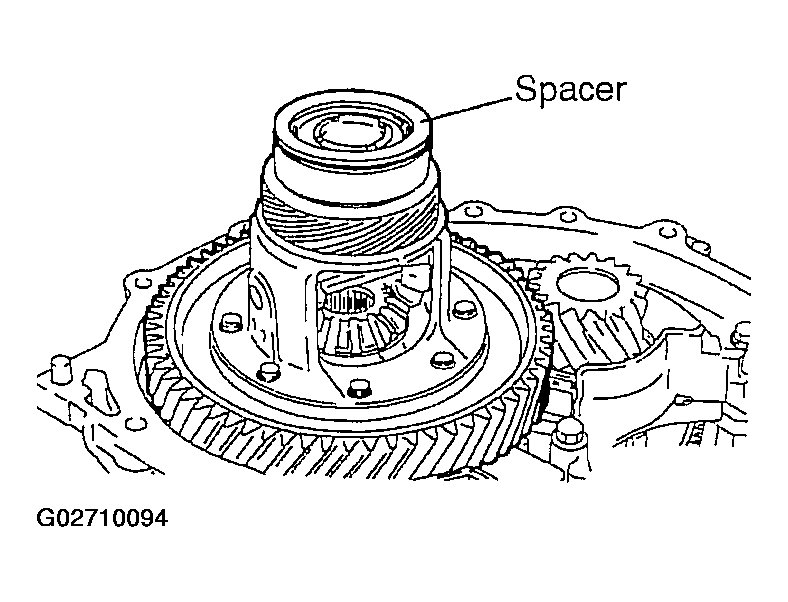

    Fig 16: Removing Differential & Spacer (F4A41)
    G02710094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  23. Remove the differential. < F4A42 >
    Fig 17: Removing Differential (F4A42)
    G02710095Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  24. Remove the oil filter.
    Fig 18: Removing Oil Filter
    G02710096Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  25. Remove the oil pump mounting bolts (6 pieces).
  26. Install the special tool (MD998333) in the hole A.

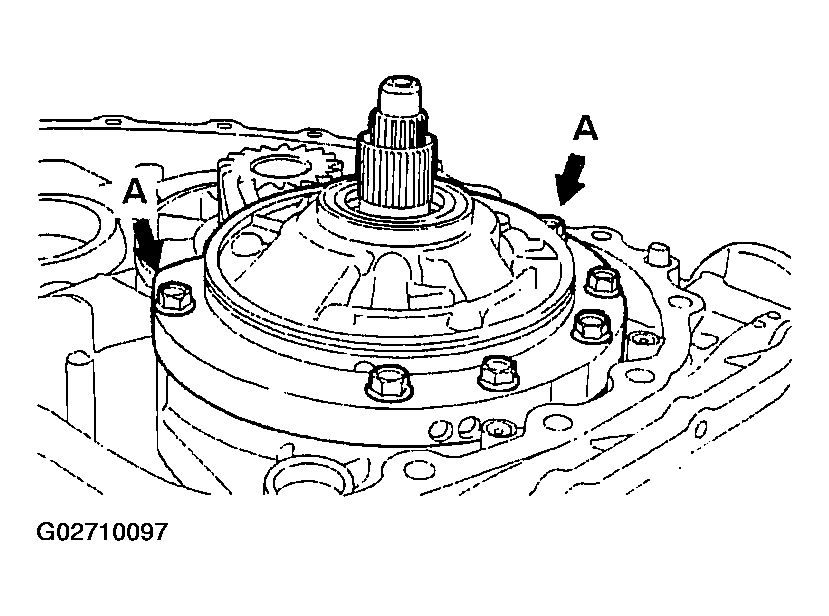

    Fig 19: Locating Holes For Special Tool Installation
    G02710097Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  27. Screw the special tools to remove the oil pump.
  28. Remove the oil pump gasket.

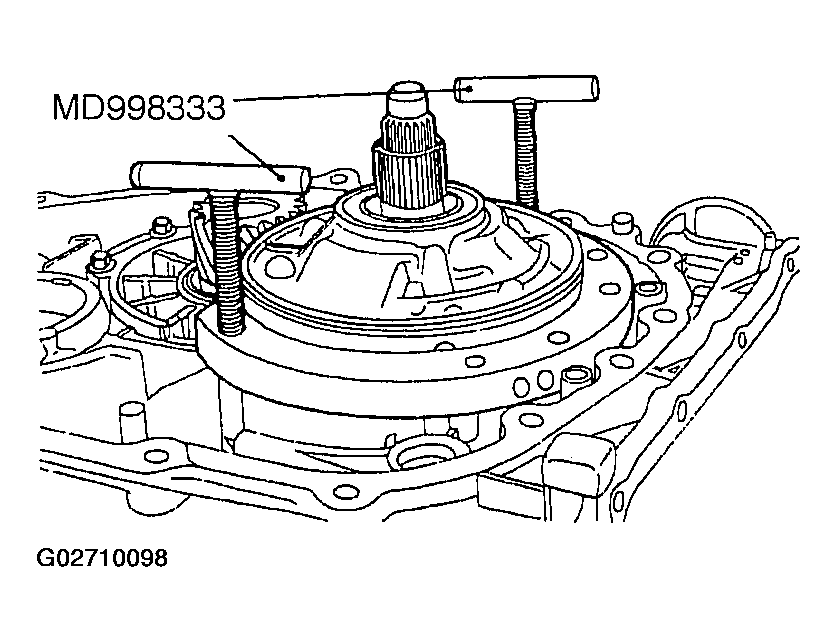

    Fig 20: Removing Oil Pump Using Special Tools
    G02710098Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  29. Remove thrust washer #1.

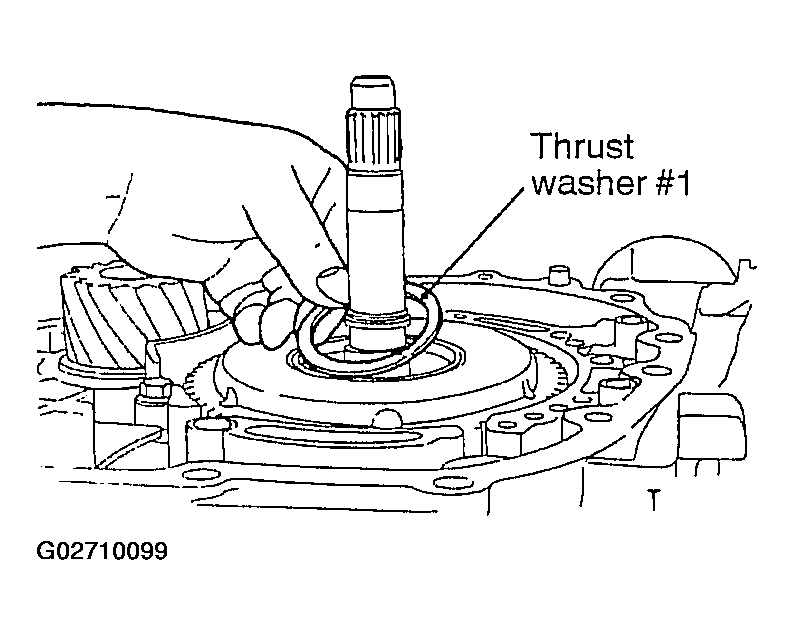

    Fig 21: Removing Thrust Washer #1
    G02710099Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  30. Hold the input shaft, and then remove the underdrive clutch.

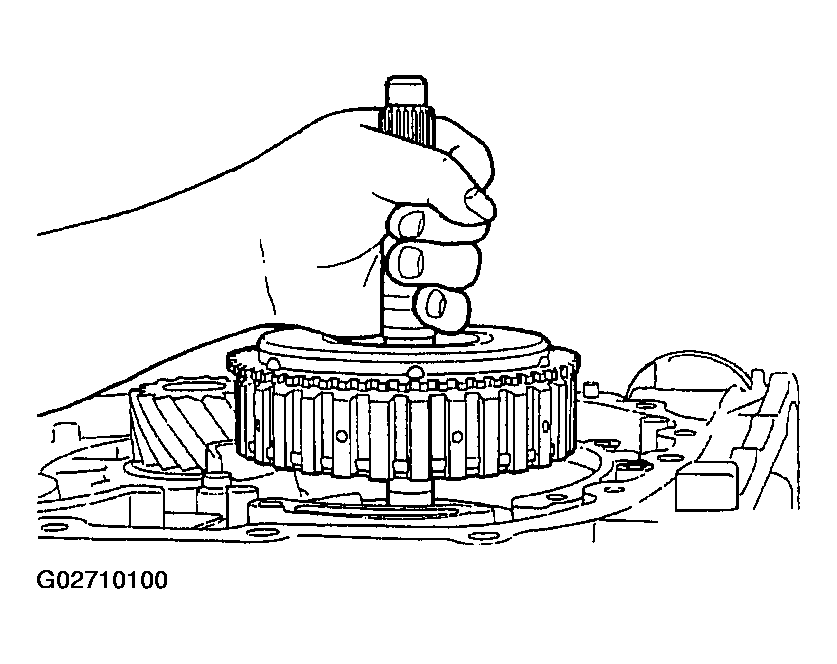

    Fig 22: Removing Underdrive Clutch
    G02710100Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  31. Remove thrust bearing #2.
    Fig 23: Removing Thrust Bearing #2
    G02710101Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  32. Remove the underdrive clutch hub.

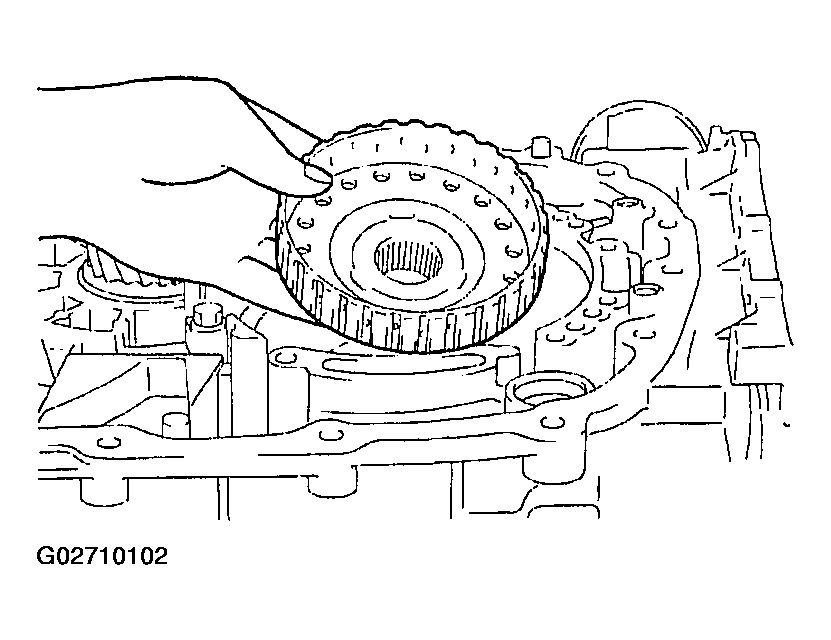

    Fig 24: Removing Underdrive Clutch Hub
    G02710102Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  33. Remove the rear cover.

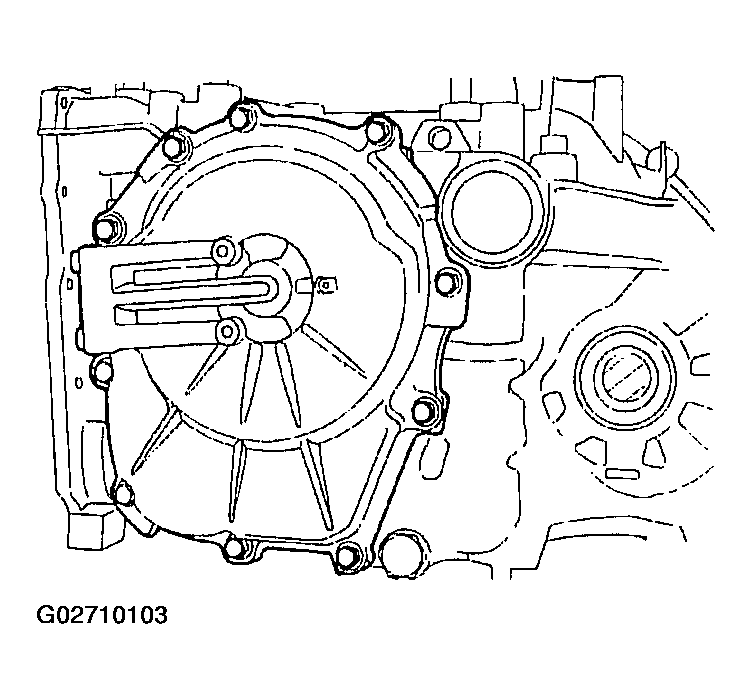

    Fig 25: Removing Rear Cover
    G02710103Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  34. Remove the thrust race #8.
  35. Remove the seal rings (4 pieces) from rear cover.
  36. Remove the input shaft rear bearing.
  37. Remove the O-rings (3 pieces).

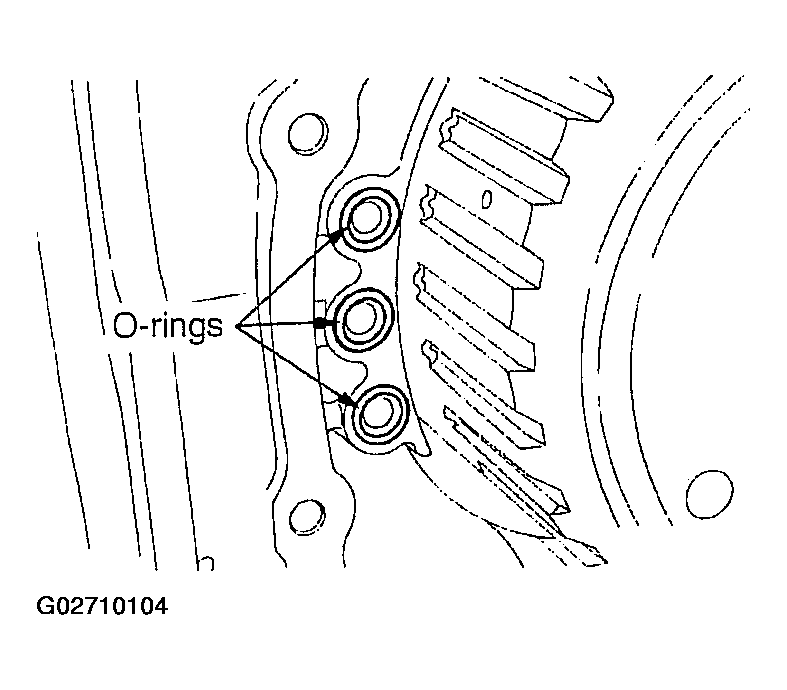

    Fig 26: Removing O-Rings
    G02710104Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  38. Remove the reverse and overdrive clutch and the thrust bearing #7.
    Fig 27: Removing Reverse & Overdrive Clutch, & Thrust Bearing #7
    G02710105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  39. Remove the overdrive clutch hub and the thrust bearing #6.

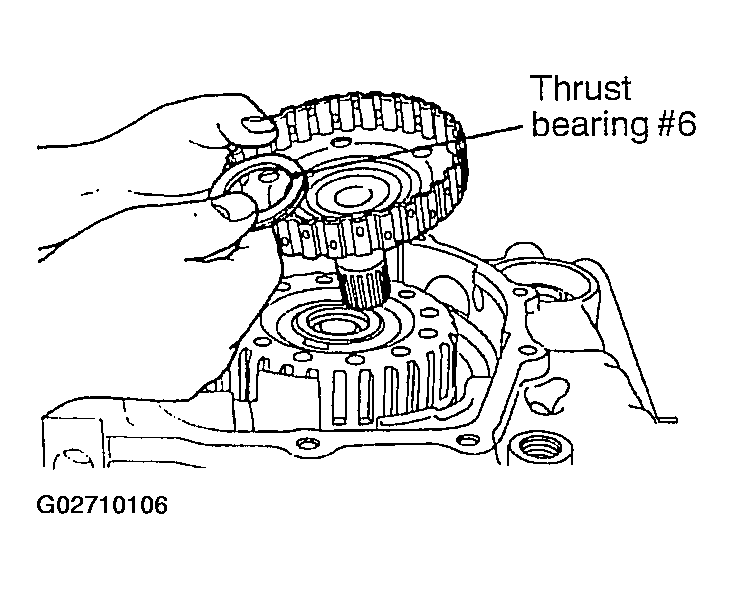

    Fig 28: Removing Overdrive Clutch Hub & Thrust Bearing #6
    G02710106Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  40. Remove thrust bearing #5.
    Fig 29: Removing Thrust Bearing #5
    G02710107Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  41. Remove the planetary reverse sun gear.

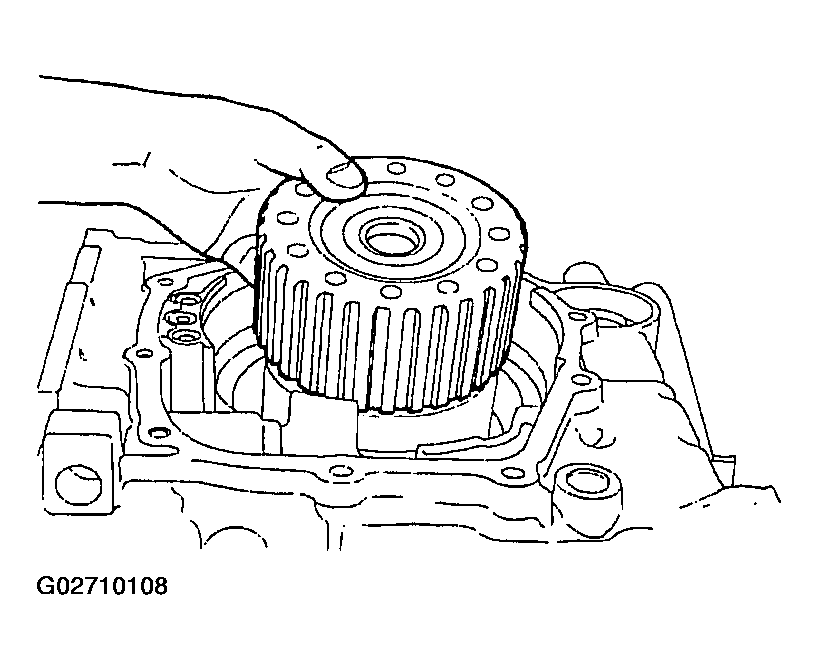

    Fig 30: Removing Planetary Reverse Sun Gear
    G02710108Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  42. Remove the snap ring.

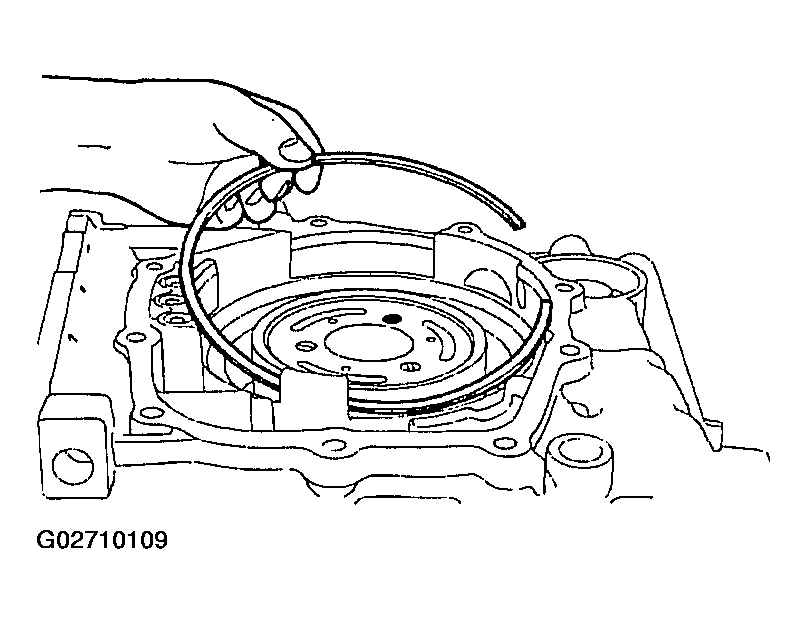

    Fig 31: Removing Snap Ring
    G02710109Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  43. Remove the second brake piston and the return spring.

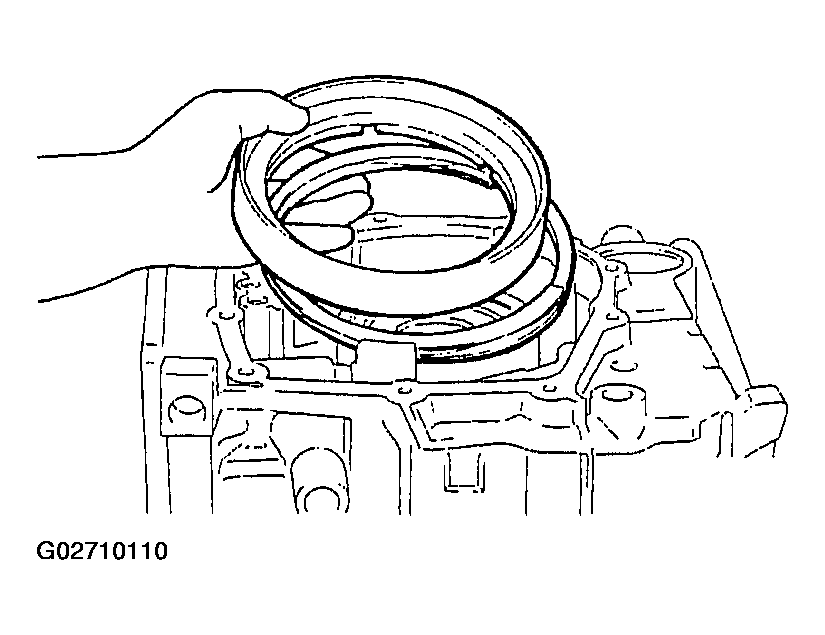

    Fig 32: Removing Second Brake Piston & Return Spring
    G02710110Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  44. Remove the pressure plate, brake discs and brake plate(s). Refer to Fig 33 and NUMBER OF BRAKE DISCS & PLATES  table.
    Fig 33: Removing Pressure Plate, Brake Discs & Brake Plate(s)
    G02710111Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NUMBER OF BRAKE DISCS & PLATES

    A/T Model Brake disc Brake plate Pressure plate
    F4A41 2 1 1
    F4A42 3 2 1
  45. Remove the planetary carrier assembly.
    Fig 34: Removing Planetary Carrier Assembly
    G02710112Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  46. Remove the snap ring.

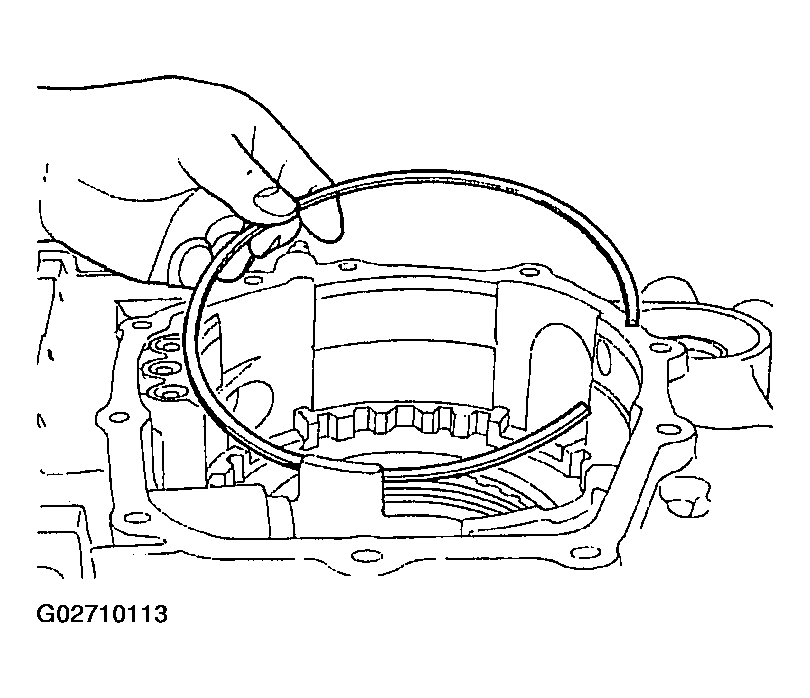

    Fig 35: Removing Snap Ring
    G02710113Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  47. Remove the reaction plate and the brake disc.

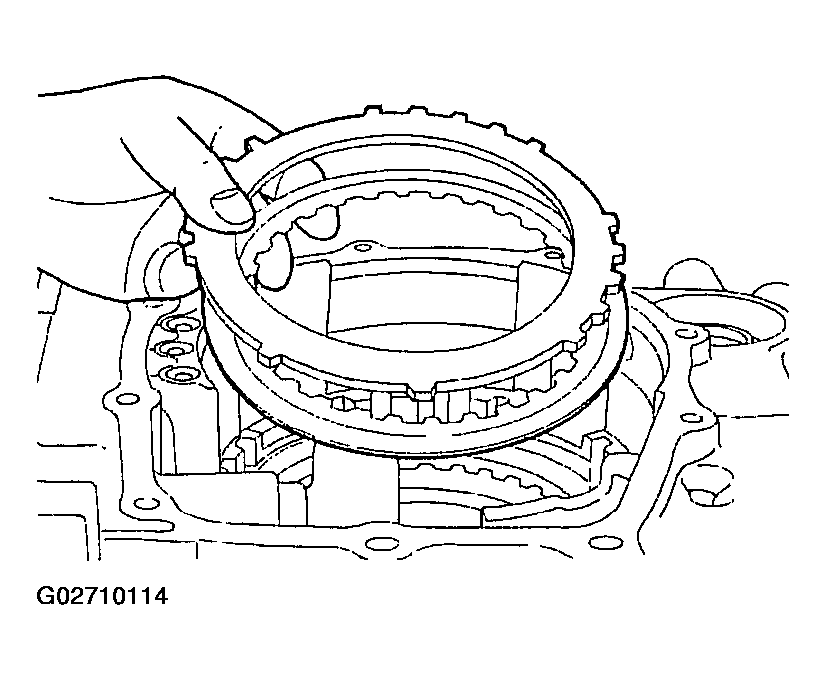

    Fig 36: Removing Reaction Plate & Brake Disc
    G02710114Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  48. Remove the snap ring.

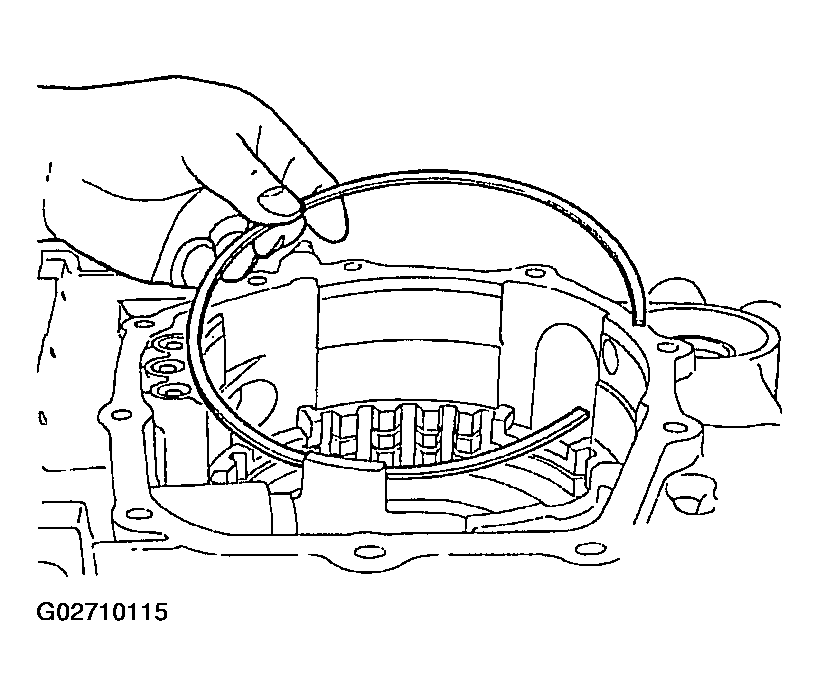

    Fig 37: Removing Snap Ring
    G02710115Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  49. Remove the brake plates, brake discs and pressure plate. Refer to Fig 38 and NUMBER OF BRAKE DISCS & PLATES  table.

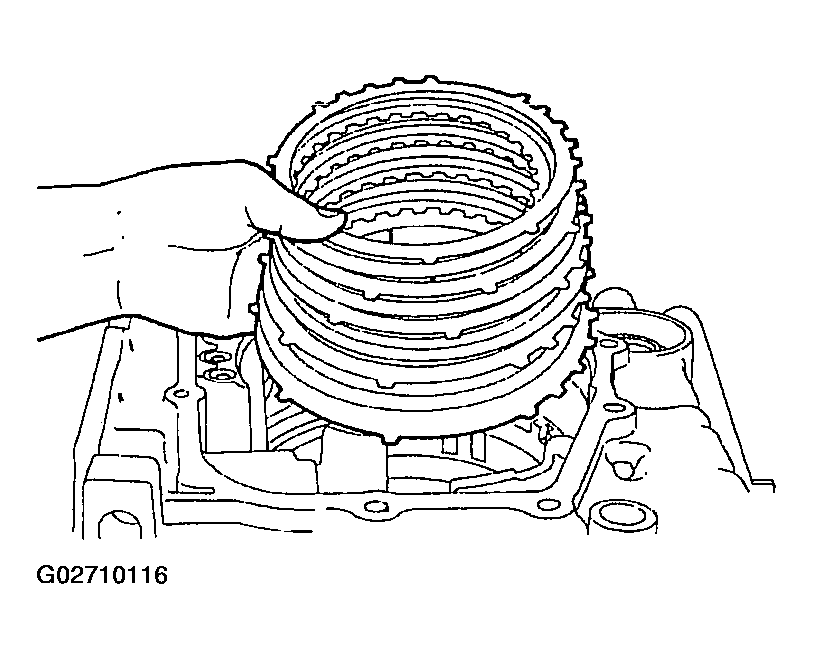

    Fig 38: Removing Brake Plates, Brake Discs & Pressure Plate
    G02710116Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    NUMBER OF BRAKE DISCS & PLATES

    A/T Model Brake disc Brake plate Pressure plate
    F4A41 3 3 1
    F4A42 4 4 1
  50. Remove the wave spring.

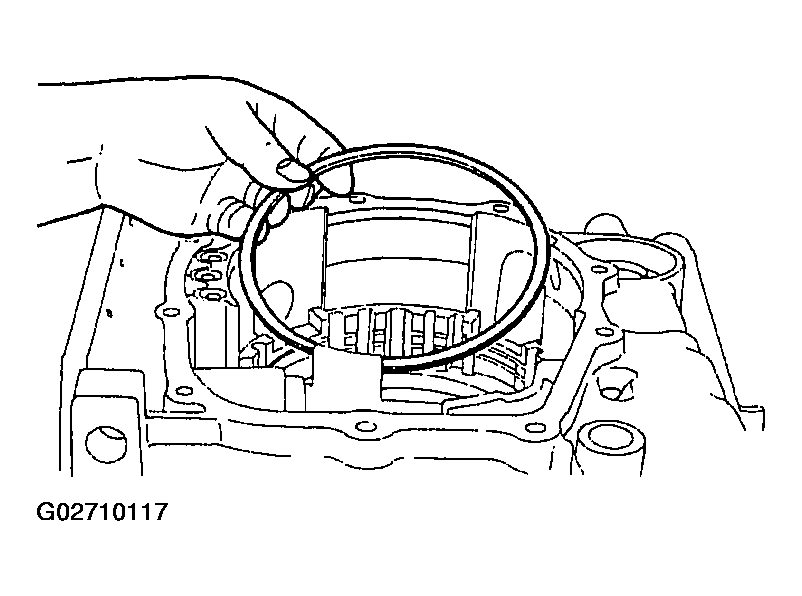

    Fig 39: Removing Wave Spring
    G02710117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  51. Remove the parking pawl shaft, and then remove the spacer and parking pawl spring.

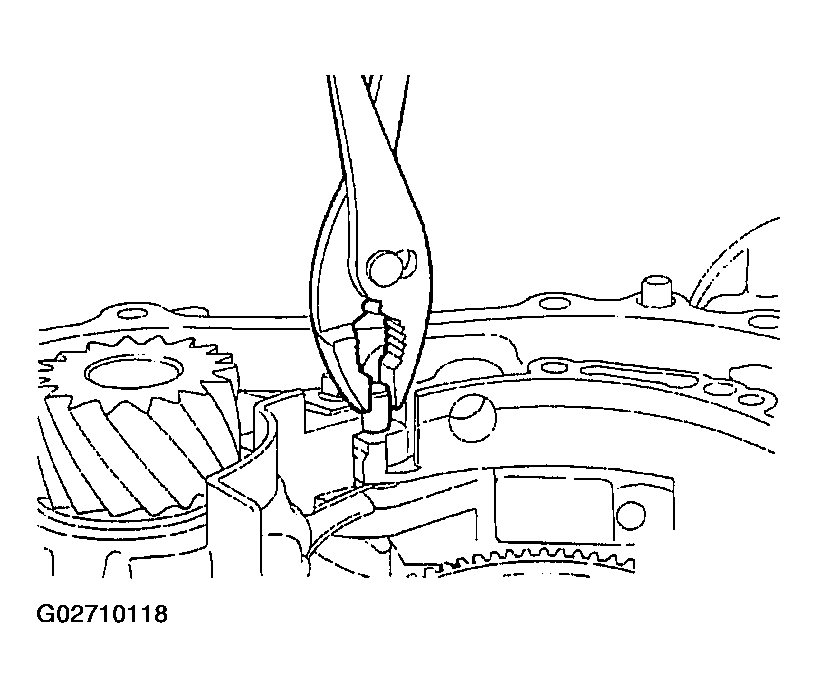

    Fig 40: Removing Parking Pawl Shaft
    G02710118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  52. Remove the two parking roller support shafts, and then remove the parking pawl case and parking roller support.

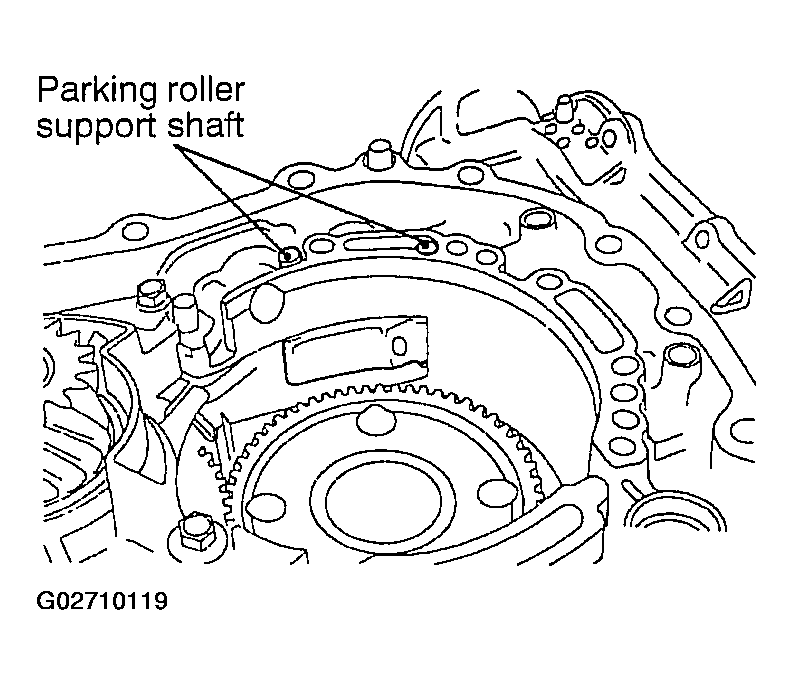

    Fig 41: Removing Parking Roller Support Shafts
    G02710119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  53. Using special tools, compress the one-way clutch inner race.

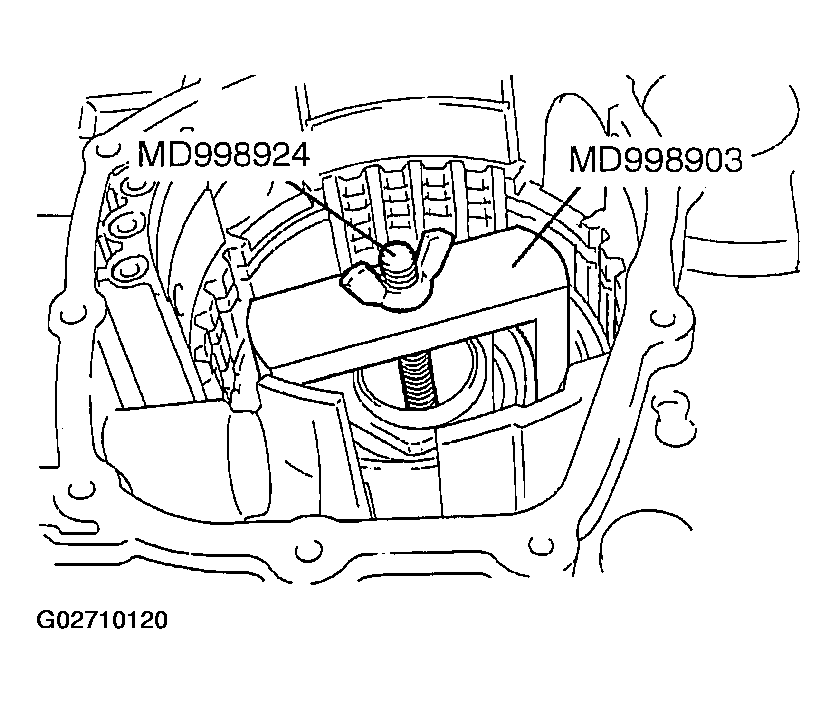

    Fig 42: Compressing One-Way Clutch Inner Race Using Special Tools
    G02710120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  54. Remove the snap ring.
  55. Remove the special tools.
  56. Remove the one-way clutch inner race, O-ring, spring retainer, return spring and low-reverse brake piston.
  57. Remove the three or four transfer drive gear bearing mounting bolts. Then, turn the gear 1/8 turn (45 degree angle) and remove the remaining four or three bolts.

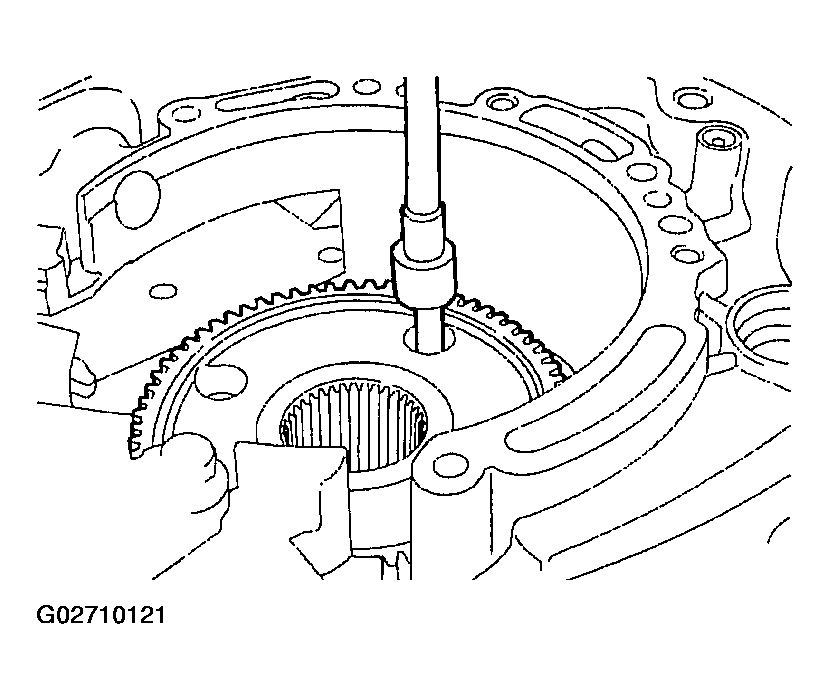

    Fig 43: Removing Transfer Drive Gear Mounting Bolts
    G02710121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  58. Remove the transfer drive gear.

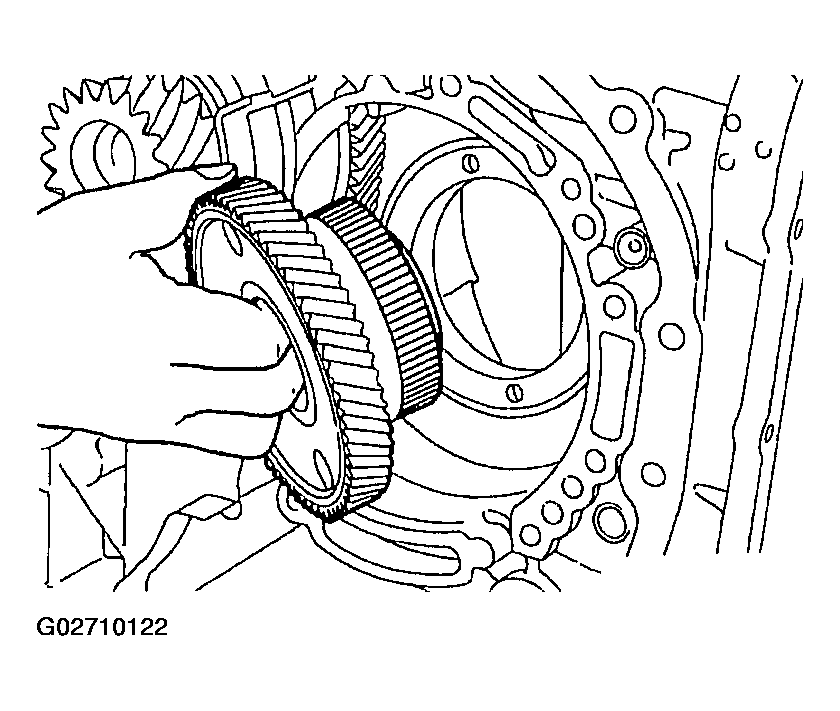

    Fig 44: Removing Transfer Drive Gear
    G02710122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  59. Remove the cap.

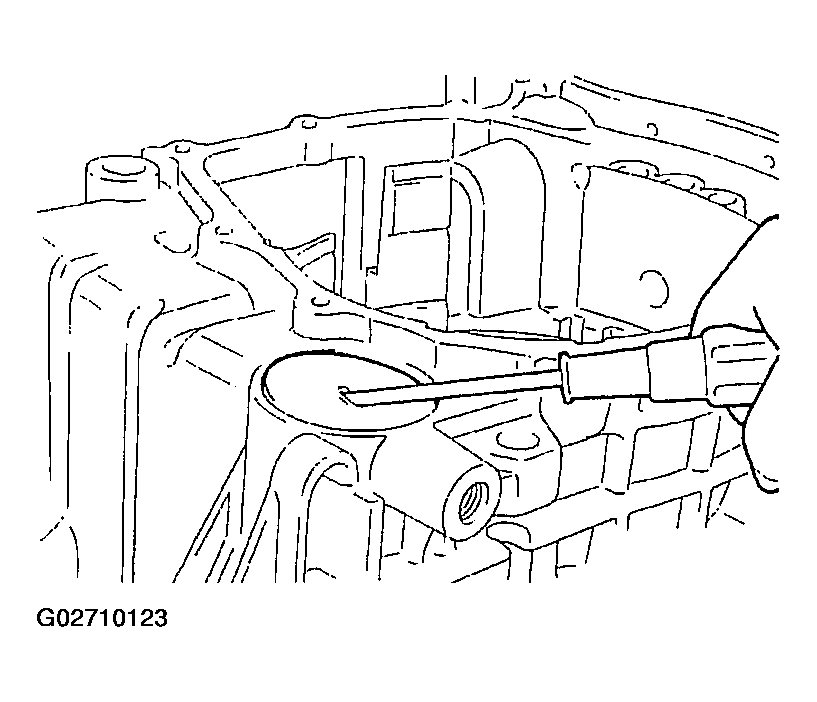

    Fig 45: Removing Cap
    G02710123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  60. Remove the staked nut from the output shaft.

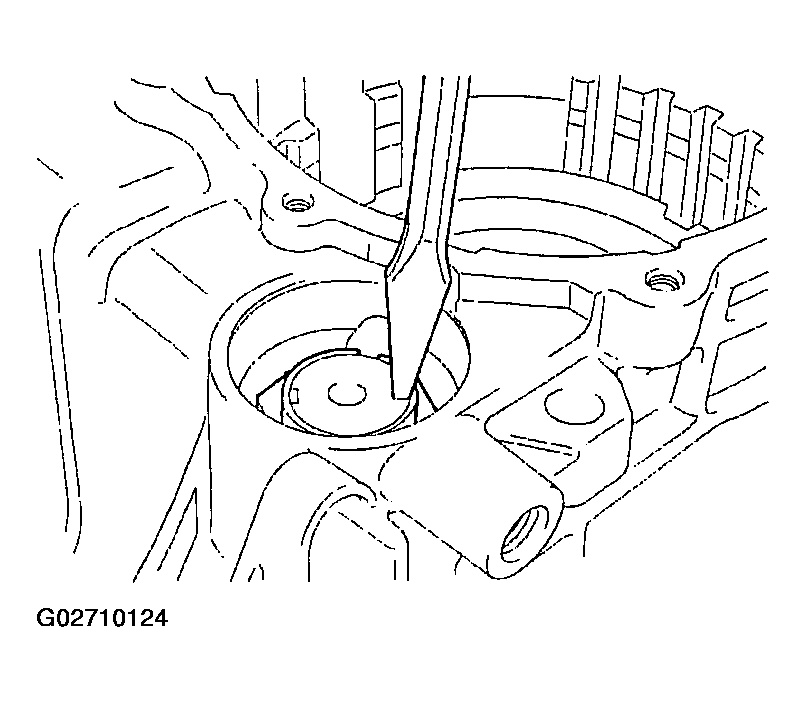

    Fig 46: Removing Staked Nut From Output Shaft
    G02710124Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  61. Use the special tool to remove the output shaft lock nut.
    CAUTION: The lock has left-handed threads.

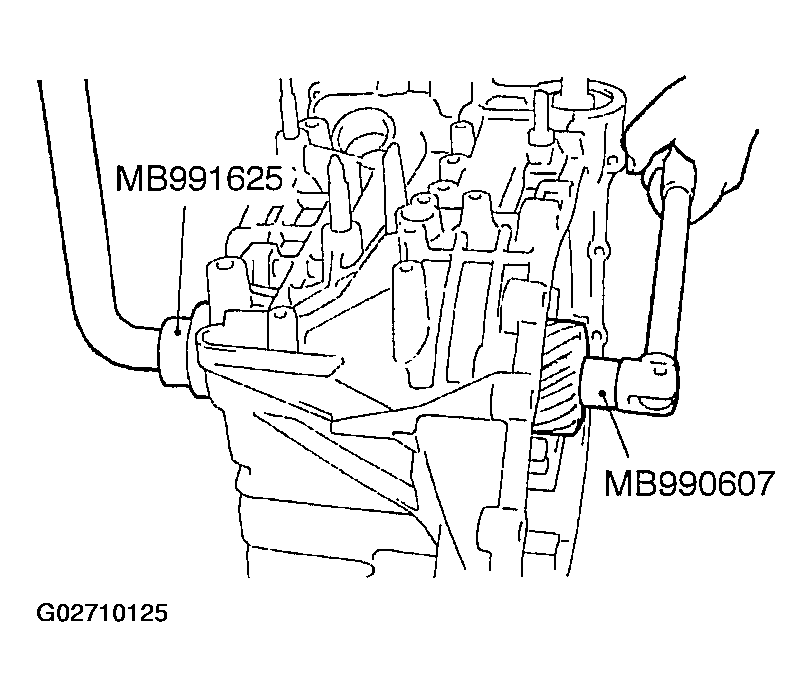

    Fig 47: Removing Output Shaft Lock Nut
    G02710125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  62. Remove the output shaft bearing retainer mounting bolts.

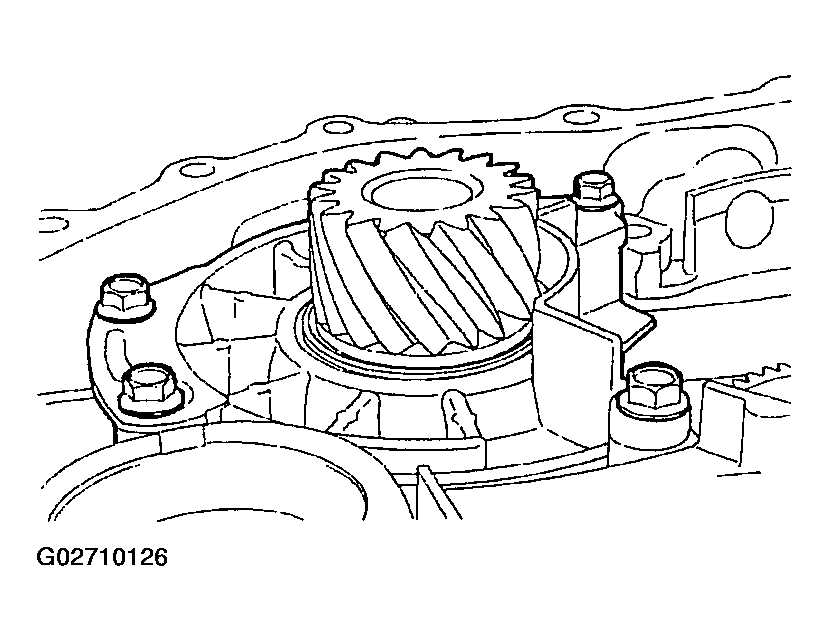

    Fig 48: Removing Output Shaft Bearing Retainer Mounting Bolts
    G02710126Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  63. Tap on the rear of the output shaft to remove the output shaft, taper roller bearing and the collar.

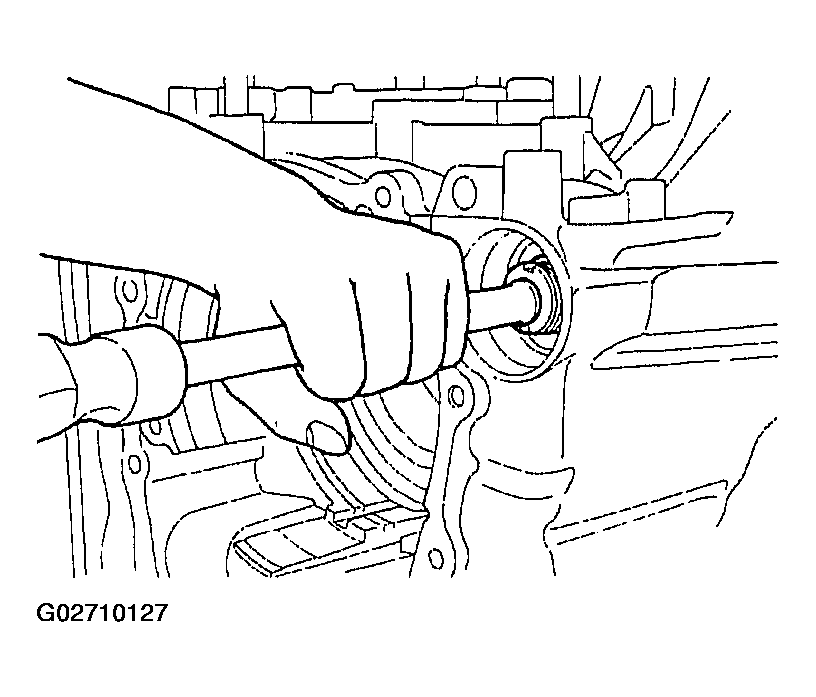

    Fig 49: Tapping On Rear Of Output Shaft
    G02710127Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  64. Remove the spacer and the outer race.
  65. Remove the snap ring.

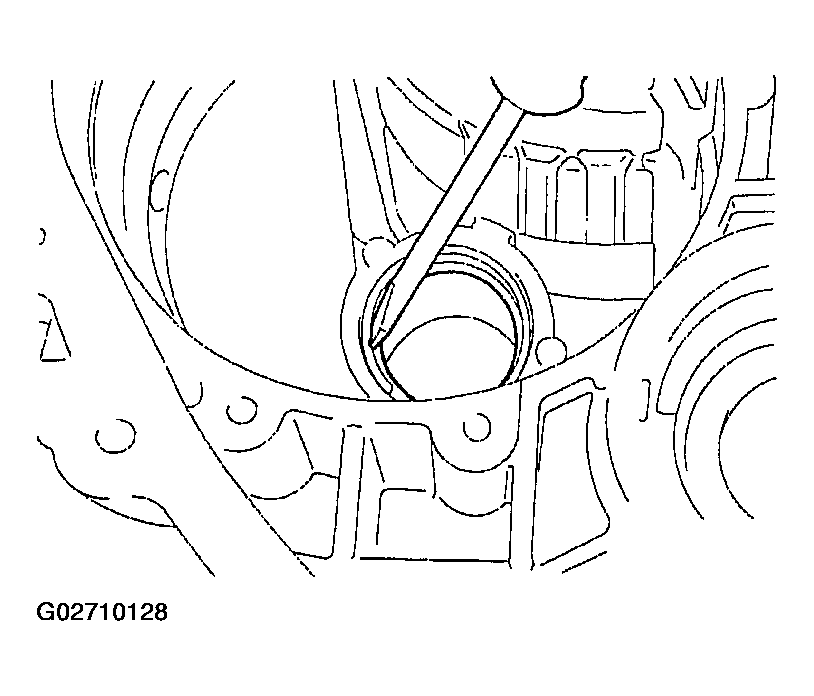

    Fig 50: Removing Snap Ring
    G02710128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  66. Remove the differential bearing outer race and spacer from the torque converter hosing. < F4A42 >
  67. Remove the differential bearing outer race from the transaxle case
