General Information
>>
Sectional View
Sectional View

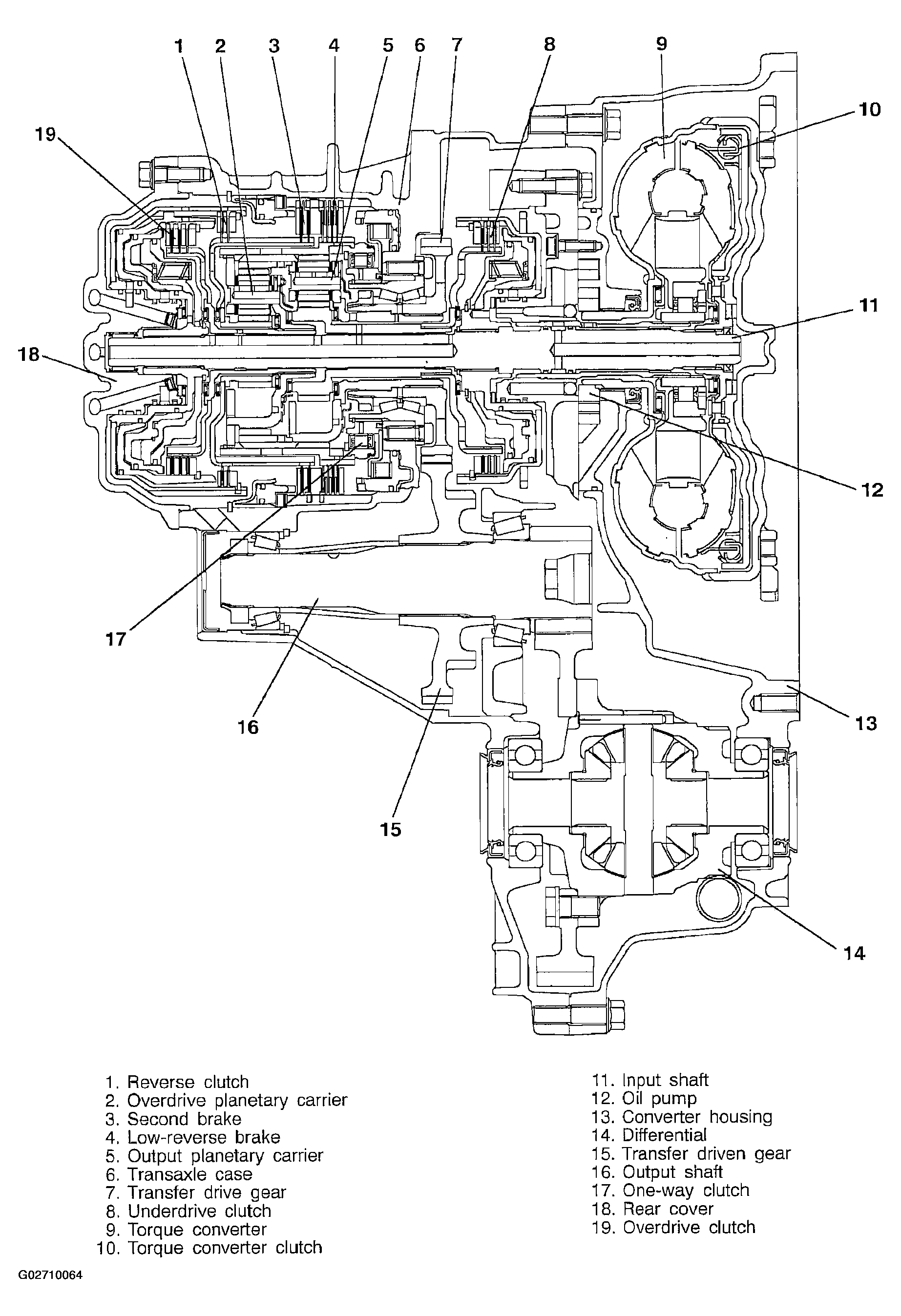

Fig 1: Sectional View < F4A41 >
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

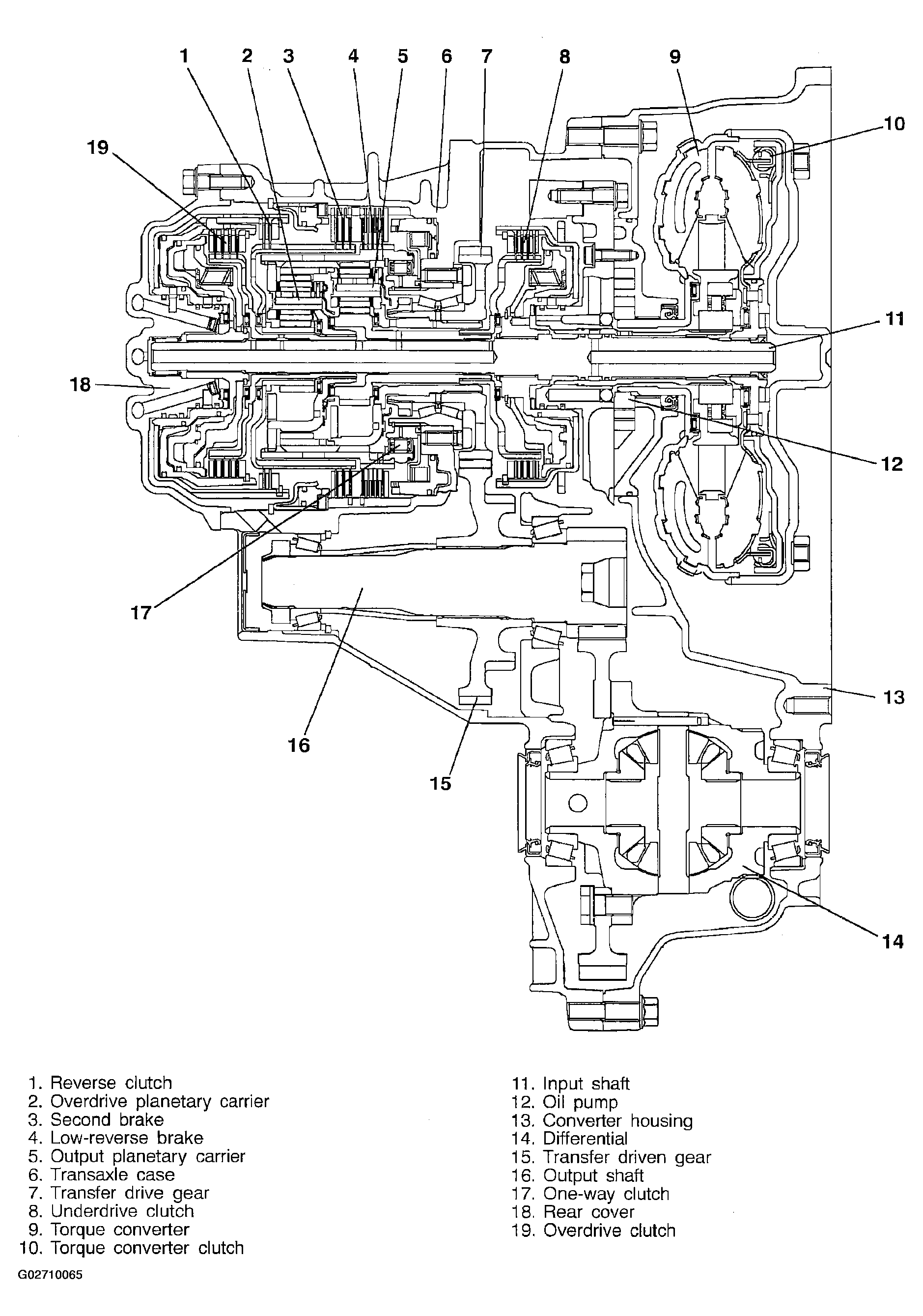

Fig 2: Sectional View < F4A42 >
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
