Remote Control Mirror Assembly Check

Check to be sure that the mirror moves as described in the table, when each terminal is connected to the battery. See Fig 1 .

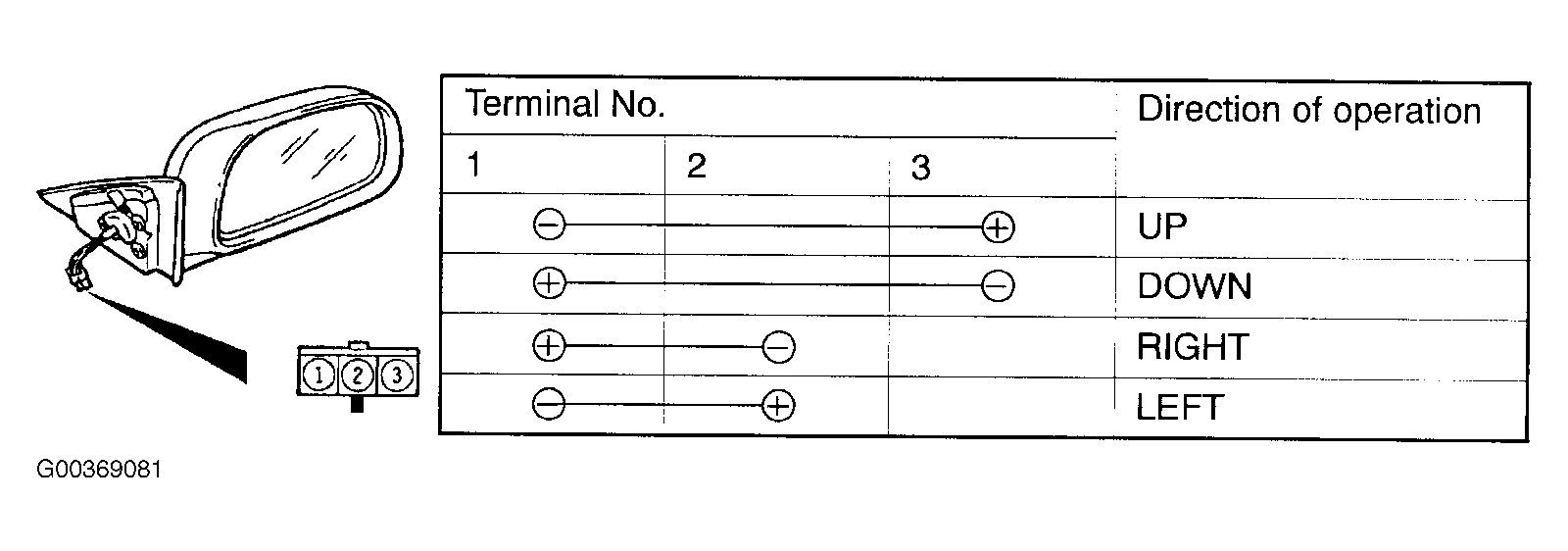

Fig 1: Checking Remote Controlled Mirror Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
