Door Mirror Control Switch Continuity Check

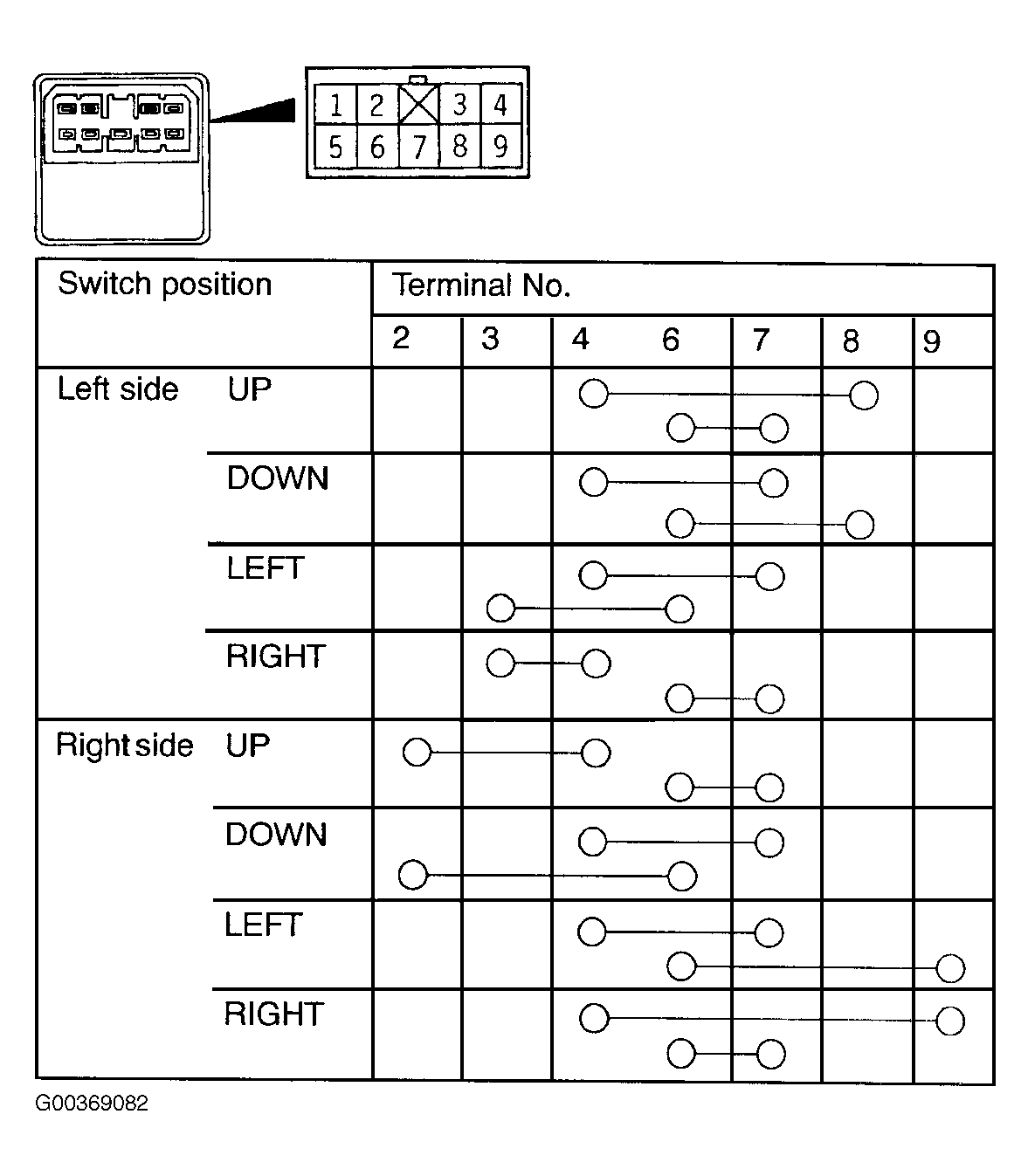

Fig 1: Checking Door Mirror Control Switch Continuity

G00369082

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
