A/T Control Component Layout

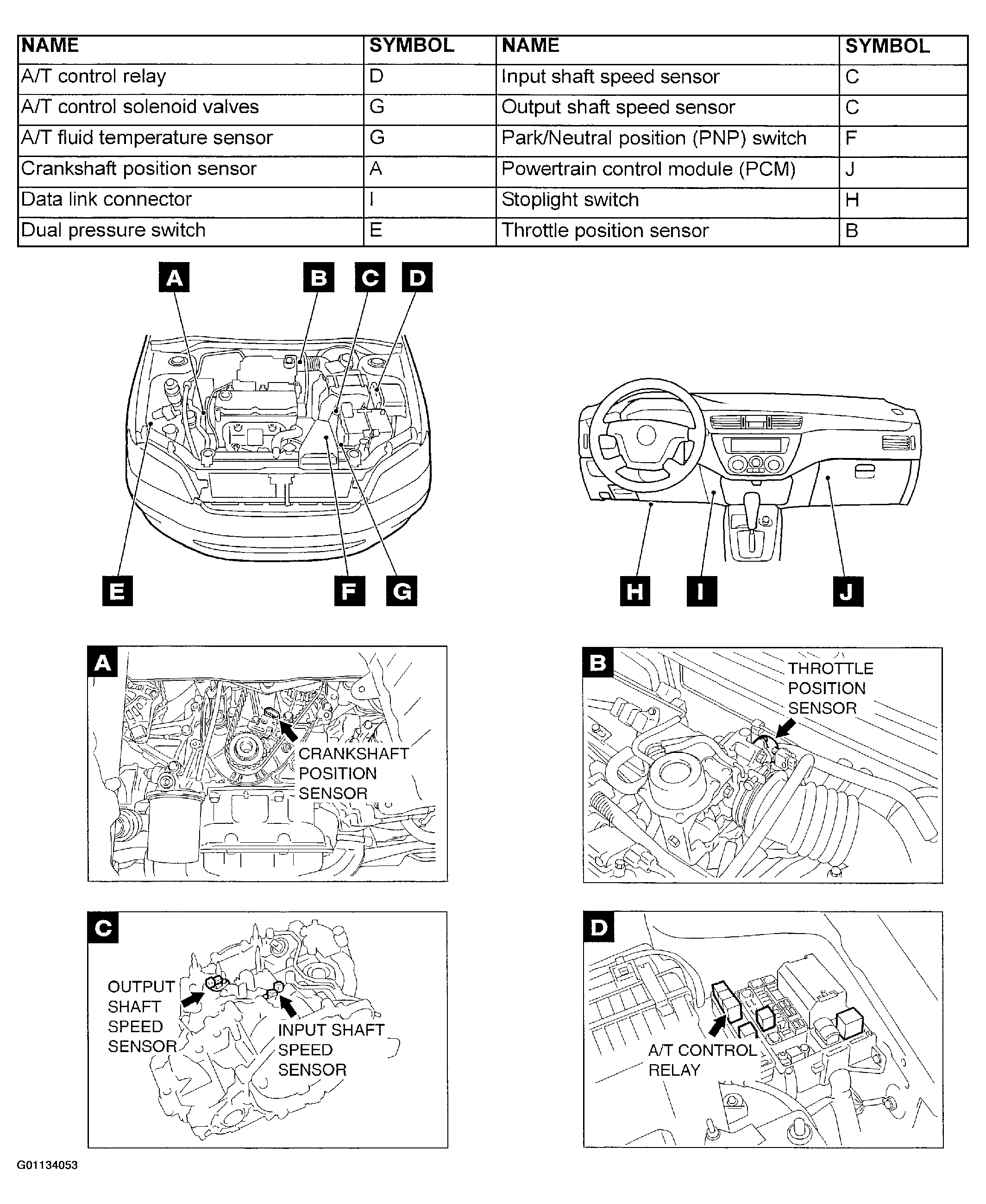

Fig 1: Locating Auto Transaxle Components (1 Of 2)
G01134053Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

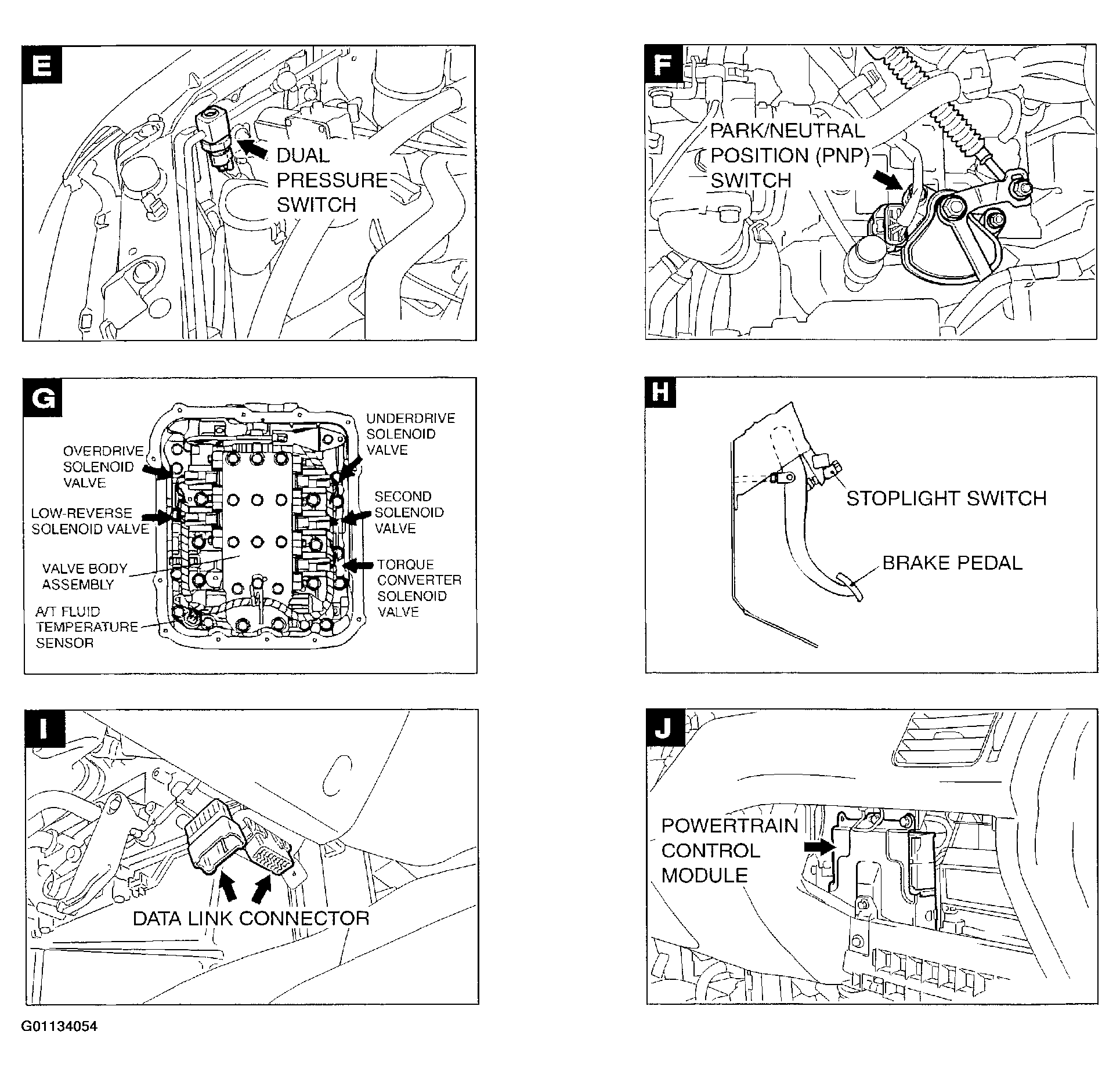

Fig 2: Locating Auto Transaxle Components (2 Of 2)
G01134054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
