Spring And Steel Ball Installation

Install the three steel balls and two springs to the inside valve body as shown.

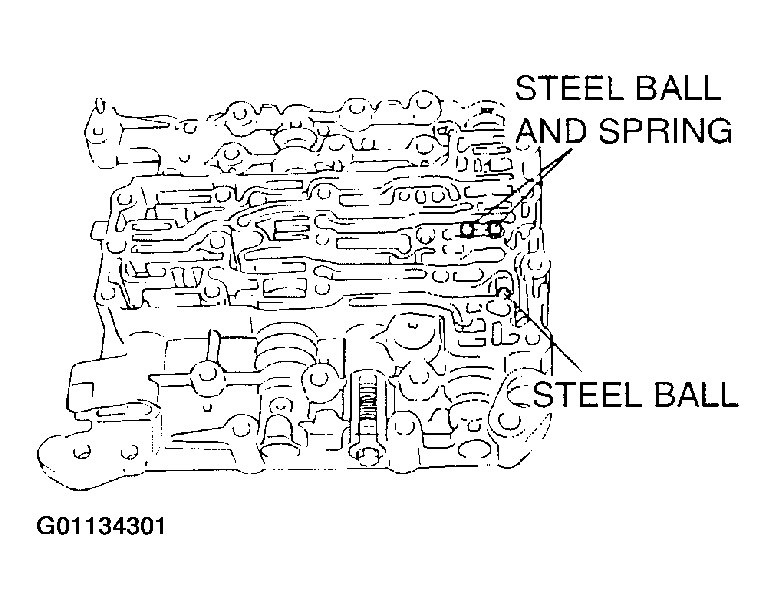

Fig 1: Installing Steel Balls & Springs

G01134301

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
