Hydraulic Circuit

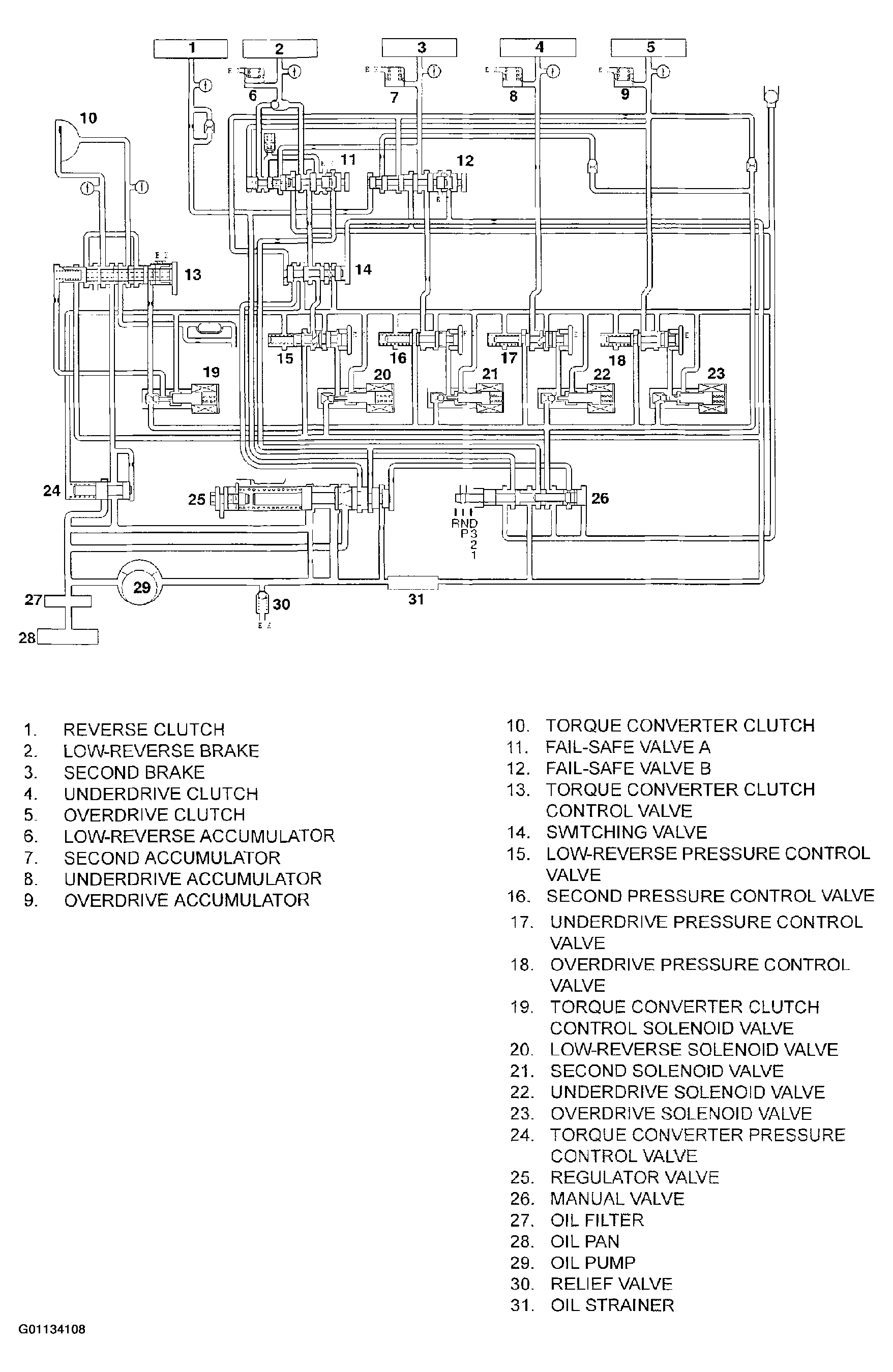

Fig 1: Identifying Hydraulic Circuit

G01134108

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
