Shock Absorber

WARNING: This page is about a different car, the 2002 Mitsubishi Montero Sport. However, it is still accessible from the selected car via links, so may be relevant.

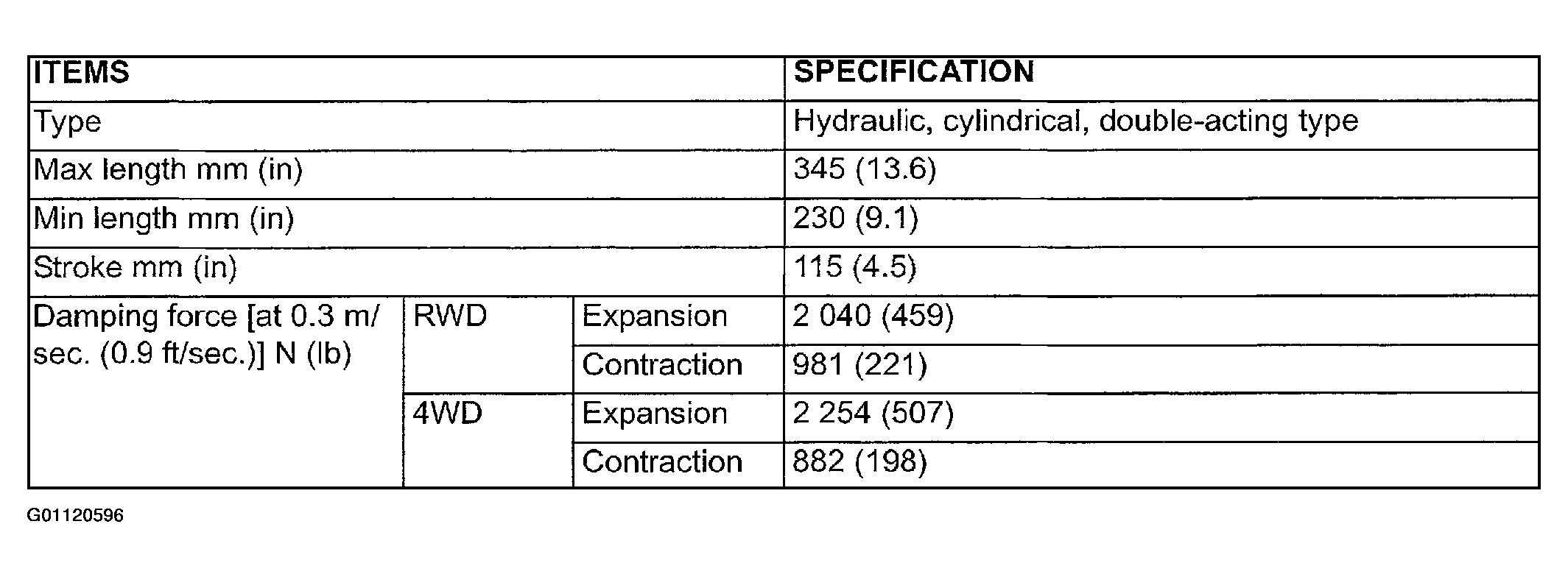

Fig 1: Shock Absorber Specifications
G01120596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
