DTC P0325: Knock Sensor Circuit: Notes

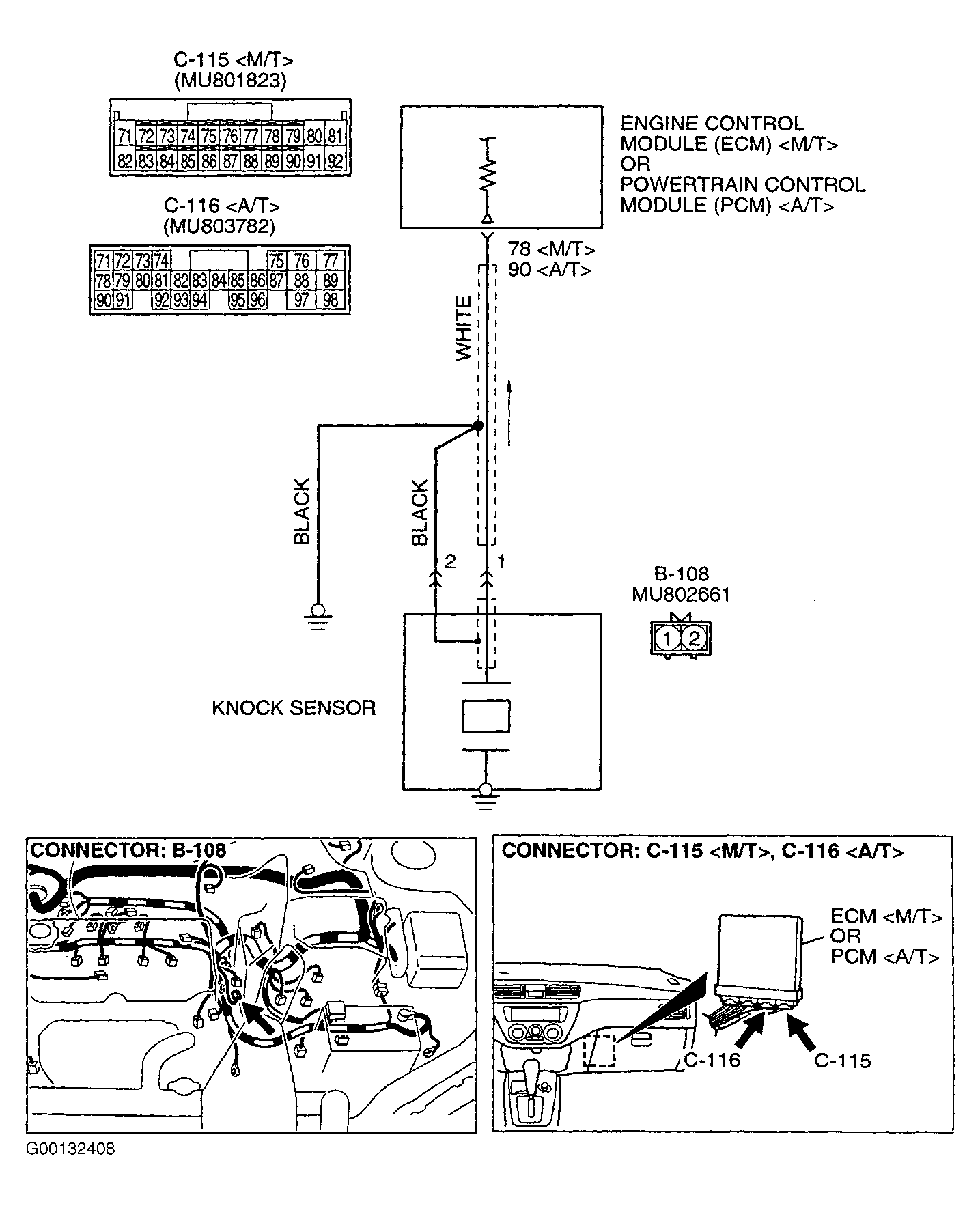

Fig 1: Identifying Knock Sensor Circuit, Component & Connector Location
G00132408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
