Home >> Mitsubishi >> 2002 >> Lancer LS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0101: Volume Airflow Circuit Range/Performance Problem >> Notes

DTC P0101: Volume Airflow Circuit Range/Performance Problem: Notes

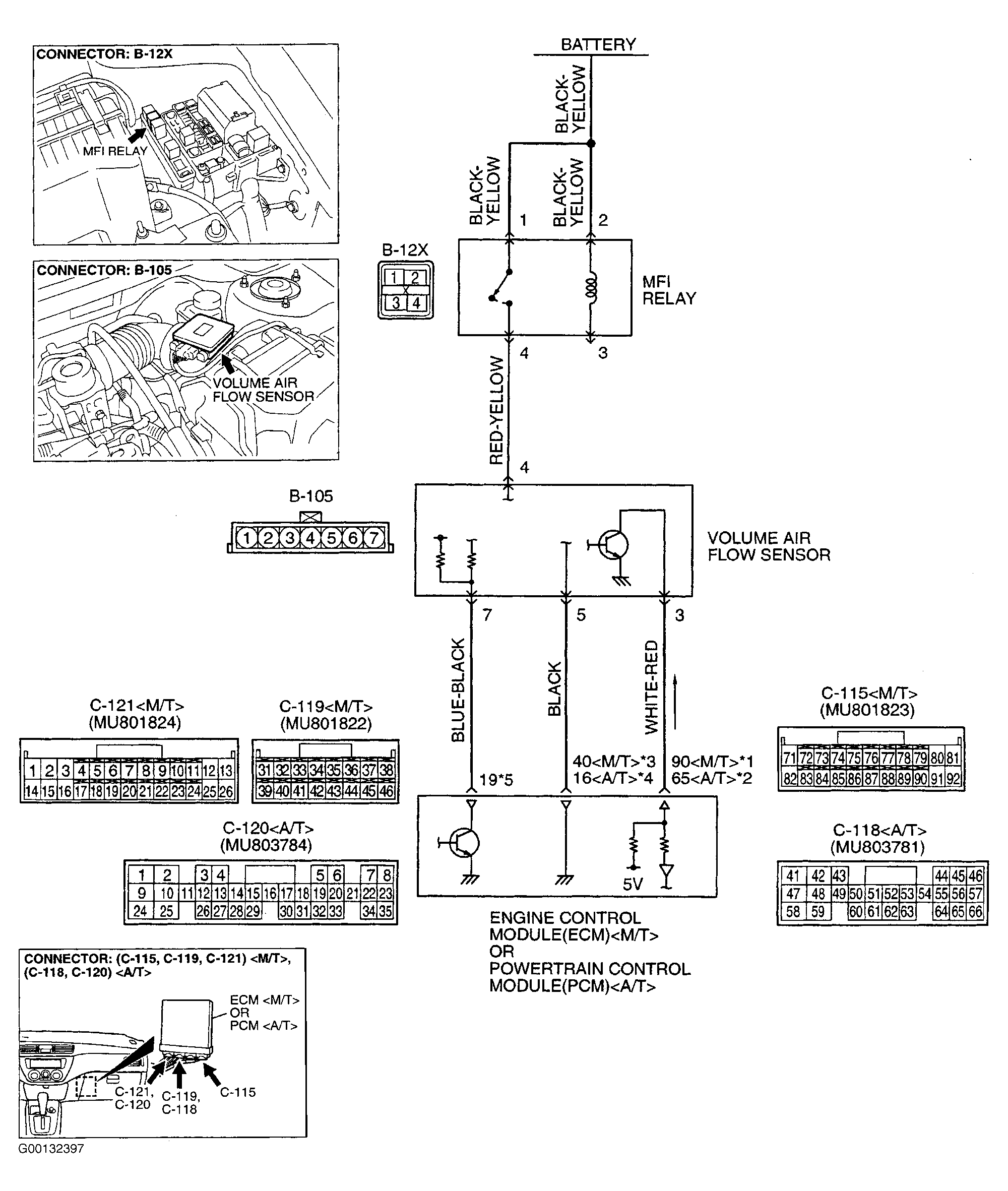

Fig 1: Identifying Volume Airflow Circuit, Component & Connector Location

G00132397

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
