Component Locations

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 10 .

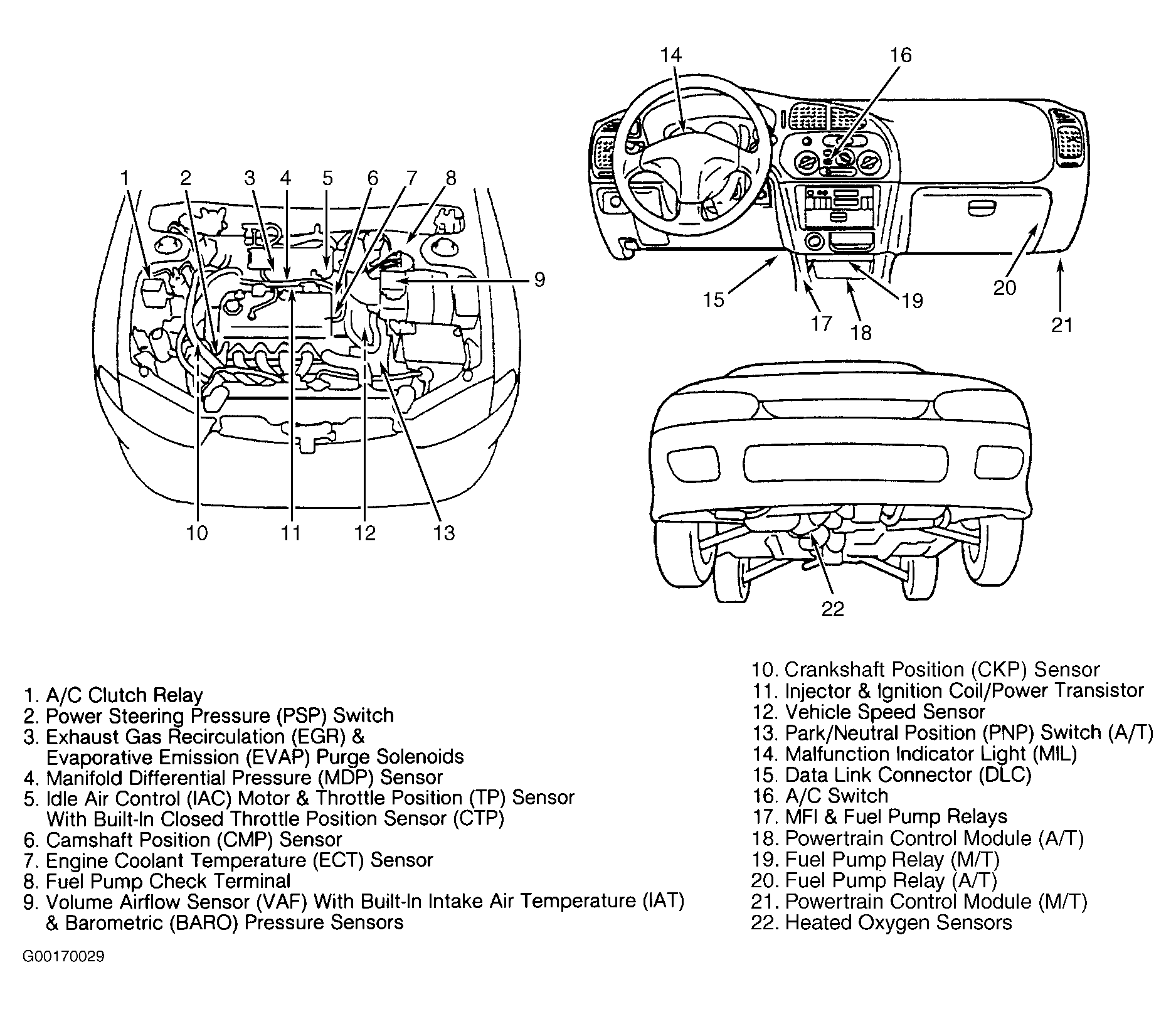

Fig 1: Locating Engine Performance-Related Components (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Engine Performance-Related Components (Eclipse 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Engine Performance-Related Components (Eclipse 3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Engine Performance-Related Components (Galant 2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating Engine Performance-Related Components (Galant 3.0L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Locating Engine Performance-Related Components (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating Engine Performance-Related Components (Mirage 1.5L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Locating Engine Performance-Related Components (Mirage 1.8L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 9: Locating Engine Performance-Related Components (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Locating Engine Performance-Related Components (Montero Sport)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
