Removal And Installation: Notes
CAUTION:
*:Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

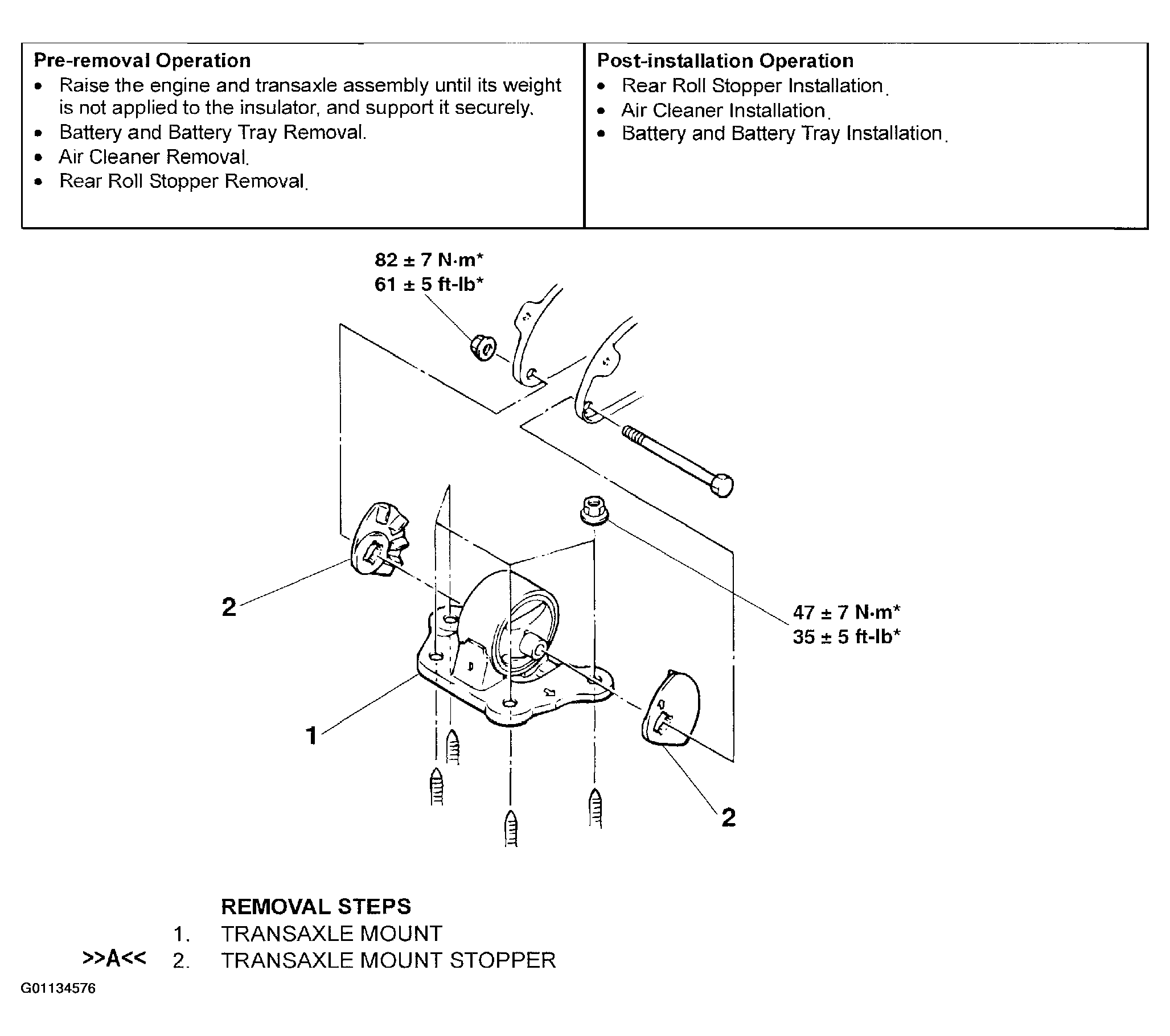

For transaxle mounting removal procedures, follow numbered steps in illustration. See Fig 1. For transaxle mounting installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing transaxle mounting. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINT .
