Removal And Installation
CAUTION:
*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

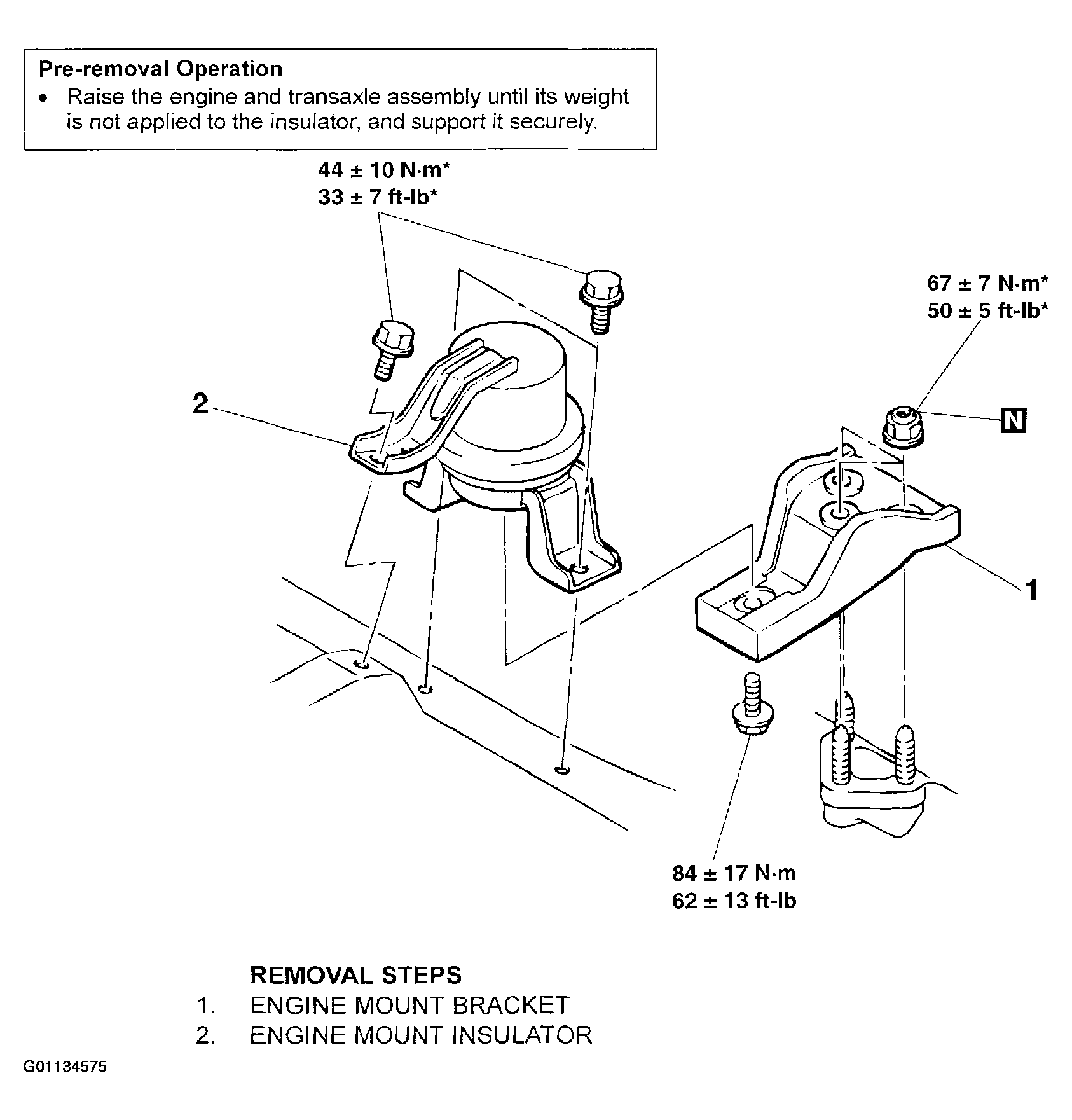

For engine mounting removal procedures, follow numbered steps in illustration. See Fig 1. For engine mounting installation procedures, follow numbers steps in illustration in reverse order.
