Removal And Installation: Notes
CAUTION:
- Before removing the steering wheel and air bag module assembly, always refer to GROUP 52B - Service Precautions, Air bag Module and Clock Spring. Also, set the front wheels so that they are facing straight forward, and remove the ignition key. If you fail to do this, the SRS clock spring will be damaged, causing the SRS air bag to be inoperative and serious injury.
- *1: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
- *2: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

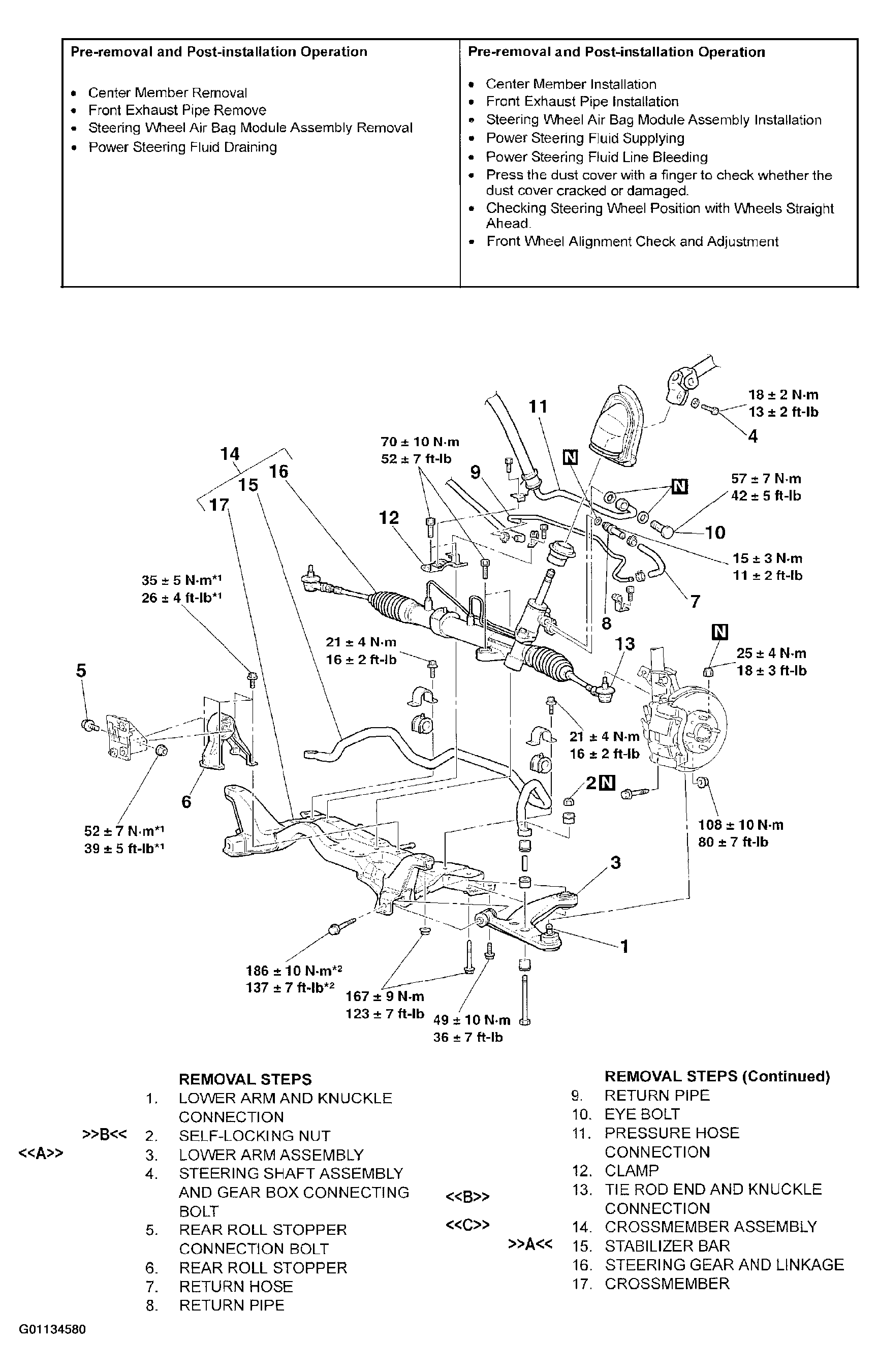

For crossmember removal procedures, follow numbered steps in illustration. See Fig 1. For crossmember installation procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while removing and installing crossmember. Letters with arrows pointing away from letter refer to service points to be observed while performing that step of the removal procedure. See REMOVAL SERVICE POINTS . Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the installation procedure. See INSTALLATION SERVICE POINTS .
